Summary of Contents for Huchez HN15000IY1D

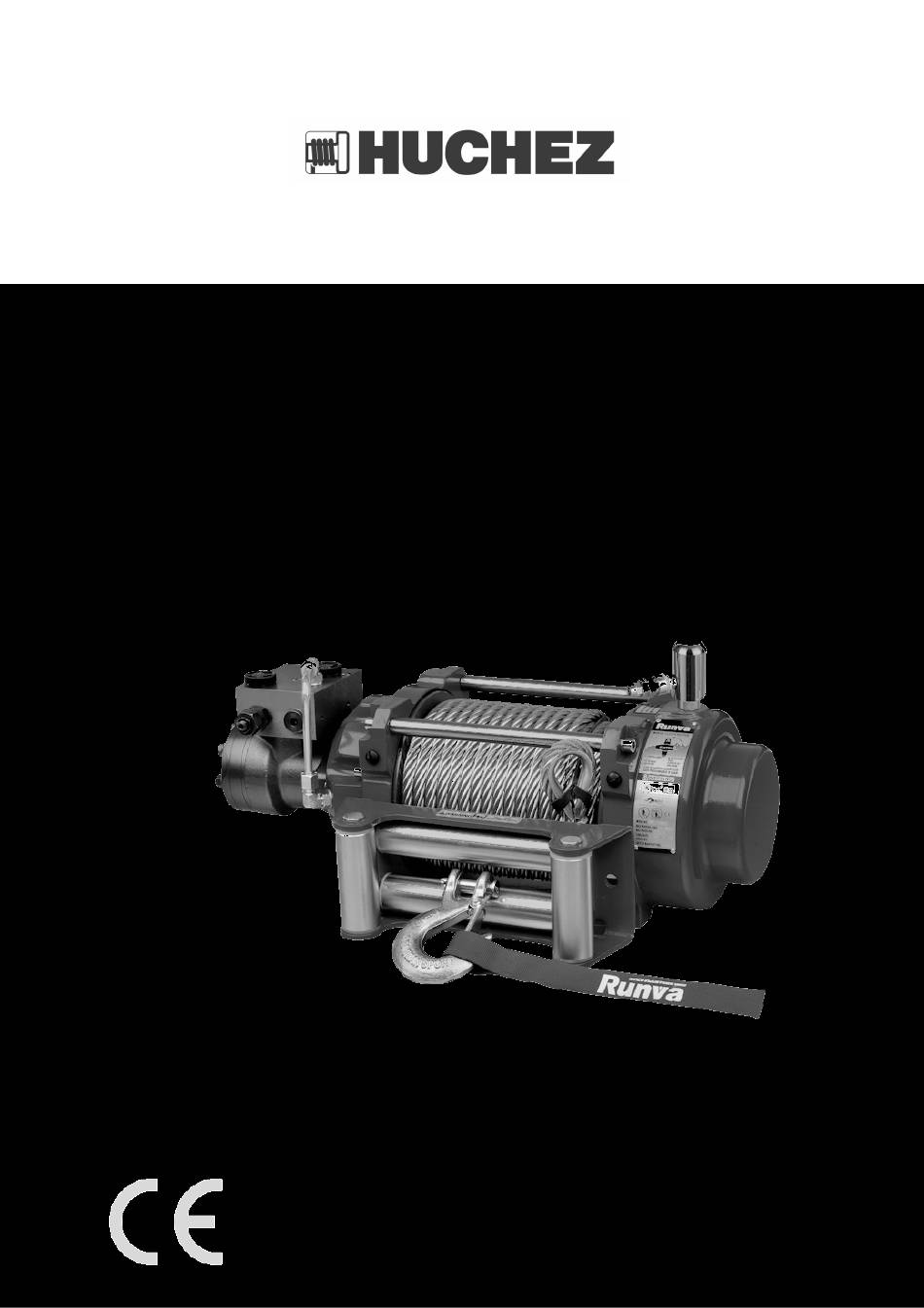

- Page 1 FR - FRANÇAIS - 09/2019 MANUEL D’UTILISATION USER MANUAL HYDRAULIC WINCHES HN15000IY1D Capacity: 6800 kg ...
-
Page 2: Table Of Contents
EN - ENGLISH – 014/2024 CONTENTS 01. I ........................ 3 NTRODUCTION 02. G ................... 4 ENERAL SAFETY INFORMATION 03. W ........................5 ARRANTY 04. R ..................... 5 ECEIPT OF EQUIPMENT 05. U ......................5 SAGE RESTRICTIONS 06. E ....................7 QUIPMENT INFORMATION 07. -
Page 3: Introduction
Please, do not hesitate to contact your RUNVA distributor if you wish to obtain more information: 4, rue Michel Hammid 60420 FERRIERES (France) : contact@huchez.fr : 03 44 51 11 33 WARNING Please read, study and follow all instructions before using this equipment. -
Page 4: General Safety Information
The use of winches requires strict compliance with the relevant health and safety practices in the country in which the winch is used. HUCHEZ does not accept any responsibility for consequences resulting from the use or installation of devices not covered in this manual, nor does HUCHEZ accept any responsibility for the consequences of disassembly, modification or replacement of original parts or components with third-party parts or components without HUCHEZ’s written consent. -
Page 5: Warranty
EN - ENGLISH – 014/2024 WARRANTY These hydraulic winches are covered by a 1-year warranty, starting from the date of shipment (from the factory). This warranty does not cover any wear or damage resulting from a lack of regular maintenance. It also does not cover damage due to a lack of supervision, incorrect operation or improper use of the device, in particular as a result of overloading, pulling diagonally, incorrect supply voltages or faulty connections. - Page 6 EN - ENGLISH – 014/2024 moving parts. It is recommended that non-conductive protective clothing and non-slip shoes be worn when using the winch. Long hair should be tied back. Protect the eyes and ears. Always wear anti-shock safety goggles. • •...
-
Page 7: Equipment Information
EN - ENGLISH – 014/2024 Turn off using the start/stop switch. Disconnect the power supply when the device is not in use. • Replacement parts and accessories. Only use identical replacement parts when servicing this device. • The use of any other parts will void the warranty. CAUTION If the motor stalls, do not continue to apply power to the winch. - Page 8 We recommend that you use a double line and a pulley block when pulling more than 70% of the rated pulling load. 6.2. Technical specifications Ref. HN15000IY1D Rated force 6 804 kg Motor displacement...
-
Page 9: Mounting - Installation
EN - ENGLISH – 014/2024 6.3. Dimensions HN15000IY1D MOUNTING - INSTALLATION Accessories you will need which are not included with the winch: Gloves for handling the cable and hook safety strap. • Anchoring sling/chain. • Blanket to throw over the cable to absorb the energy if the cable breaks. - Page 10 EN - ENGLISH – 014/2024 7.1. Diagram of the hydraulic principle of the equipment and installation diagram (Y1D) Translation of original instructions Reproduction is prohibited...
- Page 11 EN - ENGLISH – 014/2024 7.2. Mounting the winch 1. The winch is designed with a standard bolt pattern for this class of winch. Many winch mounting kits use this bolt pattern for common vehicles and mounting plates. If you cannot find it, please do not hesitate to contact us.
- Page 12 EN - ENGLISH – 014/2024 7.4. Electrical connections If the winch power supply is taken from the vehicle's power steering pump, the solenoid valve should be installed by default on the power steering housing so that the power steering can still function even when the winch is in use.
- Page 13 EN - ENGLISH – 014/2024 The hydraulic control valves are essential components for optimal performance of the system. They regulate the flow and pressure of the hydraulic oil in the hoses by maintaining consistent speed and pressure. The flow control valves regulate the flow of oil from the pump to the cylinders and motors. Their main function is to regulate the flow and direct oil towards a specific part of the hydraulic circuit.
-
Page 14: Commissioning-Usage
EN - ENGLISH – 014/2024 ENGAGED/ DISENGAGED/ CAUTION 1. Permanently engaged. If disengaged, the pressure in the winch must be between 87 and 130 psi. 2. The pressure must not fall below 87 psi. 3. Do not disengage when the winch is loaded and in operation. The hydraulic circuit must be fitted with a pressure relief valve to ensure the safety of the system. - Page 15 EN - ENGLISH – 014/2024 WARNINGS 1. Ensure that the gearbox is completely disengaged before starting to use the winch; 2. Keep away from raised loads; 3. Keep away from the cable when pulling and do not try to guide the cable; 4.
- Page 16 EN - ENGLISH – 014/2024 8.1. Winch cable techniques Auto-recovery Identify a suitable anchor point. When choosing an anchor point, choose a strong, firm point such as a tree trunk or rock. Always use a sling as an anchor. CAUTION Do not attach the hook to the cable as shown NOT CORRECT CORRECT in Fig.
- Page 17 EN - ENGLISH – 014/2024 8.2. Operating the winch Preparation before winching 1. Take some time to assess the situation and prepare your winching operation appropriately. 2. Wear gloves to protect your hands. 3. Disengage the clutch by turning the switch to the DISENGAGE position. This will allow the cable to unwind freely and will save energy.
-
Page 18: Maintenance
EN - ENGLISH – 014/2024 MAINTENANCE 9.1. Winch All of the winch’s moving parts have been lubricated in the factory using a high-temperature lithium-based grease. No internal lubrication is required. 9.2. Cable Grease the cable periodically using a fluid and penetrating oil. If the cable is worn or begins to show signs that it might break, it must be replaced before using the winch. -
Page 19: Spare Parts
EN - ENGLISH – 014/2024 SPARE PARTS If you notice during maintenance tasks that certain parts of your winch need replacing, only original parts from the manufacturer should be used. When ordering spare parts, please provide the following information: • The type and force rating of the winch. •... -
Page 20: Ec Declaration Of Conformity
EN - ENGLISH – 014/2024 EC DECLARATION OF CONFORMITY Translation of original instructions Reproduction is prohibited... -
Page 21: Exploded View Drawings
EN - ENGLISH – 014/2024 EXPLODED WIEW DRAWINGS HN15000IY1D Translation of original instructions Reproduction is prohibited... - Page 22 EN - ENGLISH – 014/2024 N° Part N° Description HN1000001 Washer Ø 14 HN10500002 High pressure oil tube HN1000003 Oil connection HN1000004 Screw M12×30 HN1000005 Lock washer Ø12 HN1000006 Blanced valve HN1000007 Cap screw M8 x 55 HN1000008 Lock washer Φ8 HN1500100 Hydraulic motor HN1000009...
- Page 23 EN - ENGLISH – 014/2024 Translation of original instructions Reproduction is prohibited...
- Page 24 EN - ENGLISH – 014/2024 ...
