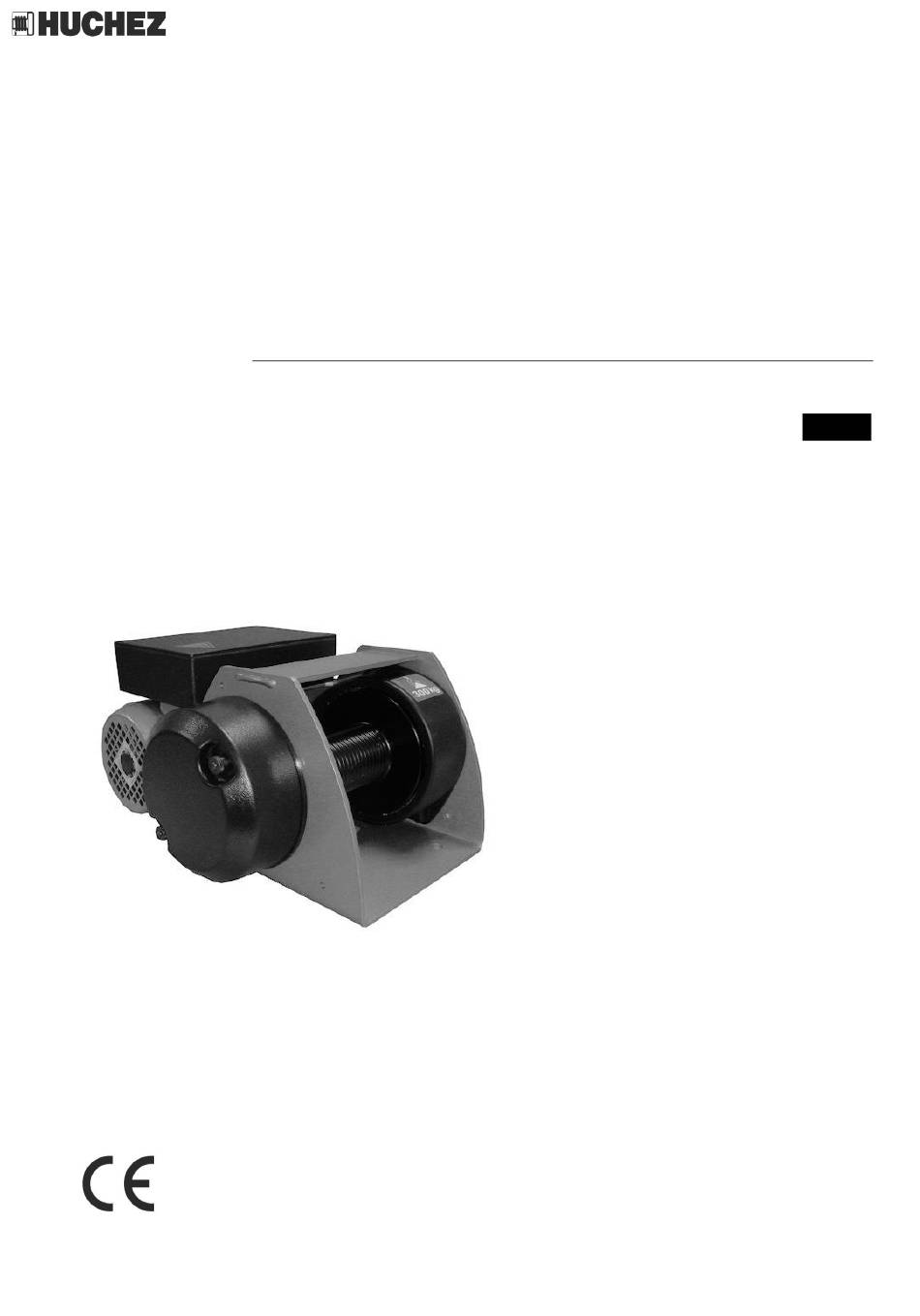

- Page 1 © 2021 by Huchez Treuils S.A.S. Electric winch Electric winches AGON 300 kg Instruction manual _________________________ 253.112.20...
-
Page 2: Table Of Contents
2021 by Huchez Treuils S.A.S. To ensure the constant improvement of its products, HUCHEZ reserves the right to change the equipment as described below and, in this case, to supply products which differ from the illustrations in this instruction manual. -
Page 3: Safety Instructions
The data concerning the resistance of the steel rope and its fastenings to heat must be available on request from the manufacturer and must be respected. HUCHEZ accepts no liability for the consequences resulting from the use or installation of equipment not provided for in the present instructions or for the consequences of disassembly, modifications or replacement of original parts or components with parts or components from other sources without the written agreement of HUCHEZ. -
Page 4: Warranty
© 2021 by Huchez Treuils S.A.S. In addition to the above instructions, we must warn you against all incorrect use or handling listed below. It is dangerous and prohibited to: unwind the drum completely (retain 2 to 3 residual windings). -
Page 5: Obligatory Regulatory Checks By The User
The English version of the maintenance booklet for our lifting winches can be downloaded from our website www.huchez.fr/ uk under the heading "After sales services”. A copy is however proposed in the annexes of this manual. -
Page 6: Dimensions
© 2021 by Huchez Treuils S.A.S. 6.2 - Dimensions AGON 300 Ø H Ø J 63.5 Ø K 118.5 Cable outlet range Translation of the original instructions Reproduction prohibited... -
Page 7: Models Available
© 2021 by Huchez Treuils S.A.S. 6.3 – Models available Reference AGON 300 BT 5 Force on the 1st layer kg Force on the upper layer kg No. of layers Rope cap. on the 1st layer m * Rope cap. on the upper layer m * Rope Speed on the 1st layer m/min. -
Page 8: Handling - Storage
© 2021 by Huchez Treuils S.A.S. FEM classification AGON 300 Usage rate Average operating time per day in hours. 7’30’’ 15’ 30’ Light 1 Dm 1 Dm 1 Dm 1 Cm Medium 1 Dm 1 Dm 1 Cm 1 Bm... -
Page 9: Rope Outlets
© 2021 by Huchez Treuils S.A.S. 8.3 – Rope outlets 8.4 – Power supply Before undertaking any operation on the electrical assembly, check that the power supply to the machine is off. A disconnecting switch must be placed no more than 10 metres from the place of use. -
Page 10: Work Rope
© 2021 by Huchez Treuils S.A.S. 8.5 - Work rope Reminder: Check the maximum capacity of the winch Very important: The safety regulations require that 2 to 3 loops of rope always be left on the drum. To comply with the legislation, the rope diameter must not exceed the recommended diameter. - Page 11 © 2021 by Huchez Treuils S.A.S. Unwinding the rope from its reel: CORRECT: INCORRECT 8.5.1. Fastening the rope Refer to the photos below. AGON 300 kg If necessary, open the limit switch cover Untighten the nuts Insert the end of the rope through the rope clamp and into the drum Tighten the screws...
- Page 12 © 2021 by Huchez Treuils S.A.S. The first layer must be wound in a compact manner and under tension. Take a mallet or a block of wood and knock the turns against one another; not too hard to prevent the strands from overlapping one another, but tightly enough to prevent the rope from moving on the drum.
- Page 13 © 2021 by Huchez Treuils S.A.S. 8.5.4. Deflection angle Grooved drum: = max. 2° D = 20 times L Pulley Pulley As L = 124 mm D = 2.48 m 2° 2° INCORRECT CORRECT 8.5.5. Rope tensioner The rope tensioner provides residual tension in the rope. In combination with a limit switch adjustment, this system prevents the rope from riding on the drum after the load has been applied but not removed.
-
Page 14: Servicing And Maintenance
© 2021 by Huchez Treuils S.A.S. C. Adjusting the spring tension D. Limit switch adjustment Measure and take a mark 200mm above the To adjust the limit switch at the bottom, the top. Slide the upper part to the mark and spring must not have its coils touching each tighten the screws to complete the installation. -
Page 15: Taking Out Of Use
© 2021 by Huchez Treuils S.A.S. Hooks Check the hook and its safety latch If the rope and hook are not supplied by the manufacturer, check that the parts used guarantee a level of safety corresponding to table §4.4. Check the fastening points of the reeving on a regular basis. -
Page 16: Spare Parts
2021 by Huchez Treuils S.A.S. 11 – Spare parts If, during maintenance operations, you notice that certain parts of your winch need to be replaced, use HUCHEZ original parts only. For all spare parts orders, please indicate the following specifications on your order ... -
Page 17: Declaration Of Ec Conformity
© 2021 by Huchez Treuils S.A.S. 13 – Declaration of EC conformity Translation of the original instructions Reproduction prohibited... -
Page 18: Annexes
© 2021 by Huchez Treuils S.A.S. 14 – Annexes A – Part references . Limit switch . AGON 300 kg B – Electrical diagrams C - Limit switch adjustment D – Booklet maintenance. Translation of the original instructions Reproduction prohibited... -
Page 19: A - Part References
© 2021 by Huchez Treuils S.A.S. Part references LIMIT SWITCH (SE n°39) Article Part Description Article Part Description number number 2965 M3 x 30 MF spacer stud 23211 M1 17-tooth sprocket wheel 3683 Contactor 23212 M1 48-tooth sprocket wheel 4909... -
Page 20: Agon 300 Kg
© 2021 by Huchez Treuils S.A.S. AGON 300 kg Art. Part Description Art. Part number Description number 2510 Bearing 6004 2RS NR 24267 29-tooth sprocket wheel 2776 Bushing QFM 2528-21 24268 69-tooth wheel 2889 Bushing QSM 2528-25 24259 Bearing spacer... -
Page 21: B - Electrical Diagrams
© 2021 by Huchez Treuils S.A.S. B – Electrical diagram AGON 300 kg - Low voltage control with limit switches Translation of the original instructions Reproduction prohibited... -
Page 22: C - Limit Switch Adjustment
© 2021 by Huchez Treuils S.A.S. Limit switch adjustment. Down 1) Lift the load to the top point and identify the lever (A or B) that is nearest the stop (S). 2) Push this lever (A or B) onto the stop (S) 3) Lower the load to the bottom point. -
Page 23: D - Maintenance Booklet
© 2021 by Huchez Treuils S.A.S. Maintenance booklet. – The English version of the maintenance booklet for our lifting winches can be downloaded from our website www.huchez.fr/uk under the heading "After sales services”. Translation of the original instructions Reproduction prohibited... - Page 24 © 2011 by Huchez Treuils S.A.S. Translation of the original instructions Reproduction prohibited...
