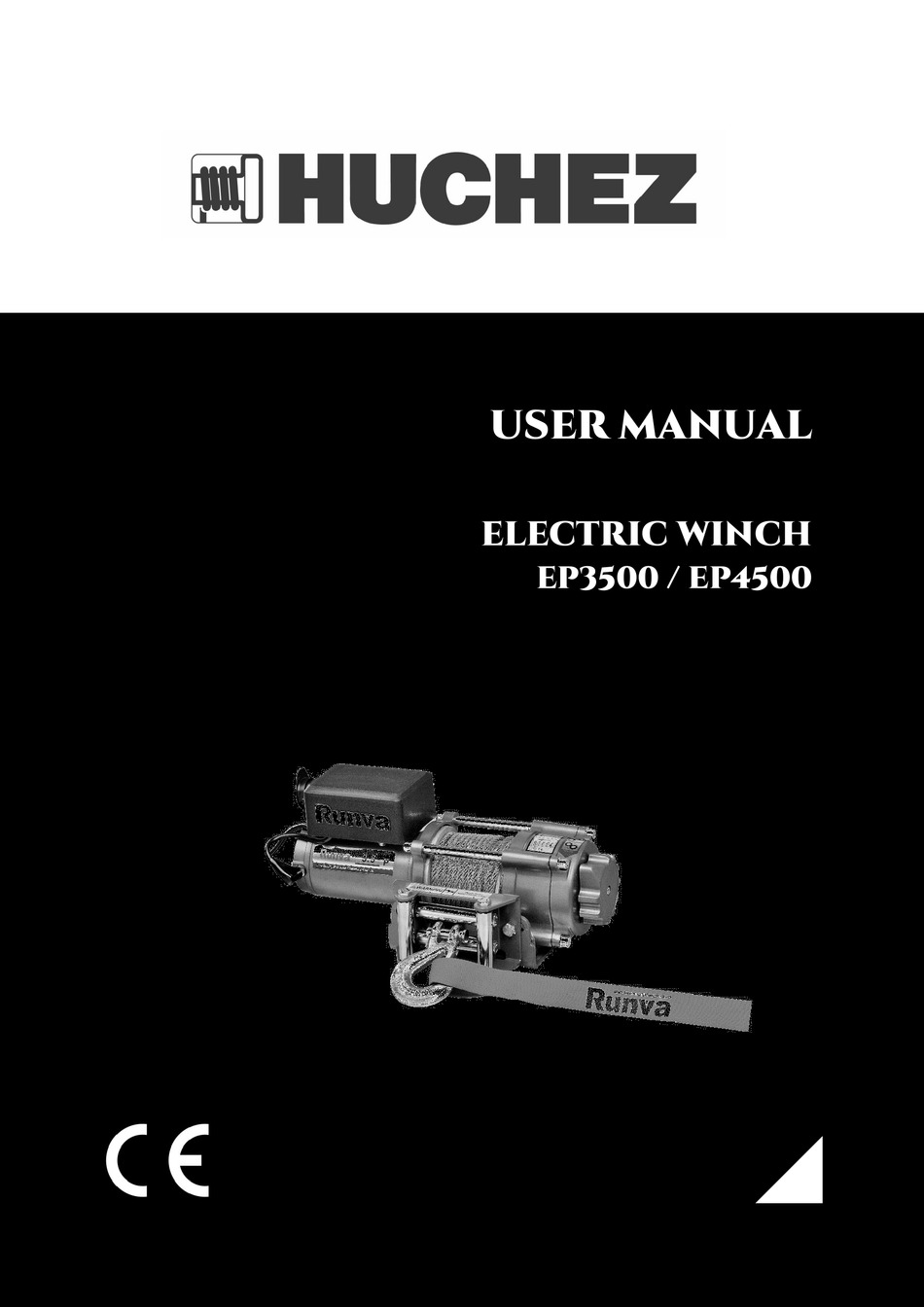

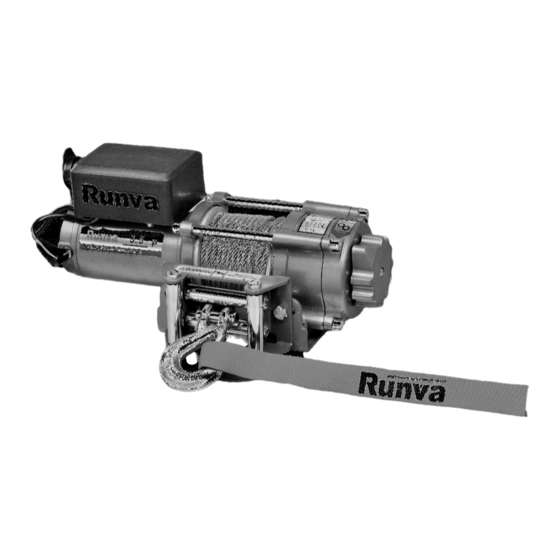

- Page 1 EN - ENGLISH - 09/2019 USER MANUAL USER MANUAL ELECTRIC WINCH EP3500 / EP4500 Translation of original instructions Reproduction is prohibited...
- Page 2 EN - ENGLISH - 09/2019...
-
Page 3: Table Of Contents
Please, do not hesitate to contact your RUNVA distributor if you wish to obtain more information: 4, rue Michel Hammid 60420 FERRIERES (France) :contact@huchez.fr : 03 44 51 11 33 WARNING Please read, study and follow all instructions before using this equipment. -
Page 4: General Safety Information
The use of winches requires strict compliance with the relevant health and safety practices in the country in which the winch is used. HUCHEZ does not accept any responsibility for consequences resulting from the use or installation of devices not covered in this manual, nor does HUCHEZ accept any responsibility for the consequences of disassembly, modification or replacement of original parts or components with third-party parts or components without HUCHEZ’s written consent. -
Page 5: Warranty
EN - ENGLISH - 09/2019 This device is subject to European regulations and in particular to Machinery Directive 2006/42/EC and European Standard EN 14492/1. ANY APPLICABLE REQUIREMENTS AND REGULATIONS IN YOUR COUNTRY MUST ALSO BE COMPLIED WITH. WARRANTY These electric winches are covered by a 1-year warranty, starting from the date of shipment (from the factory). -
Page 6: Usage Restrictions
EN - ENGLISH - 09/2019 USAGE RESTRICTIONS WARNINGS • Do not exceed the rated load capacity indicated in this manual. • Intermittent use only. Allow the winch to cool between each use. • Do not use the winch to lift a load (vertically). •... -
Page 7: Equipment Information
EN - ENGLISH - 09/2019 • Never attach the cable to itself. When the vehicle is on a slope, apply chocks to the wheels. When pulling a load, the winch should be run for the shortest time possible. If the motor becomes too hot to touch, stop winching immediately and allow the motor to cool for a few minutes. - Page 8 EN - ENGLISH - 09/2019 7. A braking action is automatically applied to the drum when the motor is stopped and the cable is loaded. The braking action is complemented by a separate mechanical brake. 8. This winch has been designed to be used for multiple winching operations. It can be operated via a wired or wireless remote control.
- Page 9 EN - ENGLISH - 09/2019 Table of cable capacity per layer: Ref. EP3500U EP4500U Cable drum capacity Rated Force Layer Rated Force (kg) Cable drum capacity (m) (kg) 1,588 2,041 1,265 1,742 1,052 1,501 12.8 1,319 14.5 12.8 6.3. Dimensions EP3500U EP4500U Translation of original instructions...
-
Page 10: Mounting - Installation
EN - ENGLISH - 09/2019 MOUNTING - INSTALLATION Accessories you will need which are not included with the winch: • Gloves for handling the cable and hook safety strap. • Anchoring sling/chain. • Blanket to throw over the cable to absorb the energy if the cable breaks. 1. - Page 11 EN - ENGLISH - 09/2019 Translation of original instructions Reproduction is prohibited...
-
Page 12: Commissioning - Usage
EN - ENGLISH - 09/2019 COMMISSIONING - USAGE Do not use this equipment without having first fully read and understood the user manual. Failure to pay attention to these instructions whilst using this equipment poses a risk to your safety. Before using the equipment, please, observe and apply the following safety instructions: •... - Page 13 EN - ENGLISH - 09/2019 8.1. Winch cable techniques Auto-recovery Identify a suitable anchor point. When choosing an anchor point, choose a strong, firm point such as a tree trunk or rock. Always use a sling as an anchor. CAUTION NOT CORRECT CORRECT Do not attach the hook to the cable as shown in Fig.
- Page 14 EN - ENGLISH - 09/2019 Preparation before winching Take some time to assess the situation and prepare your winching operation appropriately. Wear gloves to protect your hands. Disengage the clutch by turning the switch to the DISENGAGE position. This will allow the cable to unwind freely and will save energy.
-
Page 15: Maintenance
EN - ENGLISH - 09/2019 24. Secure the hook and the safety strap. 25. Unplug the remote control and store it in a suitable, dry place. 26. Clean and inspect the connections and mounting equipment for the next winching. MAINTENANCE 9.1. -
Page 16: Decommissioning
EN - ENGLISH - 09/2019 DECOMMISSIONING If the equipment is in a condition which is likely to be hazardous, the user is obliged to ensure that the equipment is disposed of by decommissioning it and, where necessary, dismantling it. SPARE PARTS If you notice during maintenance tasks that certain parts of your winch need replacing, only original parts from the manufacturer should be used. -
Page 17: Troubleshooting
EN - ENGLISH - 09/2019 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION The motor does - The remote control is - Reconnect the remote control correctly. not start not connected correctly - The battery - Tighten the nuts on all cable connections. connections are not tight enough - Replace the remote control. -
Page 18: Ec Declaration Of Conformity
EN - ENGLISH - 09/2019 EC DECLARATION OF CONFORMITY Translation of original instructions Reproduction is prohibited... -
Page 19: Exploded-View Drawings
EN - ENGLISH - 09/2019 EXPLODED-VIEW DRAWINGS EP3500 Translation of original instructions Reproduction is prohibited... - Page 20 EN - ENGLISH - 09/2019 Part No. Description P0350100-U Motor assembly Lock washer Φ8 P0250001 P0250002 Assembly screw, M8x15 P0250003 Transition shaft P0250004 Coupling rod P0250005 Hexagonal shaft P0250006 Bushing, pre-drum Spring washer Φ6 P0250007 P0250008 Screw, M6x8 P0250009 Assembly screw M6x70 P0250010 Drum P0250011...
- Page 21 EN - ENGLISH - 09/2019 EP4500 Translation of original instructions Reproduction is prohibited...
- Page 22 EN - ENGLISH - 09/2019 Part No. Description P0450001 Terminal protectors P0450100-U Motor assembly P0450002 Screw M4x15 Lock washer Φ4 P0450003 P0450004 Tie rod Coupler Ⅰ P0450005 P0450006 Spring Coupler Ⅱ P0450007 P0450008 Spring P0450009 Bearing P0450010 Hexagonal shaft P0450011 Screw, M6x8 P0450200 Drum...
- Page 23 EN - ENGLISH - 09/2019 Translation of original instructions Reproduction is prohibited...
- Page 24 ...
