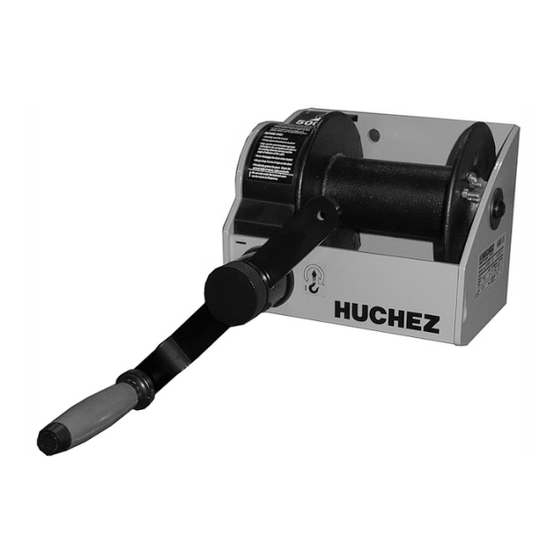

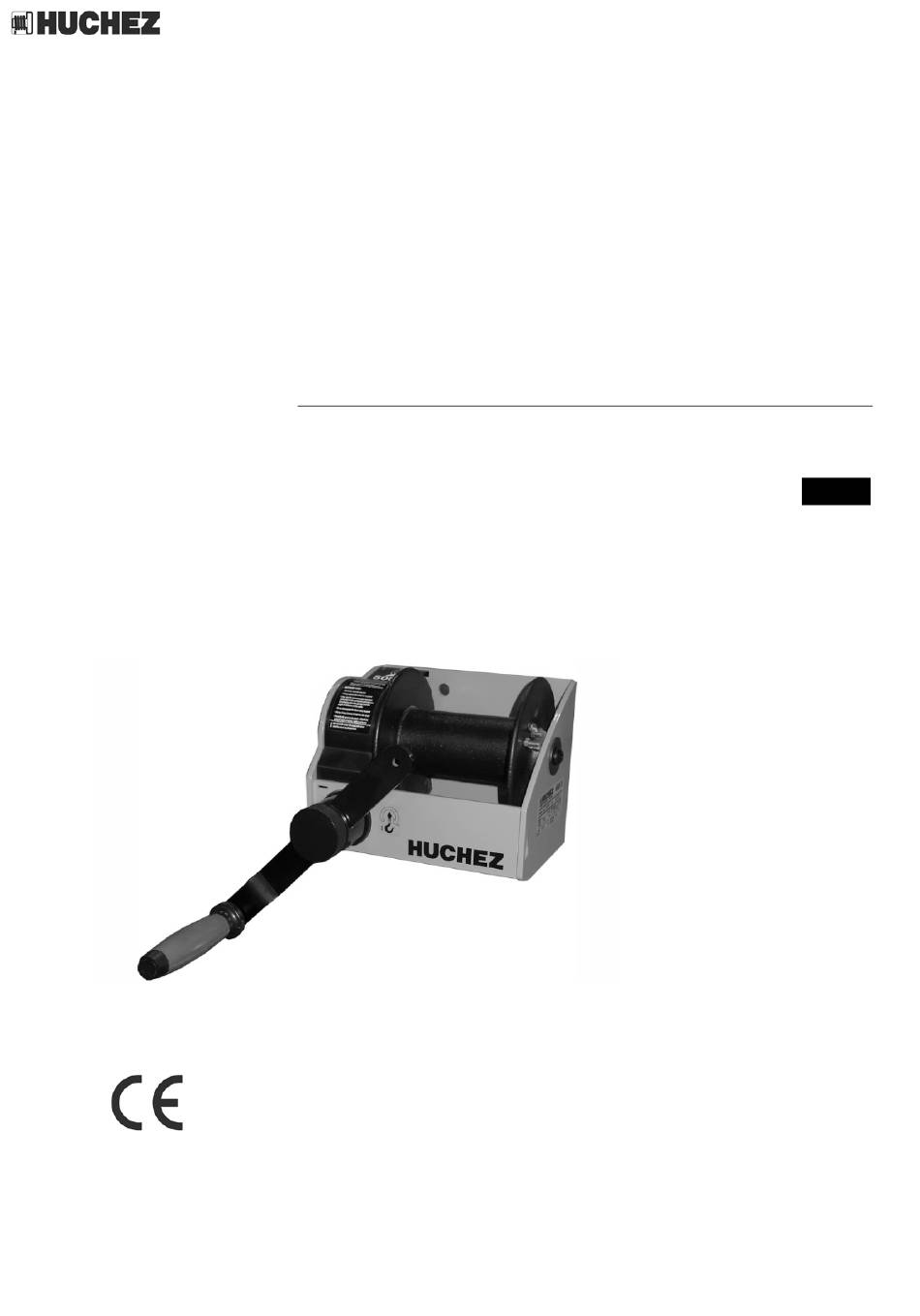

- Page 1 © 2008 by Huchez Treuils S.A.S. Hand wormgear winch Hand winch MANIBOX VS Instruction manual _________________________ 51-314.09/5...
-
Page 2: Table Of Contents
PRODUCT DEVELOPED AND MANUFACTURED ACCORDING TO STANDARD NF EN 13157 INSTRUCTION MANUAL FOR COMMISSIONING AND MAINTENANCE In an endeavour to improve its products, HUCHEZ reserves the right to alter the equipment featured herein and supply it, in this case, different to the illustrations or specifications of these instructions... - Page 3 © 2008 by Huchez Treuils S.A.S. 2.2. Dimensions: VS 250 VS 320 VS 500 VS 750 VS 1000 VS 1450 VS 1500 VS 2000 VS 2500 Direction Direction Type A Type B VS 3000 VS 3500 Capacity Orientation øJ øP...
- Page 4 © 2008 by Huchez Treuils S.A.S. 2.3. Technical features of the different models Wire rope Lift per Capacity Capacity Max. rope Wire rope Weight capacity at Crank crank Model on the 1rst on the last capacity diameter (without rope) the 1rst...
-
Page 5: Handling - Storage
© 2008 by Huchez Treuils S.A.S. 2.6. Operation When operating the crank, depending on the direction of rotation, the load goes up or down. When no more force is exerted on the crank, the brake comes into action and maintains the load in position. - Page 6 © 2008 by Huchez Treuils S.A.S. A device is placed on the drum to ensure correct winding DANGER! If the rope is not wound in the right direction, the brake will not operate In the event of an error, a safety device is provided to prevent incorrect winding of the rope: the operator gets the impression of turning with no load.
- Page 7 © 2008 by Huchez Treuils S.A.S. 4.5. Disengagement VS 1500-VS 2000 / VS 2000-VS 2500 VS 500-VS 750 / VS 1000-VS 1450 VS 3000-VS 3500 To engage VS 500, VS 750, VS 1000 or VS 1450: Engaged Disengaged = drum released...
-
Page 8: Maintenance
© 2008 by Huchez Treuils S.A.S. 5 –Maintenance The delivered winches are ready to be used (after installing the rope if not supplied by the manufacturer). When using for the first time, lubrication is not required as this has been performed in the factory. Nor is any specific check required. -
Page 9: Important Recommendations
© 2008 by Huchez Treuils S.A.S. 7 – Important recommendations Long descents can cause the braking system to overheat and damage it. It is strongly recommended to respect a stopping time of several minutes every 5 metres during the lowering stage. This recommendation mainly affects the 1000, 1450, 2000 and 2500 kg models. -
Page 10: Declaration Of Confirmity
© 2008 by Huchez Treuils S.A.S. 11 – Declaration of confirmity Translation of original manual Reproduction prohibited... -
Page 11: Spare Parts
© 2008 by Huchez Treuils S.A.S. 12 – Spare parts VS 250 kg-VS 320 kg Rep. N° Description Rep. N° Description 22981 Frame 22917 Lock button 22982 Drum 22933 Short crank sub-assembly 22983 Screw 2760 GFM 1214 09 ring 22984... - Page 12 © 2008 by Huchez Treuils S.A.S. VS 500 kg-VS 750 kg Rep. N° Description Rep. N° Description 22991 Frame 22932 26x35x05 spacer 22992 Screw 22933 Short crank sub-assembly 22993 20-tooth gear 2760 GFM 1214 09 ring 22994 Cover 2765 GFM 2528 21 ring...
- Page 13 © 2008 by Huchez Treuils S.A.S. VS 1000 kg- VS 1450 kg Rep. N° Description Rep. N° Description 22751 Frame 22978 12x50x3 washer 22752 Screw 22996 Detent spring 22753 44-tooth gear 2760 GSM 1214 09 ring 22754 VS no. 2 rear bearing...
- Page 14 © 2008 by Huchez Treuils S.A.S. VS 1500 kg- VS 2000 kg Ref. Description Ref. Description 22761 VS 1500 frame 22978 12x50x3 washer 22762 Low-speed shaft 22996 VS click spring 22763 18-tooth pinion 2749 Ring GFM-2033-11 22764 29-tooth gear 2760...
- Page 15 © 2008 by Huchez Treuils S.A.S. VS 2000 kg-VS 2500 kg Description Description 22771 VS 2000 chassis 22979 12x55x5 washer 22772 50-tooth wheel 22996 VS ratchet spring 22773 Disengaging boss 2749 GFM-2003-11 bearing ring 22774 Disengaging pin 2760 GFM-1214-09 bearing ring...
- Page 16 © 2008 by Huchez Treuils S.A.S. VS 3000 kg- VS 3500 kg Description Description 22781 VS 3000 chassis 22917 Locking button 22782 Drum sub-unit 22974 Piles 22783 53-tooth wheel 22979 12x55x5 washer 22784 Intermediate hub 22996 VS ratchet spring 22785...
