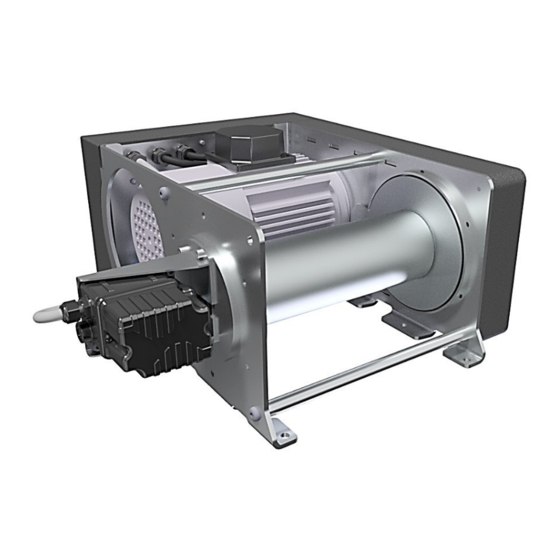

- Page 1 © 2011 by Huchez Treuils S.A.S. Stainless steel electric winch Stainless steel electric winches PRIMO INOX from 250 to 1000 kg Instruction manual ______________________ 245-120.18.1...
-
Page 2: Table Of Contents
2011 by Huchez Treuils S.A.S. To ensure the constant improvement of its products, HUCHEZ reserves the right to change the equipment as described below and, in this case, to supply products which differ from the illustrations in this instruction manual. -
Page 3: Safety Instructions
The data concerning the resistance of the steel rope and its fastenings to heat must be available on request from the manufacturer and must be respected. HUCHEZ cannot accept any liability for the consequences resulting from the use or installation of equipment not provided for in the present instructions or for the consequences of disassembly, modifications or replacement of original parts or components with parts or components from other sources without the written agreement of HUCHEZ. -
Page 4: Warranty
© 2011 by Huchez Treuils S.A.S. Place hands or clothes, etc. in contact with moving parts, in particular the areas where the rope is wound in/out. 3 - Warranty Our electric winches are guaranteed for 2 years from the date of shipment (ex-works). -
Page 5: Presentation Of The Machines
The English version of the maintenance booklet for our lifting winches can be downloaded from our website www.huchez.fr/uk under the heading "After sales services”. A copy is however proposed in the annexes of this manual. - Page 6 © 2011 by Huchez Treuils S.A.S. Models PRIMO INOX PRIMO INOX BT 250 & 400 BT 1000 A mm B mm C mm ØD mm E mm F mm ØG mm J mm M mm N mm T mm Translation of the original instructions manual...
- Page 7 © 2011 by Huchez Treuils S.A.S. 6.3 – Models available PRIMO PRIMO PRIMO PRIMO PRIMO PRIMO INOX BT INOX BT INOX INOX BT INOX BT INOX BT References 1001 BT 253 1003 Capacity on the 1rst layer kg Capacity on the last layer (kg)
-
Page 8: Handling - Storage
© 2011 by Huchez Treuils S.A.S. Lifting machines rarely subject to maximum load and Light k ≤ 0,5 regularly used for very light loads. Lifting machines quite often subject to maximum load Medium 0,5 < k ≤ 0,63 and regularly used for light loads. -
Page 9: Installation And Set-Up
© 2011 by Huchez Treuils S.A.S. 8 - Installation and set-up 8.1 Installation The service life of a winch depends on its installation and set-up. It is essential that you read this manual carefully before installing, using and servicing your machine. - Page 10 © 2011 by Huchez Treuils S.A.S. 8.4 – Power supply Before undertaking any operation on the electrical unit, check that the power supply to the machine is off. A disconnecting switch must be placed no more than 10 metres from the place of use.
- Page 11 © 2011 by Huchez Treuils S.A.S. The user must tauten the rope using a minimum force of 1% of the operating load of the winch. The service life of the steel ropes used on the winch depends on a number of factors, including the form of the work cycles (lifting height, lifting speed, number and type of deviations, etc.)
- Page 12 © 2011 by Huchez Treuils S.A.S. Fastening the rope Models PRIMO INOX 250/400/1000 Refer to the photos below. If necessary, remove the limit switch Slacken the screws Insert the end of the rope between the drum flange and the cable clamp ...
- Page 13 © 2011 by Huchez Treuils S.A.S. Check the direction of cable winding according to the motor connection. Left-hand rope Right-hand rope Wind from the right Wind from the left towards the left towards the right Left-hand rope Right-hand rope Wind from the left...
-
Page 14: Servicing And Maintenance
© 2011 by Huchez Treuils S.A.S. 9 – Servicing and maintenance Respect the following instructions, in particular if your winch is used in a large number of different locations or in a particularly dirty and damp environment: Remove the bulk of the dirt from the winch. -
Page 15: Taking Out Of Use
© 2011 by Huchez Treuils S.A.S. Operating principle: On starting the motor, the internal magnetic field opens the brake by lifting the conical plate from the friction surface at the bottom of the motor. On stopping the motor, the magnetic field disappears. The central spring closes the brake again by bringing the conical panel back into contact with the motor's rear flange. -
Page 16: Spare Parts
2011 by Huchez Treuils S.A.S. 11 – Spare parts If during maintenance operations you notice that certain parts of your winch need to be replaced, use HUCHEZ original parts only. For all spare parts orders, please indicate the following specifications on your order ... -
Page 17: Declaration Of Ec Conformity
© 2011 by Huchez Treuils S.A.S. 13 – Declaration of EC conformity Translation of the original instructions manual Reproduction prohibited... -
Page 18: Appendices
© 2011 by Huchez Treuils S.A.S. 14 – Appendices – Diagram of limit switch ....................p 20 – Exploded views and spare parts lists PRIMO INOX 250 kg ..................p 22 PRIMO INOX 400 kg ..................p 23 ... - Page 19 © 2011 by Huchez Treuils S.A.S. – DIAGRAM OF LIMIT SWITCH PRIMO INOX 250, 400 and 1000 kg 250 / 400 1000 PRIMO INOX 250 / 400 PRIMO INOX 1000 Part no. Part no. Description 24696 24697 Limit switch 13124...
- Page 20 © 2011 by Huchez Treuils S.A.S. – EXPLODED VIEWS PRIMO INOX 250/400 kg – Part references THE SERIAL NUMBER MUST BE SPECIFIED FOR ALL SPARE PART ORDERS. PRIMO PRIMO PRIMO PRIMO INOX INOX INOX INOX Part no. Part no. Part no.
- Page 21 © 2011 by Huchez Treuils S.A.S. PRIMO INOX 1000 kg – Part references THE SERIAL NUMBER MUST BE SPECIFIED FOR ALL SPARE PART ORDERS. PRIMO INOX 1001 BT Part Part No. Qty Description Description Not communicated Not communicated Translation of the original instructions manual...
- Page 22 © 2011 by Huchez Treuils S.A.S. – ELECTRICAL DIAGRAMS Wiring diagram for the single-phase low-voltage control PRIMO INOX Translation of the original instructions manual Reproduction prohibited...
- Page 23 © 2011 by Huchez Treuils S.A.S. Wiring diagram for the three-phase low-voltage control PRIMO INOX Translation of the original instructions manual Reproduction prohibited...
- Page 24 © 2011 by Huchez Treuils S.A.S. – LIMIT SWITCH ADJUSTMENT Before doing anything, turn off the main power supply to the winch. To set the cams properly, loosen the central screw of the group of cams. Then set the trigger point for each cam using their adjustment screws.
- Page 25 2011 by Huchez Treuils S.A.S. – MAINTENANCE BOOKLET The English version of the maintenance booklet for our lifting winches can be downloaded from our website www.huchez.fr/uk under the heading "After sales services”. Translation of the original instructions manual Reproduction prohibited...
- Page 26 © 2011 by Huchez Treuils S.A.S. Translation of the original instructions manual Reproduction prohibited...
