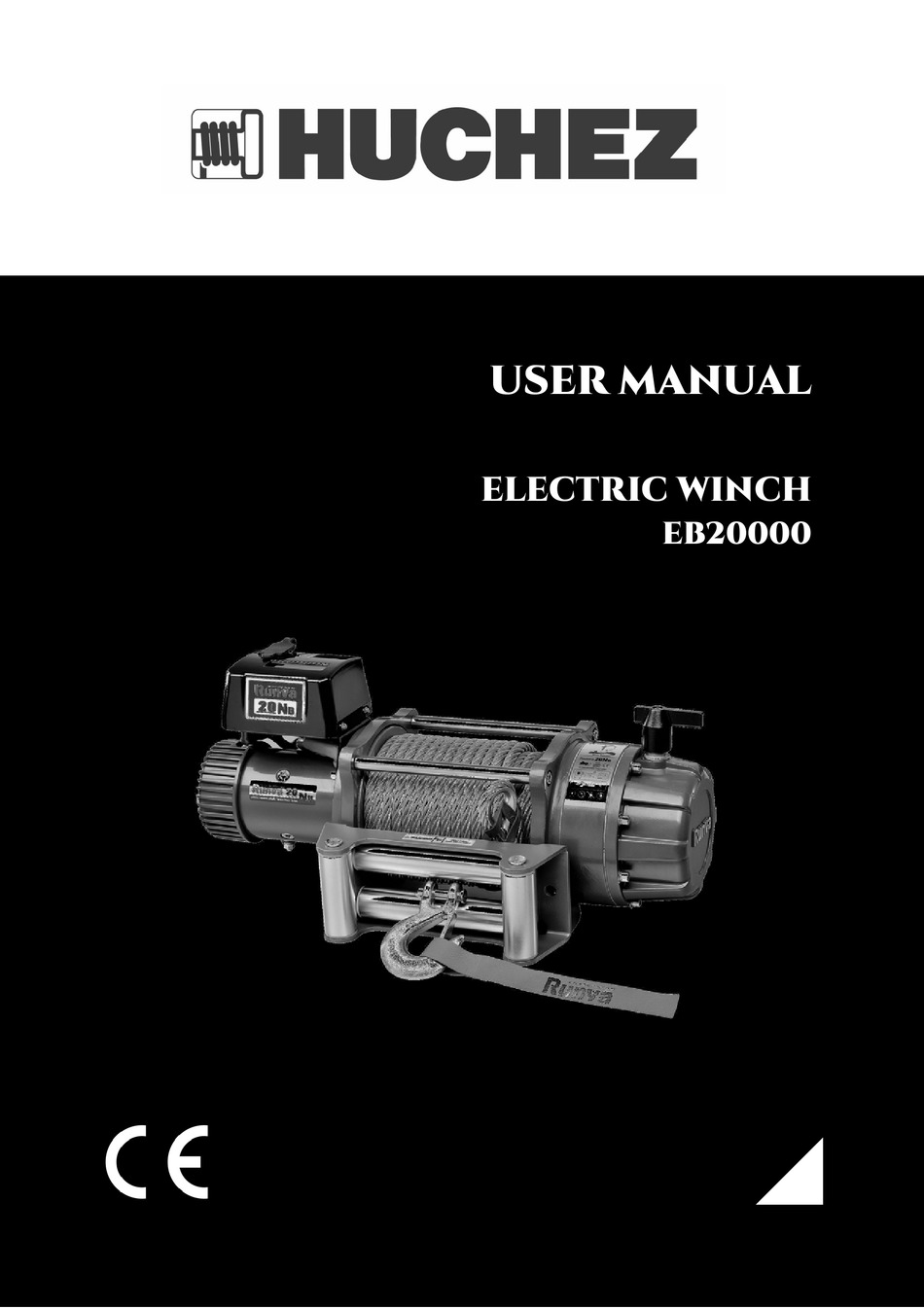

- Page 1 FR - FRANÇAIS - 09/2019 MANUEL D’UTILISATION USER MANUAL ELECTRIC WINCH EB20000 Translation of original instructions Reproduction is prohibited...
- Page 2 EN - ENGLISH – 01/2020 Translation of original instructions Reproduction is prohibited...
-
Page 3: Table Of Contents
Please, do not hesitate to contact your RUNVA distributor if you wish to obtain more information: 4, rue Michel Hammid 60420 FERRIERES (France) :contact@huchez.fr : 03 44 51 11 33 WARNING Please read, study and follow all instructions before using this equipment. -
Page 4: General Safety Information
The use of winches requires strict compliance with the relevant health and safety practices in the country in which the winch is used. HUCHEZ does not accept any responsibility for consequences resulting from the use or installation of devices not covered in this manual, nor does HUCHEZ accept any responsibility for the consequences of disassembly, modification or replacement of original parts or components with third-party parts or components without HUCHEZ’s written consent. -
Page 5: Warranty
EN - ENGLISH – 01/2020 ANY APPLICABLE REQUIREMENTS AND REGULATIONS IN YOUR COUNTRY MUST ALSO BE COMPLIED WITH. WARRANTY These electric winches are covered by a 1-year warranty, starting from the date of shipment (from the factory). This warranty does not cover any wear or damage resulting from a lack of regular maintenance. It also does not cover damage due to a lack of supervision, incorrect operation or improper use of the device, in particular as a result of overloading, pulling diagonally, incorrect supply voltages or faulty connections. - Page 6 EN - ENGLISH – 01/2020 WARNINGS • Do not exceed the rated load capacity indicated in this manual. • Intermittent use only. Allow the winch to cool between each use. • Do not use the winch to lift a load (vertically). •...
-
Page 7: Equipment Information
EN - ENGLISH – 01/2020 CAUTION • If the motor stalls, do not continue to apply power to the winch. Electric winches are designed and manufactured for intermittent use. They should not be used for continuous usage applications. • Never disengage the clutch while the winch is loaded. •... - Page 8 EN - ENGLISH – 01/2020 10. The power switch cables have a double switch to turn the winch on or off. The remote control allows you to keep a safe distance from the cable when it is loaded. 11. The wireless remote control (optional, contact us): allows you to control the winch from a distance of up to approx.
- Page 9 EN - ENGLISH – 01/2020 Table of cable capacity per layer : Ref. EB20000U12A / EB20000U24A Layer Rated Force (kg) Cable drum capacity (m) 9072 7316 12,0 6129 5274 26,5 6.3. Dimensions EB20000U12A / EB20000U24A Translation of original instructions Reproduction is prohibited...
-
Page 10: Mounting - Installation
EN - ENGLISH – 01/2020 MOUNTING - INSTALLATION Accessories you will need which are not included with the winch: • Gloves for handling the cable and hook safety strap. • Anchoring sling/chain. • Blanket to throw over the cable to absorb the energy if the cable breaks. 1. - Page 11 EN - ENGLISH – 01/2020 Description Quantity Baseboard Flat Washer φ5 Spring washer φ5 Screw M5 X 12 Flat Washer φ8 Elastic washer φ8 Screw M8 X 25 5. Connect the battery and the motor cables as shown in the diagram below. Bear in mind that each type of winch is different.
-
Page 12: Commissioning - Usage
EN - ENGLISH – 01/2020 Battery red + Battery black - Switch COMMISSIONING - USAGE Do not use this equipment without having first fully read and understood the user manual. Failure to pay attention to these instructions whilst using this equipment poses a risk to your safety. Before using the equipment, please, observe and apply the following safety instructions: •... - Page 13 EN - ENGLISH – 01/2020 • Get to know your winch before you actually need to use it. We recommend that you carry out some trial runs to practice attaching the cable, familiarise yourself with the sounds your winch makes under different loads, observe the way the cable is wound around the drum, etc. •...
- Page 14 EN - ENGLISH – 01/2020 8.1. Winch cable techniques Auto-recovery Identify a suitable anchor point. When choosing an anchor point, choose a strong, firm point such as a tree trunk or rock. Always use a sling as an anchor. CAUTION NOT CORRECT CORRECT Do not attach the hook to the cable as shown in Fig.
- Page 15 EN - ENGLISH – 01/2020 8.2. Operating the winch Preparation before winching 1. Take some time to assess the situation and prepare your winching operation appropriately. 2. Wear gloves to protect your hands. 3. Disengage the clutch by turning the switch to the DISENGAGE position. This will allow the cable to unwind freely and will save energy.
-
Page 16: Maintenance
EN - ENGLISH – 01/2020 tension. 23. Keep your hands away from the drum and the roller fairlead whilst winding the cable around the drum. 24. Secure the hook and the safety strap. 25. Unplug the remote control and store it in a suitable, dry place. 26. -
Page 17: Decommissioning
EN - ENGLISH – 01/2020 DECOMMISSIONING If the equipment is in a condition which is likely to be hazardous, the user is obliged to ensure that the equipment is disposed of by decommissioning it and, where necessary, dismantling it. SPARE PARTS If you notice during maintenance tasks that certain parts of your winch need replacing, only original parts from the manufacturer should be used. -
Page 18: Troubleshooting
EN - ENGLISH – 01/2020 troubleshooting SYMPTOM POSSIBLE CAUSE SUGGESTED ACTION The motor does - The remote control is - Reconnect the remote control correctly. not start not connected correctly - The battery - Tighten the nuts on all cable connections. connections are not tight enough - Replace the remote control. -
Page 19: Ec Declaration Of Conformity
EN - ENGLISH – 01/2020 EC DECLARATION OF CONFORMITY Translation of original instructions Reproduction is prohibited... -
Page 20: Exploded View Drawings
EN - ENGLISH – 01/2020 EXPLODED VIEW DRAWINGS EB20000U12A / EB20000U24A Translation of original instructions Reproduction is prohibited... - Page 21 EN - ENGLISH – 01/2020 Part No. Description Φ8 B2000001 Lock washer B2000002 Screw M8x 25 B2000100 Motor assembly B2000003 Ring seal B2000004 Motor bracket Washer Φ12 B2000005 Φ12 B2000006 Lock washer B2000007 Assembly screw M12 x 30 B2000008 Bushing drum B2000009 Ring seal B2000010...
- Page 22 EN - ENGLISH – 01/2020 Translation of original instructions Reproduction is prohibited...
- Page 23 EN - ENGLISH – 01/2020 Translation of original instructions Reproduction is prohibited...
- Page 24 ...
