Altronix TROVE T1MK1F4 Installation Manual page 8

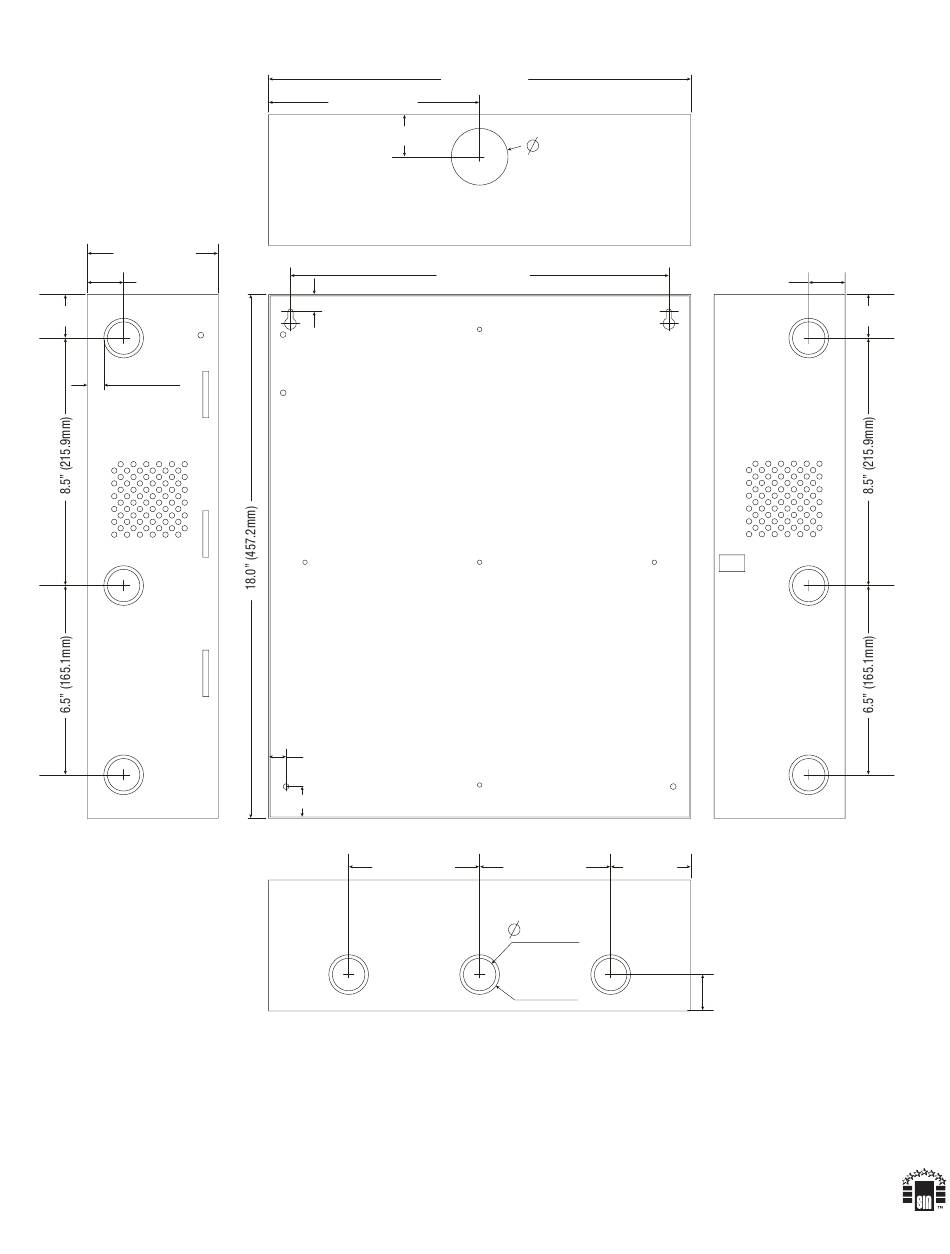

Trove1 Enclosure Dimensions (H x W x D approximate):
18" x 14.5" x 4.625" (457mm x 368mm x 118mm)
14.5" (321.3mm)
7.25" (184.2mm)
1.45" (36.8mm)
1.95" (49.5mm)
4.5" (114.3mm)
13.0" (330.2mm)
1.25" (31.8mm) 1.25" (31.8mm)
1.5" (38.1mm) 1.5" (38.1mm)
0.6" (15.2mm)
0.57" (14.5mm)
0.6" (15.2mm)
1.1" (27.9mm)
2.75"
4.5" (114.3mm) 4.5" (114.3mm)
(69.9mm)
1.115" (28.3mm)
1.36" (34.5mm)
1.25" (31.8mm)
