T1MK1F4 and T1MK1F4D: Configuration of Mercury Boards:
1. Fasten snap on spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller
EP1502, LP1502, MR52, MR16IN, MR16OUT
EP1501, LP1501, MR51e, MR62e
MR50
EP2500, LP2500, MUX8

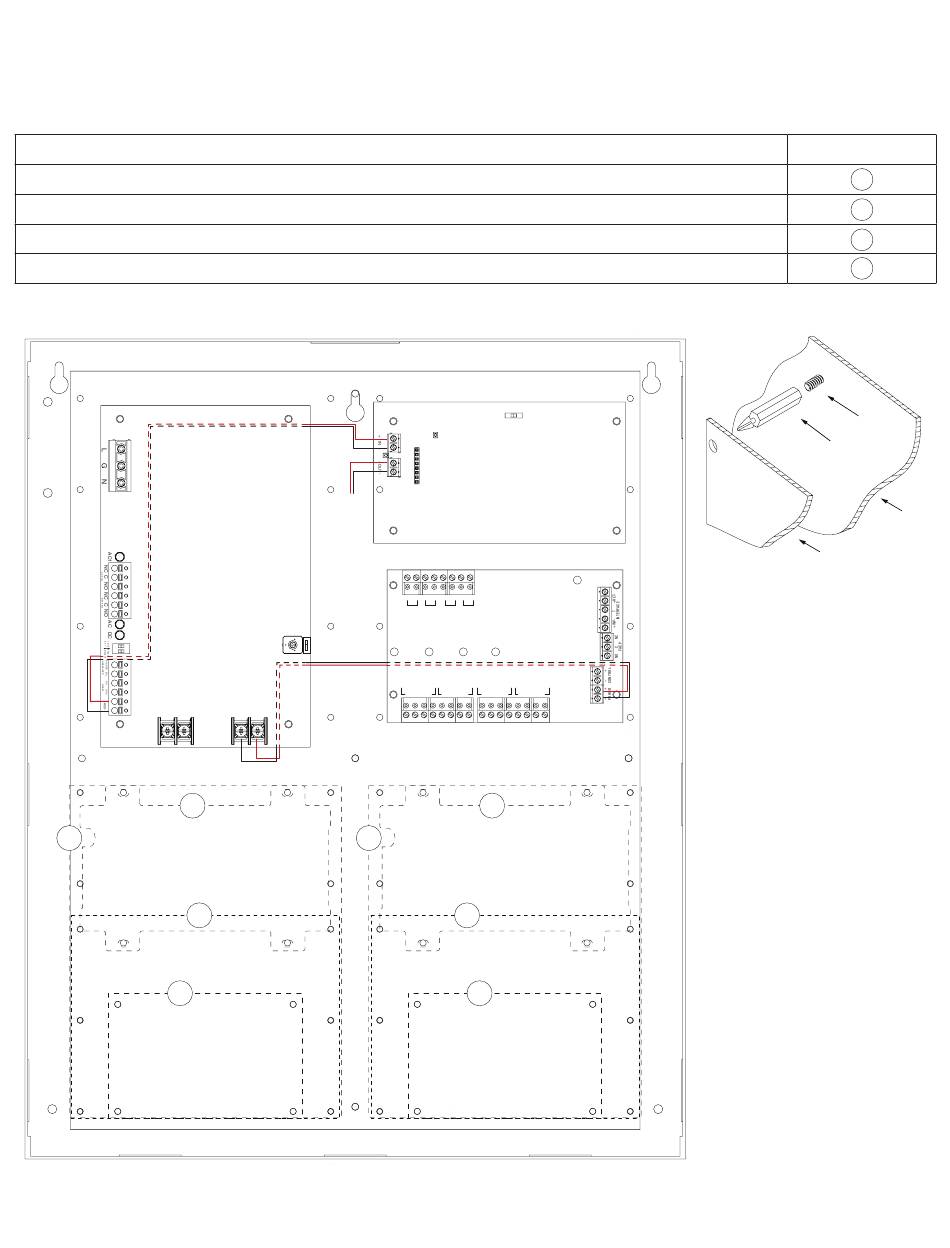

Fig. 2
Altronix eFlow4NB
– BAT +
- BAT +
B
A
D
C
Trove1 Mercury Kits Installation Guide
Flying
Leads
IN GND
1
OFF - 24V
ON - 12V
ON
LED1
NC C NO COM
OUTPUT 1
– DC +
- DC +
A
ON-5V
OFF-12V
Altronix VR6
TRIGGER
INPUT
TRG
IN GND IN GND IN GND
2 3 4
Altronix ACM4(CB)
LED2 LED3 LED4
NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3 OUTPUT 4
ACM4
ACCESS POWER
CONTROLLER
B
D
C
Pem Mounting
A
B
C
D
Fig. 2a
Pem
Snap On
Spacer
Backplane
Mercury Board
