B&G HERCULES Installation Manual

Mounting
Hercules and Hercules WTP sailing processors can be mounted
® ®
vertically or horizontally.
To prevent interference between the unit and the vessel's
compass(es), ensure the unit is at least 50 cm (20 in) away from
any compass.
Mark the hole positions and drill pilot holes.
Use a #2 Phillips head screwdriver to secure the sailing processor
with the four supplied screws.
⚠ CAUTION:
Always wear appropriate eyewear, ear protection
and dust mask when drilling, cutting, or sanding.
Remember to check the reverse side of all surfaces whenever
drilling or cutting.

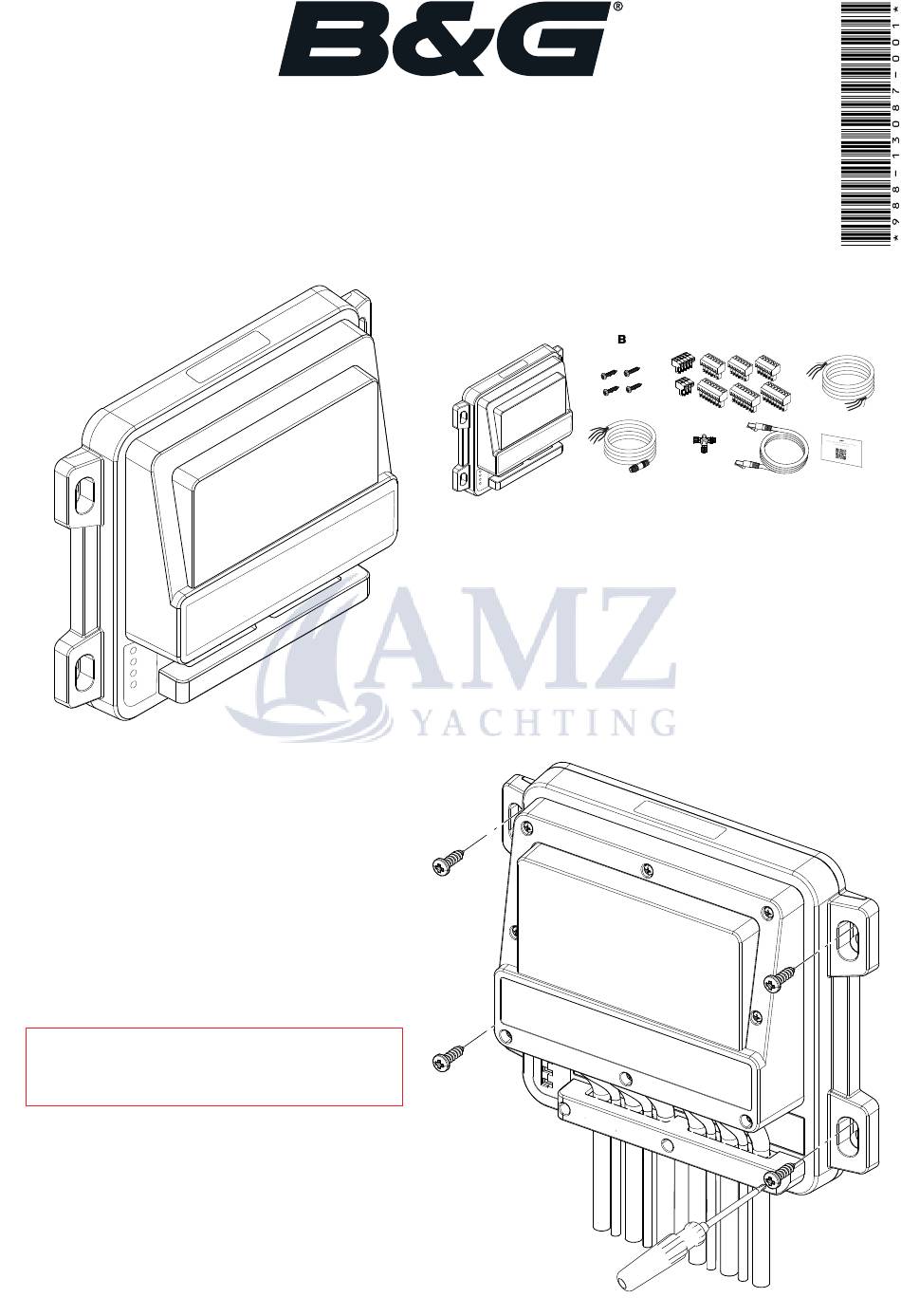

HERCULES and HERCULES
®
INSTALLATION GUIDE
WTP
®
Parts included
A
E
A Hercules or Hercules WTP sailing processor
® ®
B Mounting screws (PH2, 19.05 mm / 0.75 in)
C Connector pack
D Power cable (3 m / 9.8 ft)
E NMEA 2000 cable (1.2 m / 4 ft)
®
F NMEA 2000 connector
®
G
Ethernet cable (3 m / 9.8 ft)
H
Registration details card
C
D
F G H
