Synergy Global Technology ID-19A Series User Manual

Led-backlit lcd
Hide thumbs Also See for ID-19A Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-19A Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Synergy Global Technology ID-19A Series

Summary of Contents for Synergy Global Technology ID-19A Series

  • Page 2 User Manual 19” LED-backlit LCD ID-19A / ID-H19A Aluminum front bezel ID-19AN / ID-H19AN Front NEMA4 / IP65 ID-19D / ID-H19D Aluminum Front Panel ID-19P / ID-H19P Universal Open Frame...
  • Page 3 Legal Information First English printing, January 2024 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-19A / ID-H19A series Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > ID-19D / ID-H19D Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > ID-19P / ID-H19P Package Content Structure Diagram &...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Id-19A / Id-H19A Series

    < Part 1 > ID-19A / ID-H19A series < 1.1 > Package Content 19” Display ID-19A / ID-19AN ID-H19A / ID-H19AN 19" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs...

  • Page 7: Structure Diagram & Dimension

    < 1.2 > Structure Diagram Front view Side View Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker ( for HDMI, Audio or TV option ) LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H)
  • Page 8 < 1.2 > Dimension 19” Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 9 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. PT-BK-IDA Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 10: Id-19D / Id-H19D

    < Part 2 > ID-19D / ID-H19D 19” Display < 2.1 > Package Content ID-19D / ID-H19D 17” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs...

  • Page 11: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side View Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Model Net Weight (W x D x H) 445.5 x 58.9 x 353.1 mm 6.7 kg ID-19D 17.5 x 2.3 x 13.9 inch...
  • Page 12 < 2.2 > Dimension 19” Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 13 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.RackmountMart.com...

  • Page 14: Id-19P / Id-H19P

    < Part 3 > ID-19P / ID-H19P < 3.1 > Package Content 19” Display ID-19P / ID-H19P 19" LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Audio Power DVI-D HDMI out - in - in Video PC Options : Basic I/O...

  • Page 15: Structure Diagram & Dimension

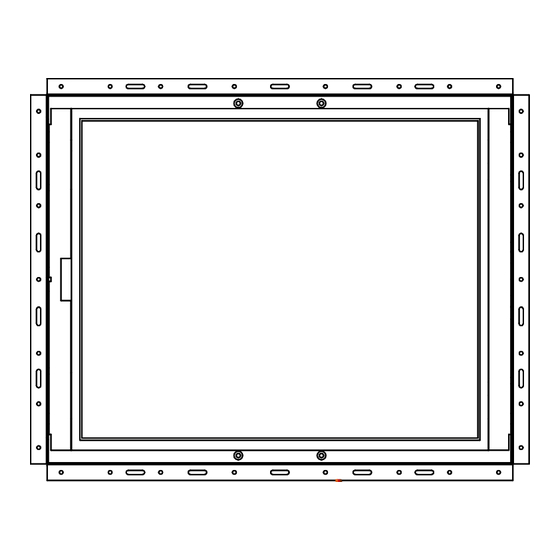

    < 3.2 > Structure Diagram Front view Side View Bottom view Rear case LCD panel Rear view Audio speaker ( for HDMI, Audio or TV option ) Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model Net Weight...
  • Page 16 < 3.2 > Dimension 19” Display Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View P.11 www.RackmountMart.com...
  • Page 17 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided P.12 www.RackmountMart.com...
  • Page 18 < Part 4 > < 4.1 > Product Specifi cations Mechanical Design ID-19A / ID-19AN / ID-19D / ID-19P / ID-H19A ID-H19AN ID-H19D ID-H19P Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front panel Black, RAL 9005 Rear casing Black, RAL 9005 VESA mount...
  • Page 19 < 4.1 > Product Specifi cations 19” Display Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical SpeciÞ...

  • Page 20: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 19” Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 22 < 4.2 > On-screen Display Operation ( OSD ) 19” Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 23: Options

    < Part 5 > Option < 5.1 > Option Table HA / Options ✓ ✓ ✓ ✓ ✓ ✓ SDI * ✓ ✓ ✓ ✓ ✓ ✓ DVI-D ** ✓ ✓ ✓ ✓ ✓ ✓ Composite ( BNC ) ✓ ✓...
  • Page 24 < 5.2 > Options : 3G / HD / SD-SDI input 19” Display Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.
  • Page 25 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Synergy Global Technology provides MC solution to control the OSD of various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the Þ...
  • Page 26 < 5.4 > Options : 19” Display Speaker Option Side View speaker DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio ( Audio input & output ) - Speaker Audio Power DVI-D HDMI out - in - in Video PC BNC Option - BNC...

  • Page 27: Projected Capacitive ( 10-Point Touch )

    < 5.5 > Options : Touchscreen & driver 19" USB Touchscreen Specifi cation Model Multi-touch Resistive Capacitive Technology Projected Capacitive 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Capacitive Stylus Finger or Stylus Finger Resolution 2048 x 2048 2048 x 2048 2048 x 2048 Touch Point Accuracy...
  • Page 28 < 5.5 > Options : Touchscreen & driver 19” Display TPC Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
  • Page 29 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...

  • Page 30: Mil-Type Or Lockable Connector

    < 5.7 > Options : MIL-type or Lockable Connector 19” Display Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design ß...

  • Page 31: Tv ( Analog )

    < 5.8 > Options : TV ( Analog ) Audio Power HDMI out - in - in Video PC *** For TV option : ( 1 ) It comes with HDMI, VGA, BNC, audio inputs and remote controller. ( 2 ) Casing dimensions will be changed. P.28 www.RackmountMart.com...

  • Page 32: Remote Controller

    < 5.9 > How to Use Remote Controller 19” Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 33: Options For Sunlight Readable : Auto Dimming

    < 5.10 > Options for Sunlight Readable : Auto Dimming Light sensor on ID-19P Light sensor on ID-19A ( 66cm from AD board to sensor end ) light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 34 The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2024 Synergy Global Technology Inc. All rights reserved. P.32 www.RackmountMart.com...
