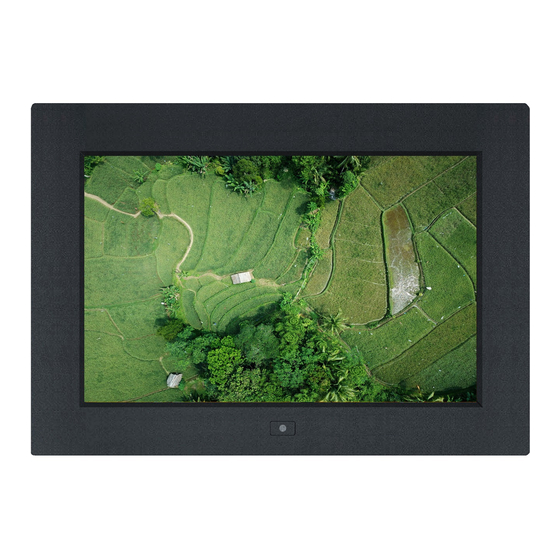

  • Page 2 User Manual 16.2” High Resolution 1920 x 1200 LCD ID-E17Aw Aluminum front bezel ID-E17AwN Front NEMA4 / IP65 ID-E17Dw Aluminum front cover ID-E17Pw Universal Mounting Open Frame...
  • Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-E17Aw / ID-E17AwN Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > ID-E17Dw Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 >...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Id-E17Aw / Id-E17Awn

    < Part 1 > ID-E17Aw / ID-E17AwN 16.2” High Resolution LCD Display < 1.1 > Package Content ID-E17Aw / ID-E17AwN 16.2” High Resolution LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1...

  • Page 7: Structure Diagram & Dimension

    Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) 4.9 kg ID-E17Aw 10.8 lb 468.5 x 57.1 x 331 mm 18.4 x 2.2 x 13 inch 5.6 kg ID-E17AwN 12.3 lb www.RackmountMart.com...
  • Page 8 < 1.2 > Dimension 16.2” High Resolution LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 9 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. PT-BK-IDA Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 10: Id-E17Dw

    < Part 2 > ID-E17Dw 16.2” High Resolution LCD Display < 2.1 > Package Content ID-E17Dw 16.2” High Resolution LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power DVI-D Audio HDMI - An abundance of input connections that include HDMI, DVI-D, VGA and audio...

  • Page 11: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Front view Side View Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) 437.5 x 51.9 x 300 mm 4.4 kg ID-E17Dw...
  • Page 12 < 2.2 > Dimension 16.2” High Resolution LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 13 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.RackmountMart.com...

  • Page 14: Id-E17Pw

    < Part 3 > ID-E17Pw 16.2” High Resolution LCD Display < 3.1 > Package Content ID-E17Pw 16.2” High Resolution LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power DVI-D Audio HDMI - An abundance of input connections that include HDMI, DVI-D, VGA and audio...

  • Page 15: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model Net Weight...
  • Page 16 < 3.2 > Dimension 16.2” High Resolution LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View P.11 www.RackmountMart.com...
  • Page 17 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided P.12 www.RackmountMart.com...

  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 16.2” High Resolution LCD Display Mechanical Design ID-E17Aw ID-E17AwN ID-E17Dw ID-E17Pw Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing...
  • Page 19 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi cation ID-E17Aw ID-E17AwN ID-E17Dw ID-E17Pw Product ( W x D x H ) 468.5 x 57.1 x 331 437.5 x 51.9 x 300 465.5 x 50.6 x 328...

  • Page 20: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 16.2” High Resolution LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...

  • Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / 16.2” High Resolution LCD Display Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu →...
  • Page 23 < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...

  • Page 24: Remote Controller ( Rc-2 )

    < 4.4 > Remote Controller 16.2” High Resolution LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 25: Option Table

    < Part 5 > Option < 5.1 > Option Table Option Aw / AwN ✓ ✓ ✓ SDI *** ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ MCS multi-display control *** ✓ ✓ ✓ DC Power ✓ ✓ ✓ MIL-type / lockable connector P.20 www.RackmountMart.com...
  • Page 26 < 5.2 > Options : 3G / HD / SD-SDI input 16.2” High Resolution LCD Display Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.
  • Page 27 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Synergy Global Technology provides MC solution to control the OSD of various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the Þ...

  • Page 28: Resistive ( 1-Point Touch )

    < 5.4 > Options : Touchscreen & driver 16.2” High Resolution LCD Display 17 USB Touchscreen Specification Model Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤...
  • Page 29 < 5.4 > Options : Touchscreen & driver TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : https://www.rackmountmart.com/downloads.html Step 2. Double click the Setup.exe Step 3.
  • Page 30 < 5.5 > Options : DC Power 16.2” High Resolution LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...

  • Page 31: Mil-Type Or Lockable Connector

    The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Synergy Global Technology Inc. All rights reserved. P.26 www.RackmountMart.com...
