Summary of Contents for Synergy Global Technology ID-55Pw-LED

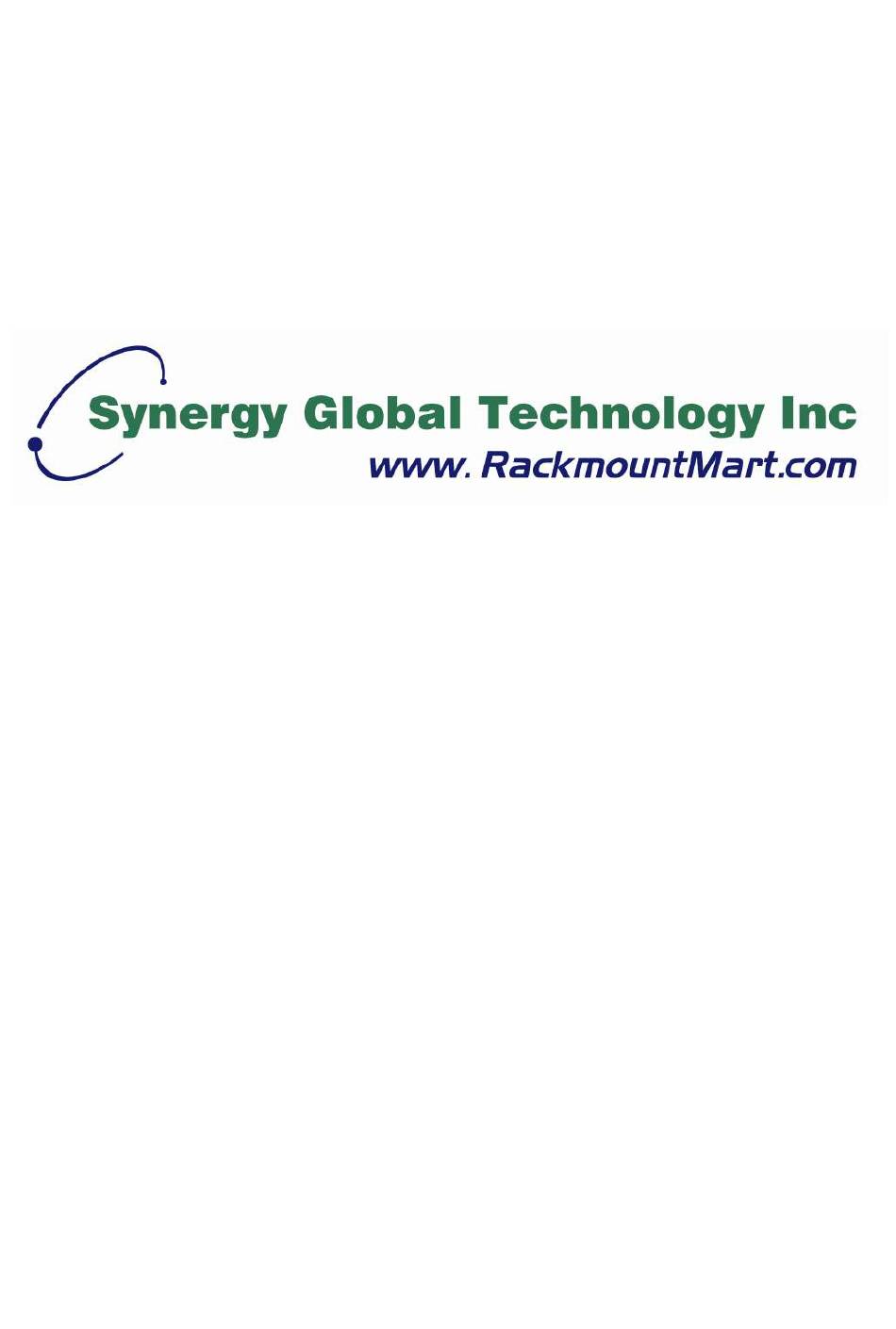

- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

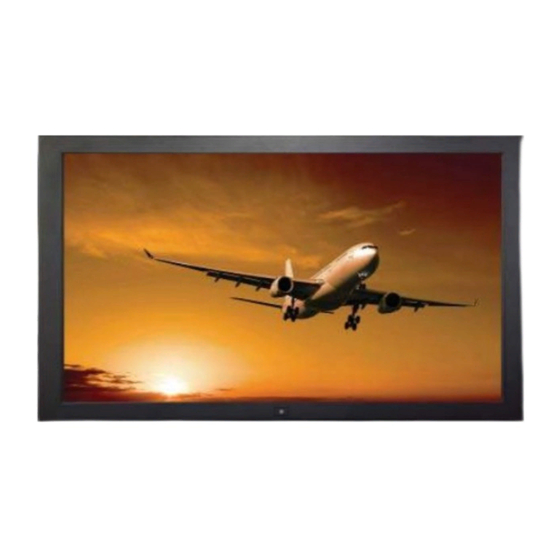

- Page 2 User Manual 55” Full HD 1920 x 1080 LCD ID-55Aw-LED Aluminum front bezel ID-55AwN-LED Front NEMA4 / IP65 ID-55Pw-LED Universal Mounting Open Frame...
- Page 4 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 5: Table Of Contents
ID-55Aw-LED / ID-55AwN-LED Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > ID-55Pw-LED Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation < Part. 3 > Specifi cations / OSD / Remote Controller Product Specifi... - Page 6 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 7 < Part 1 > < 1.1 > Package Content - ID-55Aw-LED / ID-55AwN-LED ID-55Aw-LED / ID-55AwN-LED 55" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Wall-mount bracket set X 1 Basic I/O Power Audio...
-
Page 8: Structure Diagram & Dimension
< 1.2 > Structure Diagram - ID-55Aw-LED / ID-55AwN-LED Front view ID-55Aw-LED ID-55AwN-LED Bottom view Rear case Rear view LCD panel 8mm aluminum front bazel Audio speaker, pair LCD membrane Wall-mount bracket Remote sensor Product Dimension Model (W x D x H) Weight 1315.6 x 73.8 x 786.4 mm 45.2 kg... -
Page 9: Id-55Aw-Led / Id-55Awn-Led
< 1.2 > Dimension - ID-55Aw-LED / ID-55AwN-LED Side View Front View ID-55Aw-LED ID-55AwN-LED Rear View UNIT : mm 1mm = 0.03937 inch Bottom View... - Page 10 < 1.3 > Wall-mount Installation - ID-55Aw-LED / ID-55AwN-LED Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). Rear side Step Rear wall-mount bracket...
-
Page 11: Package Content
< Part 2 > < 2.1 > Package Content - ID-55Pw-LED ID-55Pw-LED 55" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio Audio DVI-D S-Video R C A... -
Page 12: Structure Diagram & Dimension
< 2.2 > Structure Diagram - ID-55Pw-LED Front view ID-55Pw-LED Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) -
Page 13: Part. 2 > Id-55Pw-Led
< 2.3 > Dimension - ID-55Pw-LED Front View Side View ID-55Pw-LED Rear View UNIT : mm 1mm = 0.03937 inch Bottom View... - Page 14 < 2.3 > Installation - ID-55Pw-LED Universal mount No VESA mount provided for 46" and 55” models. Only universal mount available.
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical ID-55Aw(N)-LED ID-55Pw-LED Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount... - Page 16 -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random ID-55Pw-LED ID-55Aw-LED ID-55AwN-LED Physical Specifi cation Product ( W x D x H ) 1315.6 x 73.8 x 786.4 1311.6 x 65.8 x 782.4 inch 51.8 x 2.9 x 31...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) 55” FHD LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 18 < 3.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 3.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 20 55” FHD LCD Display < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
-
Page 21: Remote Controller ( Rc-2 )
< 3.4 > Remote Controller ( RC ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 22: Part. 4 > Options
< Part 4 > Options < Part 4 > Options 55” FHD LCD Display < 4.1 > Option Table Options Aw / AwN MC multi-screen control MIL-type / lockable connector DC Power P.16... - Page 23 < 4.2 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, We provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 24 < 4.3 > Options : MC 55” FHD LCD Display More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. We provides MC solution to control the OSD of various LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 25 < 4.4 > Options : DC Power Model Input rating Input voltage: 24-Volt 48-Volt Input range: 18 ~ 36V 36 ~ 75V Input current - No load 180 mA 90 mA - Full load 8396 mA 4198 mA Output rating Output voltage: 24-Volt 48-Volt...
- Page 26 < 4.5 > Options : MIL-type or Lockable Connector 55” FHD LCD Display Input Part no. MIL Standard MIL - type MIL - DTL - 26482 DC Power Connector ( Male ) (DMS3470W8-33P) MIL - DTL - 26482 (MS3470W14-15P) ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
-
Page 27: Tv ( Analog )
< 4.6 > Options : TV ( Analog ) HDMI DVI-D Audio S-Video R C A Audio Power For RC remote controller speci fi cations, please refer to P.15 P.21... - Page 28 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Synergy Global Technology Inc. All rights reserved.
