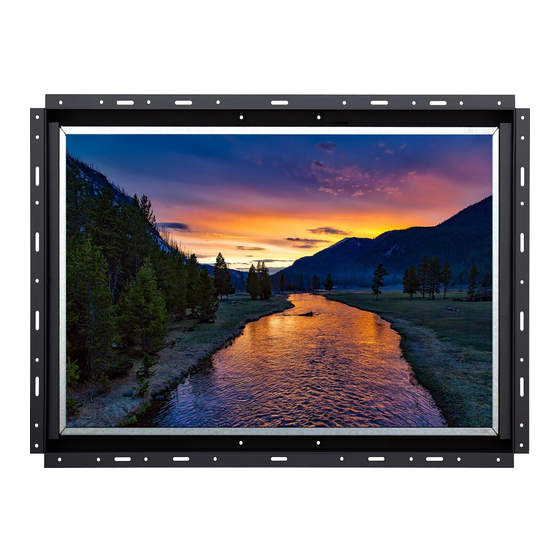

  • Page 2 User Manual 32” 4K 3840 x 2160@60Hz LCD ID-K32Aw Aluminum front bezel ID-K32AwN Front NEMA4 / IP65 ID-K32Dw Aluminum Front Panel ID-K32Pw Universal Open Frame...
  • Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-K32Aw / ID-K32AwN Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > ID-K32Dw Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > ID-K32Pw Package Content Structure Diagram &...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Id-K32Aw / Id-K32Awn

    < Part 1 > ID-K32Aw / ID-K32AwN < 1.1 > Package Content ID-K32Aw / ID-K32AwN 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4 HDMI 2.0...

  • Page 7: Structure Diagram & Dimension

    6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) 780 x 88.2 x 474 mm 20.9 kg ID-K32Aw 30.7 x 3.5 x 18.7 inch 46 lb ID-K32AwN www.RackmountMart.com...
  • Page 8 32” 4K LCD Display < 1.2 > Dimension Front View Side View ID-K32Aw / ID-K32AwN Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 9 < 1.3 > VESA Installation M8 screw VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided www.RackmountMart.com...
  • Page 10 < Part 2 > ID-K32Dw 32” 4K LCD Display < 2.1 > Package Content ID-K32Dw 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4 HDMI 2.0 www.RackmountMart.com...
  • Page 11 < 2.2 > Structure Diagram Front view Side view Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) 758 x 84.2 x 452 mm 18.7 kg ID-K32Dw 29.8 x 3.3 x 17.8 inch...

  • Page 12: Id-K32Dw

    32” 4K LCD Display < 2.2 > Dimension Front View Side View ID-K32Dw Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 13 < 2.3 > VESA Installation M8 screw VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided www.RackmountMart.com...

  • Page 14: Package Content

    < Part 3 > ID-K32Pw 32” 4K LCD Display < 3.1 > Package Content ID-K32Pw 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio HDMI 1.4 HDMI 2.0 www.RackmountMart.com...

  • Page 15: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side view Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model Net Weight...

  • Page 16: Id-K32Pw

    32” 4K LCD Display < 3.2 > Dimension Front View Side View ID-K32Pw Rear View UNIT : mm 1mm = 0.03937 inch Bottom View P.11 www.RackmountMart.com...
  • Page 17 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 300*300mm ) VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided P.12 www.RackmountMart.com...
  • Page 18 < Part 4 > < 4.1 > Product Specifications 32” 4K LCD Display Mechanical Design ID-K32Aw ID-K32AwN ID-K32Dw ID-K32Pw Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 19 Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specification ID-K32Aw ID-K32AwN ID-K32Dw ID-K32Pw Product ( W x D x H ) 780 x 88.2 x 474 758 x 84.2 x 452 777 x 82.2 x 471...

  • Page 20: On-Screen Display Operation ( Osd )

    32” 4K LCD Display < 4.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 22 32” 4K LCD Display < 4.2 > On-screen Display Operation ( OSD ) Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 23: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 24 32” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 25: Remote Controller ( Rc )

    < 4.4 > Remote Controller ( RC ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 26: Option Table

    < Part 5 > Options 32” 4K LCD Display < 5.1 > Option Table Options Aw / AwN ✓ ✓ ✓ ✓ ✓ ✓ MCS multi-screen control ✓ ✓ ✓ Touchscreen ✓ ✓ ✓ DC Power ✓ ✓ ✓ MIL-type / lockable connector ✓...
  • Page 27 < 5.2 > Options : 12G / 4K60 / SD-SDI Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 3840 x 2160p @60Hz resolution without using additional space or power.
  • Page 28 32” 4K LCD Display < 5.3 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.
  • Page 29 < 5.4 > Options : MC More control is always good. Especially when it is necessary and easy. Synergy Global Technology provides MC solution to control ( Multi-display Control ) the OSD of various Industrial LCD displays up to 64 units.
  • Page 30 32” 4K LCD Display < 5.5 > Options : Touchscreen & driver K32" USB Touchscreen Specification Multi-touch Infrared Model Projected Capacitive Infrared Technology Touch Point Pen, Finger, Finger of gloved hand Input Type Finger or Capacitive Stylus activation 4096 x 4096 Resolution ±...
  • Page 31 < 5.6 > Options : DC Power Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 40 mA - Full load 4880 mA 2442 mA 993 mA...
  • Page 32 32” 4K LCD Display < 5.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design ß...
  • Page 33 The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Synergy Global Technology Inc. All rights reserved. P.28 www.RackmountMart.com...
