Summary of Contents for Synergy Global Technology ID-55AW
- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

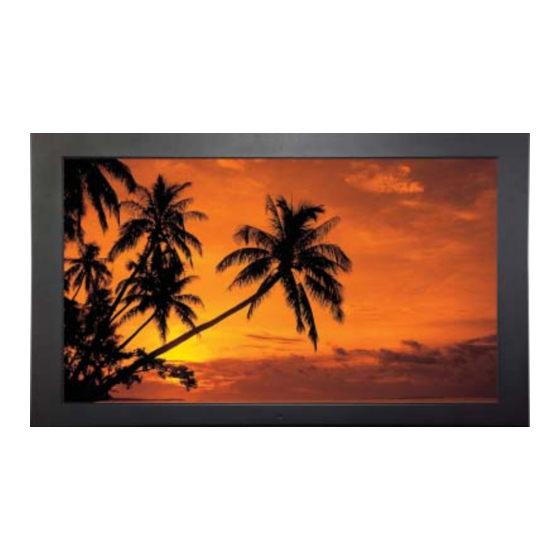

- Page 2 User Manual - 55” Widescreen ID-55AW Aluminum front bezel Options : - Touchscreen...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents ID-55AW < Part 1 > Package Contents P.1 - 2 Structure Diagram & Dimension P.3 - 4 Wall Mount Kit Installation Connection P.5 - 6 On-screen Display Operation ( OSD ) LCD Specifi cation P.8 - 9 Remote Controller Usage P.10... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Package Contents
< Part 1 > < 1.1 > Package Content - ID-55AW unit X 1 - 6ft VGA cable X 1 - 6ft DVI-D cable X 1 - 6ft HDMI cable X 1 - 6ft RCA cable X 1 - 6ft S-Video cable X 1... - Page 7 UNIT : mm Front View Side View 1mm = 0.03937 inch Rear View Bottom View Product Dimension Model Weight (W x D x H) 1315.6 x 73.8 x 786.4 mm 55 kg ID-55AW 51.8 x 2.9 x 31" 121 lb...
-
Page 8: Wall Mount Kit Installation
< 1.3 > Installation - How to install Wall Mount Kits Make sure to follow the four steps below for wall mount kit installation Step Front wall mount bracket M5 screw ■ Install left & right front wall mount brackets at Rear side the rear side of the LCD shown above. -
Page 9: Connection
< 1.3 > Mounting Kit Step Installation Completed. ■ < 1.4 > Connection Package excludes audio cables R C A Power HDMI DVI-D Audio in S-Video Audio out The LCD display is hot-pluggable, but components of connected devices may not be Caution : hot-pluggable. -
Page 10: On-Screen Display Operation ( Osd )
< 1.5 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 11 < 1.5 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / User / Normal / News mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 12: Lcd Specifi Cation
< 1.6 > LCD Specifi cation Item Description LCD Manufacturer 55" TFT Size (diagonal) 1920 x 1080 Max. resolution Brightness (cd/m²) 1.07 Billion, 10-bit Colors Backlight 4000:1 Contrast ratio (typ.) 178˚ x 178˚ Viewing angle (H/V) 1210 x 680 Active area (mm) Response time (ms) 30,000 MTBF (hrs) -
Page 13: Remote Controller Usage
< 1.7 > How to Use the Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO... - Page 14 < 1.7 > How to Use the Remote Controller Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. Auto adjust AUTO Display the menu on the screen or go to the previous menu...
-
Page 15: Options : Touchscreen
< 1.8 > Options : Touchscreen Multi-touch Specifi cation Model -TMT 55" Widescreen Screen size Interface Optical transmittance Min. 7H Surface hardness Windows 7, Vista, XP, 2000, Linux, Mac OS X Operating system Windows 7 Dual touch capability ■ USB touchscreen package includes 1 x 6ft USB cable and quick reference guideline ■... - Page 16 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2012 Synergy Global Technology Inc. All rights reserved.
