  • Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

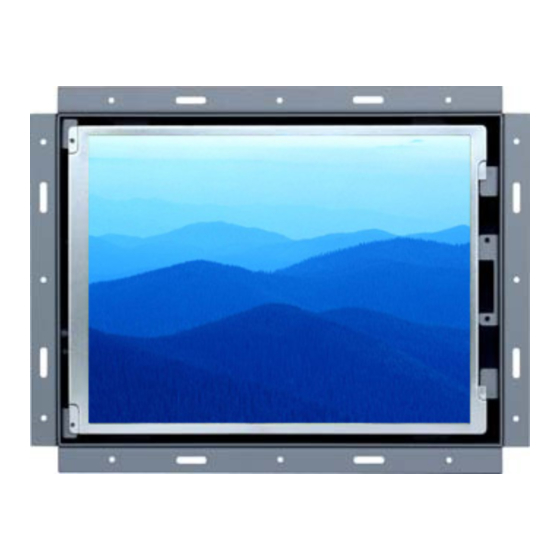

  • Page 2 User Manual 10" LCD ID-10A Front aluminum LCD panel ID-10AN Front NEMA4 / IP 65 LCD panel ID-10D Stylish front aluminum cover LCD panel ID-10P Open frame LCD panel - AV / BNC Options : - Touchscreen - DC power...
  • Page 3: Table Of Contents

    Contents Chapter 1 Getting Started Important Safeguards............1 Before Installation..............2 Unpacking................2 Optional Accessories............2 Chapter 2 ID-10A Front aluminum LCD panel Package Contents.............3 Structure Diagram ................. Dimension Diagram ..............Mounting Method ..............Chapter 3 ID-10AN Front NEMA4 / IP 65 LCD panel Package Contents.............8...
  • Page 4 Chapter 6 Connection ..............21 Chapter 7 Operation On-screen Display Operation........21 On-screen Menu............22 Chapter 8 LCD Specifi cation ...........23 Chapter 9 AV, BNC Options S-Video + RCA Input Option..........24 S-Video + BNC Input Option..........24 Chapter 10 Touchscreen Options 10.1 Touchscreen Quick User Guidelines......25-26 Chapter 11 DC Power Options ..........27 Chapter 12 TV Tuner Options...
  • Page 5: Important Safeguards

    Causes external to the product, such as electric power fl uctuation or failure. □ Use of supplies or parts not meeting our specifi cations. □ Normal wear and tear. □ Any other causes which does not relate to a product defect. ■ Removal, installation, and set-up service charges. ID-10A/10AN/10D/10P...
  • Page 6: Before Installation

    If anything is missing, or damage, contact the supplier immediately. 1.4 Optional Accessories 1. Power Cord 1.1 IEC power cord 1.2 NEMA 5-15 power cord (US) 1.3 BS 1363 power cord (UK) 1.4 CEE 7/4 power cord (German) 1.5 AS 3112 power cord (Australia) ID-10A/10AN/10D/10P...
  • Page 7: Chapter 2 Id-10A

    Auto switch power adapter x 1 pc Mounting bracket A x 2 pcs Mounting bracket B x 8 pcs M4*6mm screw x 4 pcs M4*50mm screw x 8 pcs Remarks ■ ID-10A Series mounting bracket set includes item 6 - 9, please refer to p.6-7 ID-10A/10AN/10D/10P...
  • Page 8 Chapter 2 2.2 ID-10A series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel Class A TFT LCD panel LCD membrane 4mm protective glass ID-10A/10AN/10D/10P...
  • Page 9 Chapter 2 2.3 ID-10A series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View ID-10A/10AN/10D/10P...
  • Page 10 Chapter 2 2.4 ID-10A series Mounting Method Mounting bracket A x 2 pcs x 4 pcs Mounting bracket A M4*6mm screw Mounting bracket B x 8 pcs x 8 pcs Mounting bracket B M4*50mm screw ID-10A/10AN/10D/10P...
  • Page 11 Chapter 2 2.4 ID-10A series Mounting Method 75mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes.
  • Page 12: Package Contents

    Auto switch power adapter x 1 pc Mounting bracket A x 2 pcs Mounting bracket B x 8 pcs M4*6mm screw x 4 pcs M4*50mm screw x 8 pcs Remarks ■ NAP Series mounting bracket set includes item 6 - 9, please refer to p.11-12 ID-10A/10AN/10D/10P...
  • Page 13 Chapter 3 ID-10AN series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel Class A TFT LCD panel LCD membrane 4mm protective glass (Front NEMA 4 / IP65 protection) ID-10A/10AN/10D/10P...
  • Page 14 Chapter 3 ID-10AN series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.10 ID-10A/10AN/10D/10P...
  • Page 15: Mounting Method

    Chapter 3 ID-10AN series Mounting Method Mounting bracket A x 2 pcs x 4 pcs Mounting bracket A M4*6mm screw Mounting bracket B x 8 pcs x 8 pcs Mounting bracket B M4*50mm screw P.11 ID-10A/10AN/10D/10P...
  • Page 16 ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause damage to your display P.12 ID-10A/10AN/10D/10P...
  • Page 17 Chapter 4 4.1 ID-10D series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc P.13 ID-10A/10AN/10D/10P...
  • Page 18 Chapter 4 4.2 ID-10D series Structure Diagram Front View Rear View Rear case 1.2mm front aluminum cover Class A TFT LCD panel LCD membrane 4mm protective glass P.14 ID-10A/10AN/10D/10P...
  • Page 19 Chapter 4 4.3 ID-10D series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.15 ID-10A/10AN/10D/10P...
  • Page 20 ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause damage to your display P.16 ID-10A/10AN/10D/10P...
  • Page 21 Chapter 5 5.1 ID-10P series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc P.17 ID-10A/10AN/10D/10P...
  • Page 22 Chapter 5 5.2 ID-10P series Structure Diagram Front View Rear View Rear case Universal open frame mounting Class A TFT LCD panel LCD membrane P.18 ID-10A/10AN/10D/10P...
  • Page 23 Chapter 5 5.3 ID-10P series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.19 ID-10A/10AN/10D/10P...
  • Page 24 ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause damage to your display P.20 ID-10A/10AN/10D/10P...
  • Page 25: Connection

    Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressed the button for 5 seconds Toggle analog, digital & video connection (video options only) P.21 ID-10A/10AN/10D/10P...
  • Page 26: On-Screen Menu

    Adjust the display image’s H & V position, sharpness, phase and clock Function: Enable or disable function of auto adjust, position, phase and clock OSD Menu: Confi gure the OSD menu Miscellaneous: Switch the display size and reset to factory default Exit: Exit the on-screen menu P.22 ID-10A/10AN/10D/10P...
  • Page 27: Lcd Specifi Cation

    DC power input with 12V, 24V, 48V selection Touchscreen Resistive and capacitive Environmental Operation 0˚ to 50˚C Degree Storage -5˚ to 60˚C Degree Relative Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random vibration P.23 ID-10A/10AN/10D/10P...
  • Page 28: S-Video + Rca Input Option

    9.1 S-Video + RCA Input Option S-Video VGA Power Remarks ■ Package includes an extra 6ft S-Video and 6ft RCA cables 9.2 S-Video + BNC Input Option S-Video VGA Power Remarks ■ Package includes an extra 6ft S-Video cable P.24 ID-10A/10AN/10D/10P...
  • Page 29: Chapter 10 Touchscreen Options

    Serial touchscreen package includes an extra 6ft serial cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully. P.25 ID-10A/10AN/10D/10P...
  • Page 30: Touchscreen Quick User Guidelines

    After the calibration, the new record will overwrite the old one. Caution : ■ At the fi rst assembly of touch screen, we suggest applying 25 points calibration. ■ For a more accurate calibration of touch screen, please apply 25 points calibration. P.26 ID-10A/10AN/10D/10P...
  • Page 31: Chapter 11 Dc Power Options

    50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A Effi ciency Remarks ■ Package does not include power cord and AC power adapter P.27 ID-10A/10AN/10D/10P...
  • Page 32: Tv Tuner Options

    Chapter 12 12.1 TV Tuner Options Audio-L S-Video Audio out Audio-R Audio in Video Power Remarks ■ Package includes a remote controller 12.2 How to Use Remote Controller ■ How to use remote controller, please refer to p.30-31 P.28 ID-10A/10AN/10D/10P...
  • Page 33: Chapter 13 Audio Input Options

    Chapter 13 13.1 Audio Input Options Audio in S-Video Audio-L Audio-R Power Video P.29 ID-10A/10AN/10D/10P...
  • Page 34 14.1 Remote Controller Options POWER MUTE INPUT DISPLAY CLEA R SELEC T BACK MENU EXI T ENTER VO L AUDI O FREEZE ZOOM ASPECT ADJUST PI P SOURCE SWAP POSITION SLEEP PI P PI P AUDI O ASPECT PI P P.30 ID-10A/10AN/10D/10P...
  • Page 35: Chapter 14 Remote Controller Options

    Swap the input source with Main Channel and PIP Channel SWAP Set the position of the PIP screen: BOTTOM-LEFT, BOTTOM-RIGHT, TOP-LEFT, TOP-RIGHT POSITION Alternate the main screen speaker or PIP screen speaker PIP AUDIO Set the PIP display aspect ratio mode: FULL SCREEN, PILLAR BOX PIP ASPECT P.31 ID-10A/10AN/10D/10P...
  • Page 36: Chapter 15 Troubleshooting

    The touchscreen will be aged after a certain period of consumption or under harsh environment. It is normal. The touchscreen driver has an utility to adjust the situation. The calibration point can be more on the touch screen. P.32 ID-10A/10AN/10D/10P...
  • Page 37: Chapter 16 Dimensions

    The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Synergy Global Technology Inc.All rights reserved. P.33 ID-10A/10AN/10D/10P...
