- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

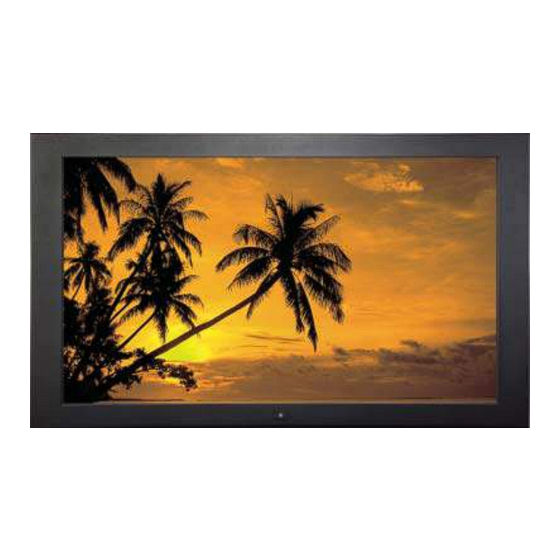

- Page 2 User Manual 42” FHD 1920 x 1080 LCD ID-42Aw-LED Aluminum front bezel ID-42AwN-LED Front NEMA4 / IP65 ID-42Pw-LED Universal Mounting Open Frame...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > ID-42Aw-LED / ID-42AwN-LED Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > ID-42Pw-LED Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation Specifi... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Part. 1 > Id-42Aw-Led / Id-42Awn-Led
< Part 1 > < 1.1 > Package Content - ID-42Aw-LED / ID-42AwN-LED ID-42Aw-LED / ID-42AwN-LED W42" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Wall-mount bracket set X 1... -
Page 7: Structure Diagram & Dimension
< 1.2 > Structure Diagram - ID-42Aw-LED / ID-42AwN-LED Front view Bottom view Rear case Rear view LCD panel 6mm aluminum front bazel Audio speaker, pair LCD membrane Wall-mount bracket Remote sensor Product Dimension Model (W x D x H) Weight 1033.2 x 88.8 x 627.2 mm... - Page 8 < 1.2 > Dimension - ID-42Aw-LED / ID-42AwN-LED Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
-
Page 9: Mounting Hardware & Installation
< 1.3 > Wall-mount Installation - ID-42Aw-LED / ID-42AwN-LED Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). - Page 10 < 1.3 > VESA Installation - ID-42Aw-LED / ID-42AwN-LED M6 screw VESA mount ( 100*100mm ) ■ Hardware and M6*8 pcs for VESA mount are not provided www.RackmountMart.com...
-
Page 11: Part. 2 > Id-42Pw-Led
< Part 2 > < 2.1 > Package Content - ID-42Pw-LED ID-42Pw-LED W42” FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Audio Audio DVI-D S-Video R C A HDMI www.RackmountMart.com... -
Page 12: Structure Diagram & Dimension
< 2.2 > Structure Diagram - ID-42Pw-LED Front view Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model (W x D x H) - Page 13 < 2.3 > Dimension - ID-42Pw-LED Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
- Page 14 < 2.3 > Installation - ID-42Pw-LED ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M6 screw ■ Hardware and M6*8 pcs for VESA mount are not provided www.RackmountMart.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical Aw/AwN Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount Protection 3mm protective glass Manufacturer... - Page 16 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical ID-42Aw-LED ID-42AwN-LED ID-42Pw-LED Specifi cation Product ( W x D x H ) 1033.2 x 88.8 x 627.2 1033.2 x 88.8 x 627.2 1030.2 x 80.8 x 624.2 inch 40.7 x 3.5 x 24.7...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 18 < 3.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 3.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 20 < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 21: Remote Controller ( Rc-2 )
< 3.4 > Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 22: < Part 4 > Options
< Part 4 > Options < 4.1 > Option Table Basic Option Aw / AwN Touchscreen MCS multi-screen control MIL-type / lockable connector DC Power P.17 www.RackmountMart.com... - Page 23 < 4.2 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, we provide a SDI input module without using additional space or power.
- Page 24 < 4.3 > Options : MC More control is always good. Especially when it is necessary and easy. Synergy Global Technology provides MC solution to control ( Multi-display Control ) the OSD of various Industrial LCD displays up to 64 units.
-
Page 25: Projected Capacitive ( 10-Point Touch )
< 4.4 > Options : Touchscreen & driver W42" USB Touchscreen Specifi cation Model Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 2048 x 2048 Touch Point Accuracy ± 25 mm offset Response Speed Max. 20 ms Activation Force ≤... - Page 26 < 4.5 > Options : DC Power Model Input rating Input voltage: 24-Volt 48-Volt Input range: 18 ~ 36V 36 ~ 75V Input current - No load 180 mA 90 mA - Full load 8396 mA 4198 mA Output rating Output voltage: 24-Volt 24-Volt...
-
Page 27: Mil-Type Or Lockable Connector
< 4.6 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MIL - DTL - 26482 DC Power Connector ( Male ) (MS3470W8-33P) MIL - DTL - 26482 (MS3470W14-15P) ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... -
Page 28: Tv ( Analog )
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2014 Synergy Global Technology Inc. All rights reserved. P.23 www.RackmountMart.com...
