- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

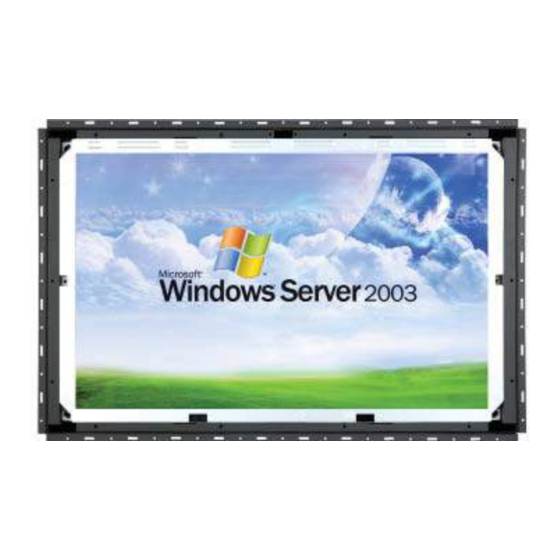

- Page 2 User Manual 30” Ultra Widescreen 2560 x 1600 LCD ID-E30Aw Aluminum front bezel ID-E30AwN Front NEMA4 / IP65 ID-E30Pw Universal Mounting Open Frame...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > ID-E30Aw / ID-E30AwN Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > ID-E30Pw Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 6: Part. 1 > Id-E30Aw / Id-E30Awn
< Part 1 > < 1.1 > Package Content - ID-E30Aw / ID-E30AwN ID-E30Aw / ID-E30AwN 30” Ultra Widescreen LCD display X 1 6ft DVI-D dual-link digital cable ( male to male ) X 1 Power cord X 1 Remote controller X 1... -
Page 7: Structure Diagram & Dimension
< 1.2 > Structure Diagram - ID-E30Aw / ID-E30AwN Front view Top view Rear case Rear view LCD panel 6mm aluminum front bazel Audio speaker, pair LCD membrane Wall-mount bracket Remote sensor Product Dimension Model (W x D x H) Weight 743.9 x 77.5 x 503.4 mm... - Page 8 < 1.2 > Dimension - ID-E30Aw / ID-E30AwN Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
-
Page 9: Mounting Hardware & Installation
< 1.3 > Wall-mount Installation - ID-E30Aw / ID-E30AwN Front wall-mount bracket Step ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). - Page 10 < 1.3 > VESA Installation - ID-E30Aw / ID-E30AwN M6 screw VESA mount ( 100*100mm ) ■ Hardware and M6*8 pcs for VESA mount are not provided www.RackmountMart.com...
-
Page 11: Package Content
< Part 2 > < 2.1 > Package Content - ID-E30Pw ID-E30Pw 30” Ultra Widescreen LCD display X 1 6ft DVI-D dual-link digital cable ( male to male ) X 1 Power cord X 1 Remote controller X 1 Basic I/O Power Display port Dual-link... -
Page 12: Structure Diagram & Dimension
< 2.2 > Structure Diagram - ID-E30Pw Front view Top view Rear case Rear view LCD panel Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model (W x D x H) - Page 13 < 2.3 > Dimension - ID-E30Pw Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
- Page 14 < 2.3 > Installation - ID-E30Pw ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M6 screw ■ Hardware and M6*8 pcs for VESA mount are not provided www.RackmountMart.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical Aw/AwN Design Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 Black, RAL 9005 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount Universal mount Protection 3mm protective glass Manufacturer... - Page 16 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical ID-E30Aw ID-E30AwN ID-E30Pw Specifi cation Product ( W x D x H ) 743.9 x 77.5 x 503.4 743.9 x 77.5 x 503.4 740.9 x 71.5 x 500.4 inch 29.3 x 3.1 x 19.8...
-
Page 17: On-Screen Display Operation ( Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light Green = On Flashing Green = Power saving Orange = Off Membrane Switch Function Power on / off LCD Display the OSD menu Scroll through menu options Exit the OSD screen Toggle analog, digital &... - Page 18 < 3.2 > On-screen Display Operation ( OSD ) PBP Settings PIP Mode : Adjust picture in picture setting PIP Position : Enter into PIP position PIP Source : Enter into the Sub source and sound source Audio Settings Mute : Turn off the surrounding sound Volume : Adjust the volume of sound...
-
Page 19: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 3.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. PBP Setting → PIP Mode → off / small / small 16:10 / large / large 16:10 / POP 4:3 / POP Main screen Sub screen Position... - Page 20 < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. PBP Setting → PIP Mode → POP Main screen Sub screen < 3.3.3 > PIP / PBP Source To select an input signal for PIP / PBP Sub screen. PBP Setting →...
-
Page 21: Remote Controller ( Rc-2 )
< 3.4 > Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV 0 - 9 [ Reserved for future use ] AUTO [ Reserved for future use ] MENU... -
Page 22: Part 4 > Options
< Part 4 > Options < 4.1 > Option Table Basic Option Aw / AwN MIL-type / lockable connector DC Power P.17 www.RackmountMart.com... - Page 23 < 4.2 > Options : DC Power Model Input rating Input voltage: 24-Volt 48-Volt Input range: 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA - Full load 7022 mA 3511 mA Output rating Output voltage: 24-Volt 24-Volt...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2014 Synergy Global Technology Inc. All rights reserved. P.19 www.RackmountMart.com...
