- Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...

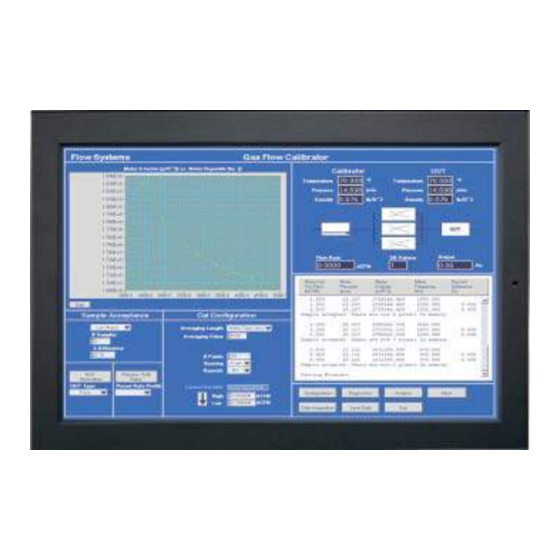

- Page 2 User Manual 21.5” Full HD LCD ID-E21Aw Aluminum front bezel ID-E21AwN Front NEMA4 / IP65 ID-E21Pw Universal Mounting Open Frame...
- Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 4: Table Of Contents
Contents < Part. 1 > ID-E21Aw / ID-E21AwN Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation P.4 - 5 < Part. 2 > ID-E21Pw Package Content Structure Diagram & Dimension P.7 - 8 Mounting Hardware & Installation <... - Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 6 < Part 1 > < 1.1 > Package Content - ID-E21Aw / ID-E21AwN ID-E21Aw / ID-E21AwN 21.5" Full-HD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack...
- Page 7 < 1.2 > Structure Diagram - ID-E21Aw / ID-E21AwN Front view Rear view Rear case LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Power HDMI DVI-D S-Video RCA Audio in - in - out...
- Page 8 < 1.2 > Dimension - ID-E21Aw / ID-E21AwN Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.rackmountmart.com...
- Page 9 < 1.3 > Panel Mount Installation - ID-E21Aw / ID-E21AwN M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■ Adjust the LCD panel with 8 x M4*50mm screws and fi x it on the surface.
- Page 10 < 1.3 > VESA mount Installation - ID-E21Aw / ID-E21AwN M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.rackmountmart.com...
-
Page 11: Package Content
< Part 2 > < 2.1 > Package Content - ID-E21Pw ID-E21Pw 21.5" Full-HD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 www.rackmountmart.com... - Page 12 < 2.2 > Structure Diagram - ID-E21Pw Front view Rear view Rear case LCD panel Audio speaker, pair Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Power HDMI DVI-D S-Video RCA Audio...
- Page 13 < 2.2 > Dimension - ID-E21Pw Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View www.rackmountmart.com...
- Page 14 < 2.3 > Installation - ID-E21Pw ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided www.rackmountmart.com...
-
Page 15: Product Specifi Cations
< Part 3 > < 3.1 > Product Specifi cations Mechanical ID-E21Aw/ID-E21AwN ID-E21Pw Design Front Panel Black, RAL 9005 Rear Casing Dark grey, RAL 7037 Dark grey, RAL 7037 VESA Mounting 100 x 100mm 100 x 100mm Other Mounting Panel mount... - Page 16 -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random ID-E21Aw/ID-E21AwN ID-E21Pw Physical Specifi cation Product ( W x D x H ) 578 x 59 x 369 mm 575 x 53 x 366 mm 22.7 x 2.3 x 14.5 inch...
-
Page 17: Osd For Basic Inputs ( Vga + Dvi-D )
< 3.2 > OSD for Basic Inputs ( VGA + DVI-D, for AD board 2.1 ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... -
Page 18: Osd For Upgrade Inputs ( Vga, Dvi-D, Hdmi, Av, Audio )
< 3.2 > OSD for Upgrade Inputs ( VGA, DVI-D, HDMI, AV and Audio, for AD board 3.0 ) Picture Picture mode : Standard / Vivid / Soft / User mode to choose Brightness : Adjust background black level of the screen image Contrast : Adjust the difference between the image background (black level) and the foreground (white level) - Page 19 < 3.2 > OSD for Upgrade Inputs ( VGA, DVI-D, HDMI, AV and Audio, for AD board 3.0 ) Auto search : Automatically search Manual search : Search the TV manual Fine tune : Fine tune the TV signal Color system : Adjust the TV color Sound system : Adjust the TV sound...
-
Page 20: Part 4 > Options
< Part 4 > Options < 4.1 > Option Table Basic Option Aw / AwN SDI *** HDMI S-Video + RCA Audio Touchscreen MC multi-display control *** DC Power MIL-type / lockable connector Quad display TV * ( 1 ) The user can only select either SDI or MC inputs. ( 2 ) For SDI or MC input, the AD board will be upgraded to version 3.0, and this comes standard with HDMI, DVI-D, VGA, S-Video, RCA , audio inputs and remote controller. - Page 21 < 4.2 > Options : 3G / HD / SD-SDI input Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, we provide a SDI input module without using additional space or power.
- Page 22 < 4.3 > Options : MC More control is always good. Especially when it is necessary and easy. Synergy Global Technology provides MC solution to control ( Multi-display Controller ) the OSD of various Industrial LCD displays up to 64 units.
- Page 23 < 4.4 > Options : Touchscreen & driver 21" USB Touchscreen Specification Multi-touch Model 5-Wire Resistive Capacitive Projected Capacitive Technology Single Single Dual Touch Point Stylus or Finger Finger Finger Method ≤ 50g / Stylus=R0.8 ≤ 50g ≤ 50g Activation Force 10 million touches 300 million touches 100 million touches...
- Page 24 < 4.4 > Options : Touchscreen & driver TMC Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. <...
- Page 25 < 4.6 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector ( MS3470W8-33P ) MIL - DTL - 26482 ( Male ) ( MS3470W14-15P ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 26 < 4.7 > Options : Quad Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate 1.0 Vpp, 75 Ohm x 4 Camera Input Video Input 1.0 Vpp, 75 Ohm x 1...
- Page 27 < 4.8 > Options : TV ( Analog ) Audio Power S-Video HDMI DVI-D in - in - out PC Video ( 1 ) For TV option, the AD board will be upgraded to version 3.0, and this comes standard with HDMI, DVI-D, VGA, S-Video, RCA , audio inputs and remote controller.
- Page 28 How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO Select the source INPUT Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds.
- Page 29 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2012 Synergy Global Technology Inc. All rights reserved. www.rackmountmart.com...
