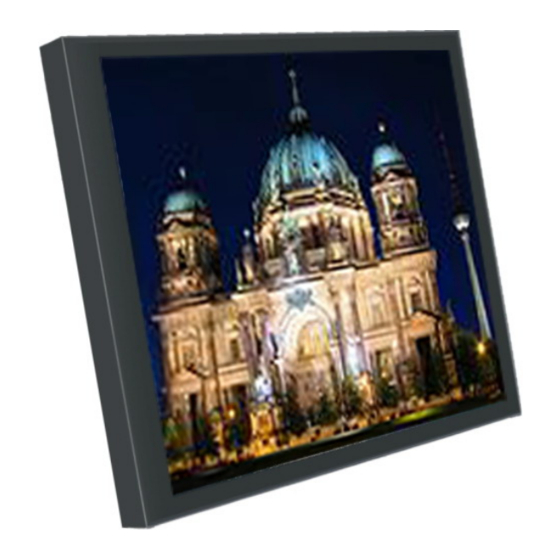

Synergy Global Technology ID-19D User Manual
  1. Manuals
  2. Brands
  3. Synergy Global Technology Manuals
  4. Monitor
  5. ID-19D
  6. User manual

Synergy Global Technology ID-19D User Manual

Hide thumbs Also See for ID-19D:
Table of Contents

Advertisement

Quick Links

Download this manual
Toll Free: 1-888-865-6888
Tel: 510-226-8368 Fax: 510-226-8968
Email: sales@RackmountMart.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-19D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Synergy Global Technology ID-19D

Summary of Contents for Synergy Global Technology ID-19D

  • Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...
  • Page 2 User Manual 19" LCD ID-19A Front aluminum LCD panel ID-19AN Front NEMA4 / IP 65 LCD panel ID-19D Stylish front aluminum cover LCD panel ID-19P Open frame LCD panel Options : - AV / BNC -DVI - Touchscreen - DC power...

  • Page 3: Table Of Contents

    Front NEMA4 / IP 65 LCD panel Package Contents.............8 Structure Diagram ................. Dimension Diagram ..............Mounting Method 11-12 ..............Chapter 4 ID-19D Stylish front aluminum cover LCD panel Package Contents............13 Structure Diagram ............... Dimension Diagram ..............Mounting Method ................ Chapter 5 ID-19P Open frame LCD panel Package Contents............17...
  • Page 4 Chapter 6 Connection ..............21 Chapter 7 Operation On-screen Display Operation........21 On-screen Menu............22 Chapter 8 LCD Specifi cation ...........23 Chapter 9 AV, BNC, DVI Options DVI-D Option..............24 S-Video + RCA Input Option..........24 S-Video + BNC Input Option..........24 On-screen Menu for DVI, BNC, S-Video & RCA Input .................25-26 Chapter 10 Touchscreen Options 10.1...

  • Page 5: Important Safeguards

    Chapter 1 1.1 Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. What the warranty does not cover ■ Any product, on which the serial number has been defaced, modifi ed or removed. ■...

  • Page 6: Before Installation

    Chapter 1 1.2 Before Installation ■ It is very important to locate the LCD Display in a suitable environment. ■ The surface for placing and fi xing the LCD Display should be stable. ■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.

  • Page 7: Chapter 2 Id-19A

    Chapter 2 2.1 ID-19A series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc Mounting bracket A x 4 pcs Mounting bracket B x 12 pcs M4*6mm screw x 8 pcs M4*50mm screw x 12 pcs...
  • Page 8 Chapter 2 2.2 ID-19A series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel SAMSUNG Class A TFT LCD panel LCD membrane 4mm protective glass ID-19A/19AN/19D/19P...
  • Page 9 Chapter 2 2.3 ID-19A series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View ID-19A/19AN/19D/19P...
  • Page 10 Chapter 2 2.4 ID-19A series Mounting Method Mounting bracket A x 4 pcs x 8 pcs Mounting bracket A M4*6mm screw Mounting bracket B x 12 pcs x 12 pcs Mounting bracket B M4*50mm screw ID-19A/19AN/19D/19P...
  • Page 11 Chapter 2 2.4 ID-19A series Mounting Method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes.

  • Page 12: Package Contents

    Chapter 3 ID-19AN series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc Mounting bracket A x 4 pcs Mounting bracket B x 12 pcs M4*6mm screw x 8 pcs M4*50mm screw x 12 pcs...
  • Page 13 Chapter 3 ID-19AN series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel SAMSUNG Class A TFT LCD panel LCD membrane 4mm protective glass (Front NEMA 4 / IP65 protection) ID-19A/19AN/19D/19P...
  • Page 14 Chapter 3 ID-19AN series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.10 ID-19A/19AN/19D/19P...

  • Page 15: Mounting Method

    Chapter 3 ID-19AN series Mounting Method Mounting bracket A x 4 pcs x 8 pcs Mounting bracket A M4*6mm screw Mounting bracket B x 12 pcs x 12 pcs Mounting bracket B M4*50mm screw P.11 ID-19A/19AN/19D/19P...
  • Page 16 Chapter 3 ID-19AN series Mounting Method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes.
  • Page 17 Chapter 4 4.1 ID-19D series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc P.13 ID-19A/19AN/19D/19P...
  • Page 18 Chapter 4 4.2 ID-19D series Structure Diagram Front View Rear View Rear case 1.2mm front aluminum cover SAMSUNG Class A TFT LCD panel LCD membrane 4mm protective glass ID-19A/19AN/19D/19P P.14...
  • Page 19 Chapter 4 4.3 ID-19D series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.15 ID-19A/19AN/19D/19P...
  • Page 20 Chapter 4 4.4 ID-19D series Mounting method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes.
  • Page 21 Chapter 5 5.1 ID-19P series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc P.17 ID-19A/19AN/19D/19P...
  • Page 22 Chapter 5 5.2 ID-19P series Structure Diagram Front View Rear View Rear case Universal open frame mounting SAMSUNG Class A TFT LCD panel LCD membrane ID-19A/19AN/19D/19P P.18...
  • Page 23 Chapter 5 5.3 ID-19P series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.19 ID-19A/19AN/19D/19P...
  • Page 24 Chapter 5 5.4 ID-19P series Mounting method UNIT : mm 1mm = 0.03937 inch Universal open frame mounting Remarks ■ Hardware for fixing the LCD display is not provided 100mm VESA standard Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided ■...

  • Page 25: Connection

    Chapter 6 6.1 Connection Power The LCD Display are hot-pluggable, but components of connected devices may Caution : not be hot-pluggable. Plugging and unplugging cables while connected devices are pow- ered on may cause irreversible damage of the devices and LCD Display. Before attempting to connect anything to the LCD Display, we suggest that turn off power to all devices before connecting them.
  • Page 26 Chapter 7 7.2 On-screen Menu MAIN MENU BRIGHTNESS/CONTRAST AUTO ADJUST PHASE/CLOCK H/V POSITION MISC RESET BRIGHTNESS / CONTRAST Brightness: Adjust background black level of the screen image. Contrast: Adjust the difference between the image background (black level) and the foreground (white level). AUTO ADJUST Auto Adjust: Fine tunes the video signal to eliminate waviness and distortion.

  • Page 27: Chapter 7 Operation

    Chapter 8 8.1 LCD Specifi cations Item Description LCD Manufacturer 19" TFT Diagonal Size 1280 x 1024 Max. Resolution Brightness (cd/m²) 16.7 Mil. Color Support 1000:1 Contrast Ratio (typ.) 160˚ x 160˚ Viewing Angle (H/V) 376 x 301 Display Area (mm) Tr Response Time (ms) 50,000 LCD Panel MTBF (hrs)

  • Page 28: Dvi-D Option

    Chapter 9 9.1 DVI-D Option Power DVI-D Remarks ■ Package includes with a 6' DVI-D cable 9.2 S-Video + RCA Input Option Remarks ■ Package includes an extra 6ft S-Video and 6ft RCA cables 9.3 S-Video + BNC Input Option Remarks ■...

  • Page 29: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input

    Chapter 9 9.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Image Brightness: Adjust background black level of the screen image Contrast: Adjust the difference between the image background (black level) and the foreground (white level) Sharpness: Adjust the image from weak to sharp Saturation: Adjust the saturation of the image color Hue:...
  • Page 30 Chapter 9 9.4 On-screen Menu for DVI, BNC, S-Video & RCA Input Display mode Main menu Sub menu S-Video √ √ √ √ Brightness √ √ √ √ Contrast √ √ √ √ Image Sharpness √ √ Saturation √ √ √...

  • Page 31: Chapter 10 Touchscreen Options

    Chapter 10 10.1 Touchscreen Options USB interface Power Serial interface Serial Power e-Resistive Model -19TRB / -19TRS 19" Screen size USB / serial Interface 82%±5% Optical transmittance ≥3H (JIS K5400) Surface hardness Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux Operating system 3M Capacitive Model...

  • Page 32: Touchscreen Quick User Guidelines

    Chapter 10 10.1 Touchscreen Options Touchscreen Quick User Guidelines e-Resistive touchscreen provides more accurate 25 points calibration for touch sensor. ■ Press [ Clear ] to clear the previous calibration records. ■ Press [ Yes ] to clear previous records. The record will bcome default record.

  • Page 33: Chapter 11 Dc Power Options

    Chapter 11 11.1 DC Power Options DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...

  • Page 34: How To Use Remote Controller

    Chapter 12 12.1 TV Tuner Options Audio-R Audio out Video Power Audio in S-Video Audio-L Remarks ■ Package includes a remote controller 12.2 How to Use Remote Controller ■ How to use remote controller, please refer to p.32-33 P.30 ID-19A/19AN/19D/19P...
  • Page 35 Chapter 13 13.1 Audio Input Options Audio in Audio-L Power Audio-R P.31 ID-19A/19AN/19D/19P...
  • Page 36 Chapter 14 14.1 Remote Controller Options POWER MUTE INPUT DISPLAY CLEA R SELEC T BACK MENU EXI T ENTER VO L AUDI O FREEZE ZOOM ASPECT ADJUST PI P SOURCE SWAP POSITION SLEEP PI P PI P AUDI O ASPECT PI P P.32 ID-19A/19AN/19D/19P...
  • Page 37 Chapter 14 14.1 Remote Controller Options Switches on or off the TV POWER Only use in TV mode. Select channels. For channel numbers 10 and above, enter the second digit within two seconds. 1 - 9 Press this button will show the current input source DISPLAY Select the input source SELECT...
  • Page 38 Chapter 15 15.1 Troubleshooting 1. How do I adjust the resolution? To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter- mined by the display card in your computer.
  • Page 39 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Synergy Global Technology Inc.All rights reserved. P.35 ID-19A/19AN/19D/19P...
