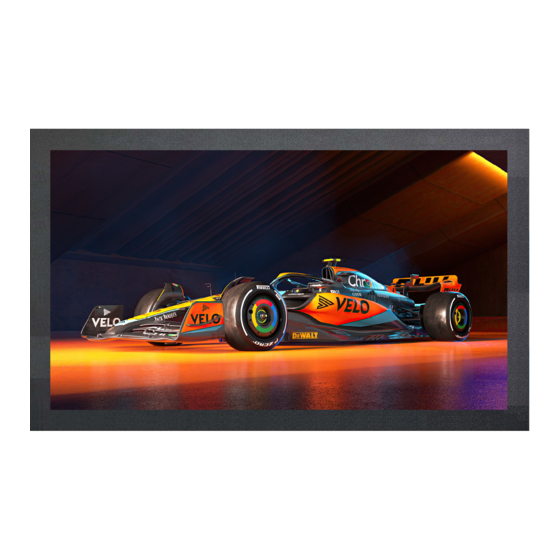

Synergy Global Technology ID-K17Aw User Manual

17" 4k 3480x2160@60hz lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-K17Aw and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Synergy Global Technology ID-K17Aw

Summary of Contents for Synergy Global Technology ID-K17Aw

  • Page 2 User Manual 17” 4K 3480 x 2160@60Hz LCD ID-K17Aw Aluminum front bezel ID-K17AwN Front NEMA4 / IP65 ID-K17Dw Aluminum front cover ID-K17Pw Universal open frame...
  • Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-K17Aw / ID-K17AwN Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > ID-K17Dw Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > ID-K17Pw Package Content Structure Diagram &...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 6 < Part 1 > ID-K17Aw / ID-K17AwN 17” 4K LCD Display < 1.1 > Package Content 17” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack...
  • Page 7 Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) 5.2 kg ID-K17Aw 11.4 lb 440.5 x 53.6 x 293 mm 17.3 x 2.1 x 11.5 inch 5.9 kg ID-K17AwN 13 lb www.RackmountMart.com...

  • Page 8: Id-K17Aw Id-K17Awn

    < 1.2 > Dimension 17” 4K LCD Display Front View Side View ID-K17Aw ID-K17AwN Rear View UNIT : mm 1mm = 0.03937 inch M6*4 pc s Bottom View www.RackmountMart.com...
  • Page 9 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. PT-BK-IDA Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 10: Package Content

    < Part 2 > ID-K17Dw 17” 4K LCD Display < 2.1 > Package Content 17” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 www.RackmountMart.com...

  • Page 11: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side View Bottom view Rear view Rear case LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) 417.9 x 51.9 x 270.4 mm 4.3 kg ID-K17Dw 16.5 x 2 x 10.6 inch...
  • Page 12 < 2.2 > Dimension 17” 4K LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 13 < 2.3 > VESA Installation VESA mount ( 100*100mm ) ■ Hardware and M6*4 pcs for VESA mount are not provided www.RackmountMart.com...

  • Page 14: Id-K17Pw

    < Part 3 > ID-K17Pw 17” 4K LCD Display < 3.1 > Package Content 17” 4K LCD Display X 1 6ft DP cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 www.RackmountMart.com...

  • Page 15: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Product Dimension Model Net Weight (W x D x H) 437.5 x 47.6 x 290 mm 3.4 kg ID-K17Pw 17.2 x 1.9 x 11.4 inch...
  • Page 16 < 3.2 > Dimension 17” 4K LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch M6*4 pc s Bottom View P.11 www.RackmountMart.com...
  • Page 17 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) Hardware and M6*4 pcs for VESA mounting are not provided P.12 www.RackmountMart.com...

  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations 17” 4K LCD Display Mechanical Design ID-K17Aw ID-K17AwN ID-K17Dw ID-K17Pw Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005...
  • Page 19 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi cation ID-K17Aw ID-K17AwN ID-K17Dw ID-K17Pw Product ( W x D x H ) 440.5 x 53.6 x 293 417.9 x 51.9 x 270.4 437.5 x 47.6 x 290...

  • Page 20: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) 17” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen...
  • Page 21 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the diff erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
  • Page 22 < 4.2 > On-screen Display Operation ( OSD ) 17” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...

  • Page 23: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position...
  • Page 24 17” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...

  • Page 25: Option Table

    < Part 5 > Options < 5.1 > Option Table Options Aw / AwN Remote controller MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power P.20 www.RackmountMart.com...

  • Page 26: Remote Controller ( Rc )

    < 5.2 > Remote Controller ( RC ) 17” 4K LCD Display INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
  • Page 27 < 5.3 > Options : 12G / 4K60 / SD-SDI Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with displays, a SDI input module can support up to 3840 x 2160p @60Hz resolution without using additional space or power.

  • Page 28: Hd / Sd-Sdi Input

    < 5.4 > Options : 3G / HD / SD-SDI input 17” 4K LCD Display Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.
  • Page 29 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Synergy Global Technology provides MC solution to control the OSD of various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the Þ...

  • Page 30: Touchscreen & Driver

    < 5.6 > Options : Touchscreen & driver 17” 4K LCD Display K17" USB Touchscreen Specifi cation Model Resistive Multi-touch Technology Projected Capacitive 5-Wire Resistive Touch Point Single Input Type Finger or Capacitive Stylus Finger or Stylus Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±...
  • Page 31 < 5.5 > Options : Touchscreen & driver TPC Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB Driver Please follow the below steps to setup the touch screen:- Step 1.
  • Page 32 < 5.7 > Options : DC Power 17” 4K LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...

  • Page 33: Mil-Type Or Lockable Connector

    The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Synergy Global Technology Inc. All rights reserved. P.28 www.RackmountMart.com...

This manual is also suitable for:

Id-k17awnId-k17dw
