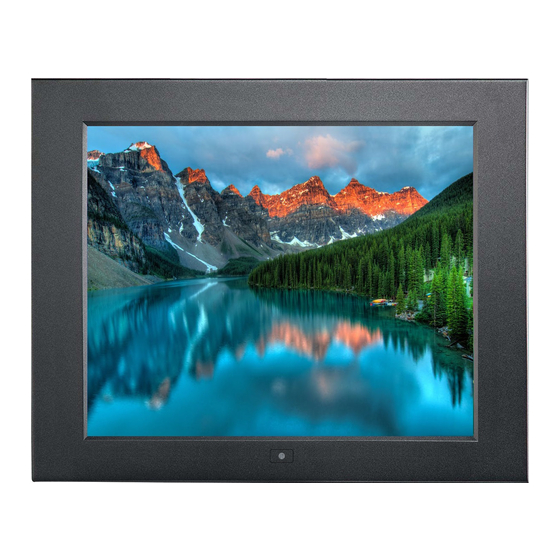

Sunreadable open frame lcd panel
Hide thumbs Also See for ID-H17A:

Advertisement

Quick Links

Toll Free: 1-888-865-6888
Tel: 510-226-8368 Fax: 510-226-8968
Email: sales@RackmountMart.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-H17A and is the answer not in the manual?

Questions and answers

Summary of Contents for Synergy Global Technology ID-H17A

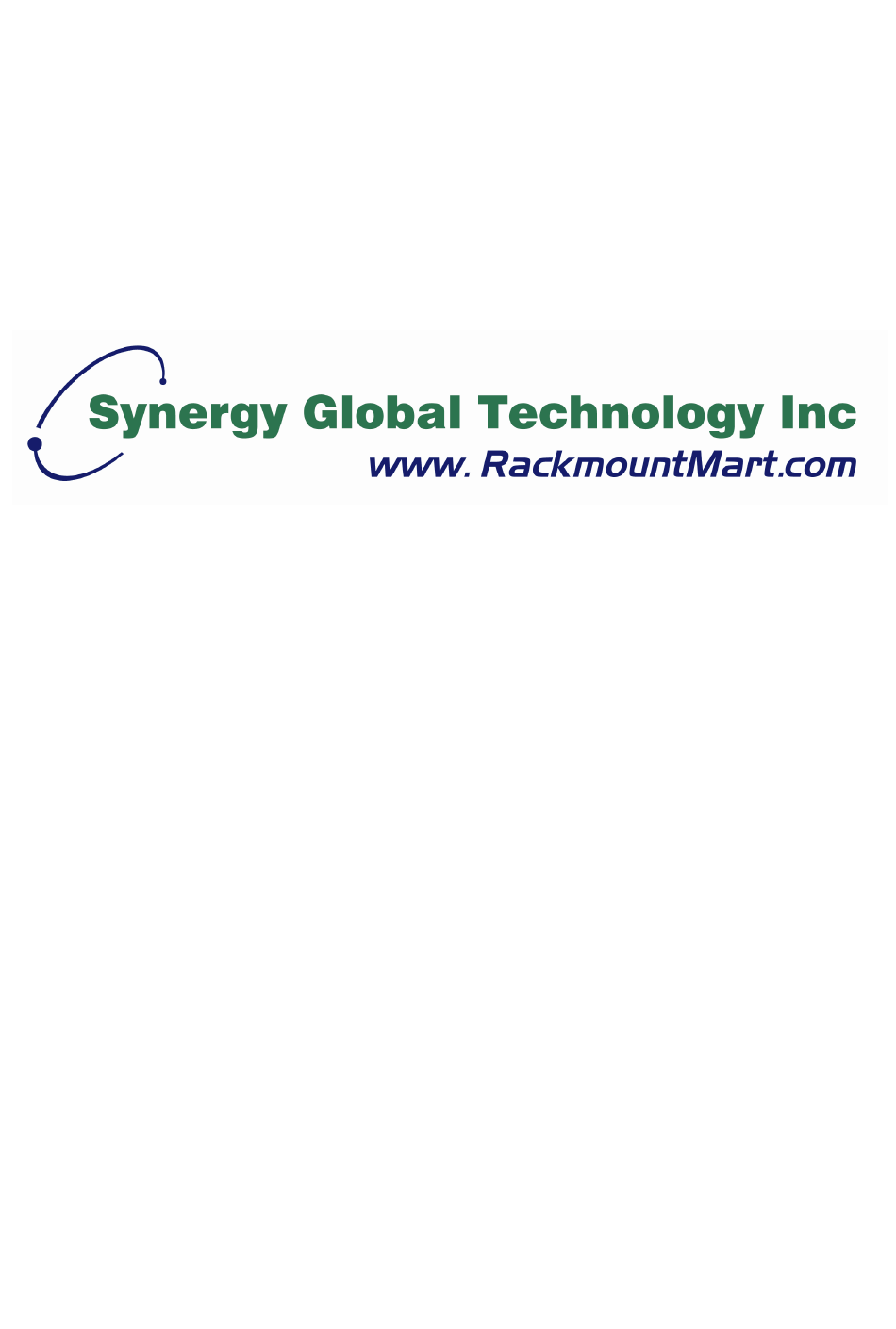

  • Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...
  • Page 2 User Manual 17" SunReadable LCD ID-H17A Front aluminum LCD panel ID-H17AN Front NEMA4 / IP 65 LCD panel ID-H17D Stylish front aluminum cover LCD panel ID-H17P Open frame LCD panel Options : - AV / BNC - DVI - Touchscreen...
  • Page 3: Table Of Contents

    Contents Chapter 1 Getting Started Important Safeguards............1 Before Installation..............2 Unpacking................2 Optional Accessories............2 Chapter 2 ID-H17A SunReadable front aluminum LCD panel Package Contents.............3 Structure Diagram ................. Dimension Diagram ..............Mounting Method ..............Chapter 3 ID-H17AN SunReadable front NEMA4 / IP 65 LCD panel Package Contents.............8...
  • Page 4 Chapter 6 Connection ..............21 Chapter 7 Operation On-screen Display Operation........21 On-screen Menu............22 Chapter 8 LCD Specifi cation ...........23 Chapter 9 AV, BNC, DVI Options DVI-D Option..............24 S-Video + RCA Input Option..........24 S-Video + BNC Input Option..........24 On-screen Menu for DVI, BNC, S-Video & RCA Input ...................25-26 Chapter 10 Touchscreen Options 10.1...
  • Page 5: Important Safeguards

    Causes external to the product, such as electric power fl uctuation or failure. □ Use of supplies or parts not meeting our specifi cations. □ Normal wear and tear. □ Any other causes which does not relate to a product defect. ■ Removal, installation, and set-up service charges. ID-H17A/H17AN/H17D/H17P...
  • Page 6: Before Installation

    If anything is missing, or damage, contact the supplier immediately. 1.4 Optional Accessories 1. Power Cord 1.1 IEC power cord 1.2 NEMA 5-15 power cord (US) 1.3 BS 1363 power cord (UK) 1.4 CEE 7/4 power cord (German) 1.5 AS 3112 power cord (Australia) ID-H17A/H17AN/H17D/H17P...
  • Page 7 Auto switch power adapter x 1 pc Mounting bracket A x 4 pcs Mounting bracket B x 12 pcs M4*6mm screw x 8 pcs M4*50mm screw x 12 pcs Remarks ■ ID-H17A Series mounting bracket set includes item 6 - 9, please refer to p.6-7 ID-H17A/H17AN/H17D/H17P...
  • Page 8 Chapter 2 2.2 ID-H17A series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel Class A TFT LCD panel LCD membrane 4mm protective glass ID-H17A/H17AN/H17D/H17P...
  • Page 9 Chapter 2 2.3 ID-H17A series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View ID-H17A/H17AN/H17D/H17P...
  • Page 10 Chapter 2 2.4 ID-H17A series Mounting Method Mounting bracket A x 4 pcs x 8 pcs Mounting bracket A M4*6mm screw Mounting bracket B x 12 pcs x 12 pcs Mounting bracket B M4*50mm screw ID-H17A/H17AN/H17D/H17P...
  • Page 11 Chapter 2 2.4 ID-H17A series Mounting Method 100mm VESA standard UNIT : mm 1mm = 0.03937 inch Remarks ■ Hardware and M4*4 pcs for VESA mounting is not provided ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes.
  • Page 12: Package Contents

    Auto switch power adapter x 1 pc Mounting bracket A x 4 pcs Mounting bracket B x 12 pcs M4*6mm screw x 8 pcs M4*50mm screw x 12 pcs Remarks ■ ID-H17AN Series mounting bracket set includes item 6 - 9, please refer to p.11-12 ID-H17A/H17AN/H17D/H17P...
  • Page 13 Chapter 3 ID-H17AN series Structure Diagram Front View Rear View Rear case 6mm aluminum front bezel Class A TFT LCD panel LCD membrane 4mm protective glass (Front NEMA 4 / IP65 protection) ID-H17A/H17AN/H17D/H17P...
  • Page 14 Chapter 3 ID-H17AN series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.10 ID-H17A/H17AN/H17D/H17P...
  • Page 15: Mounting Method

    Chapter 3 ID-H17AN series Mounting Method Mounting bracket A x 4 pcs x 8 pcs Mounting bracket A M4*6mm screw Mounting bracket B x 12 pcs x 12 pcs Mounting bracket B M4*50mm screw P.11 ID-H17A/H17AN/H17D/H17P...
  • Page 16 ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause damage to your display P.12 ID-H17A/H17AN/H17D/H17P...
  • Page 17 Chapter 4 4.1 ID-H17D series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc P.13 ID-H17A/H17AN/H17D/H17P...
  • Page 18 Chapter 4 4.2 ID-H17D series Structure Diagram Front View Rear View Rear case 1.2mm front aluminum cover Class A TFT LCD panel LCD membrane 4mm protective glass ID-H17A/H17AN/H17D/H17P P.14...
  • Page 19 Chapter 4 4.3 ID-H17D series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.15 ID-H17A/H17AN/H17D/H17P...
  • Page 20 ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause damage to your display ID-H17A/H17AN/H17D/H17P P.16...
  • Page 21 Chapter 5 5.1 ID-H17D series Package Contents LCD display x 1 pc 6' VGA cable (male to male) x 1 pc User manual x 1 pc Power cord x 1 pc Auto switch power adapter x 1 pc P.17 ID-H17A/H17AN/H17D/H17P...
  • Page 22 Chapter 5 5.2 ID-H17P series Structure Diagram Front View Rear View Rear case Universal open frame mounting Class A TFT LCD panel LCD membrane ID-H17A/H17AN/H17D/H17P P.18...
  • Page 23 Chapter 5 5.3 ID-H17P series Dimension Diagram UNIT : mm 1mm = 0.03937 inch Front View Rear View P.19 ID-H17A/H17AN/H17D/H17P...
  • Page 24 ■ To avoid damage of internal components, when mounting the VESA bracket, do not use screws that exceed the depth (6mm) of the display mounting holes. Using screws that are too long may cause damage to your display P.20 ID-H17A/H17AN/H17D/H17P...
  • Page 25: Connection

    Display the OSD menu Scrolls through menu options and adjusts the displayed control Exit the OSD screen Shortcut key to auto adjustment by pressed the button for 5 seconds Toggle analog, digital & video connection (DVI-D and video options only) P.21 ID-H17A/H17AN/H17D/H17P...
  • Page 26 Select the screen color - 5500K, 6500K & 9500K. The factory default is 9500K. Language: Select the language in which the OSD menu is displayed - English, Chinese (中文), Japanese (日本語), German, French, Spanish, Italian Restore the settings to factory defaults. RESET P.22 ID-H17A/H17AN/H17D/H17P...
  • Page 27: Chapter 7 Operation

    DC power input with 12V, 24V, 48V selection Touchscreen Resistive and capacitive Environmental Operation 0˚ to 50˚C Degree Storage -5˚ to 60˚C Degree Relative Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random vibration P.23 ID-H17A/H17AN/H17D/H17P...
  • Page 28: Dvi-D Option

    Package includes with a 6' DVI-D cable 9.2 S-Video + RCA Input Option Power S-Video Remarks ■ Package includes an extra 6ft S-Video and 6ft RCA cables 9.3 S-Video + BNC Input Option Power S-Video Remarks ■ Package includes an extra 6ft S-Video cable P.24 ID-H17A/H17AN/H17D/H17P...
  • Page 29: On-Screen Menu For Dvi, Bnc, S-Video & Rca Input

    Power OFF: Function is not supported Reset: Recall returns the adjustments back to factory settings. The current resolution and refresh rate information show on the top right hand side Note : of the screen when the LCD powered on. P.25 ID-H17A/H17AN/H17D/H17P...
  • Page 30 Color Temp √ √ √ √ Language √ √ √ √ Time System √ √ √ √ Power OFF √ √ √ √ Reset Sign Represent √ Available and adjustable Available but not adjustable Not available and adjustable P.26 ID-H17A/H17AN/H17D/H17P...
  • Page 31: Chapter 10 Touchscreen Options

    Serial touchscreen package includes an extra 6ft serial cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully. P.27 ID-H17A/H17AN/H17D/H17P...
  • Page 32: Touchscreen Quick User Guidelines

    After the calibration, the new record will overwrite the old one. Caution : ■ At the fi rst assembly of touch screen, we suggest applying 25 points calibration. ■ For a more accurate calibration of touch screen, please apply 25 points calibration. P.28 ID-H17A/H17AN/H17D/H17P...
  • Page 33: Chapter 11 Dc Power Options

    50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A Effi ciency Remarks ■ Package does not include power cord and AC power adapter P.29 ID-H17A/H17AN/H17D/H17P...
  • Page 34: How To Use Remote Controller

    Chapter 12 12.1 TV Tuner Options Audio-R Audio out Video Power Audio in S-Video Audio-L Remarks ■ Package includes a remote controller 12.2 How to Use Remote Controller ■ How to use remote controller, please refer to p.32-33 P.30 ID-H17A/H17AN/H17D/H17P...
  • Page 35 Chapter 13 13.1 Audio Input Options Audio in Audio-L Power Audio-R P.31 ID-H17A/H17AN/H17D/H17P...
  • Page 36 14.1 Remote Controller Options POWER MUTE INPUT DISPLAY CLEA R SELEC T BACK MENU EXI T ENTER VO L AUDI O FREEZE ZOOM ASPECT ADJUST PI P SOURCE SWAP POSITION SLEEP PI P PI P AUDI O ASPECT PI P P.32 ID-H17A/H17AN/H17D/H17P...
  • Page 37 Swap the input source with Main Channel and PIP Channel SWAP Set the position of the PIP screen: BOTTOM-LEFT, BOTTOM-RIGHT, TOP-LEFT, TOP-RIGHT POSITION Alternate the main screen speaker or PIP screen speaker PIP AUDIO Set the PIP display aspect ratio mode: FULL SCREEN, PILLAR BOX PIP ASPECT P.33 ID-H17A/H17AN/H17D/H17P...
  • Page 38 The touchscreen will be aged after a certain period of consumption or under harsh environment. It is normal. The touchscreen driver has an utility to adjust the situation. The calibration point can be more on the touch screen. P.34 ID-H17A/H17AN/H17D/H17P...
  • Page 39 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2008 Synergy Global Technology Inc.All rights reserved. P.35 ID-H17A/H17AN/H17D/H17P...
