Danfoss EKE 1C Installation Manual page 6

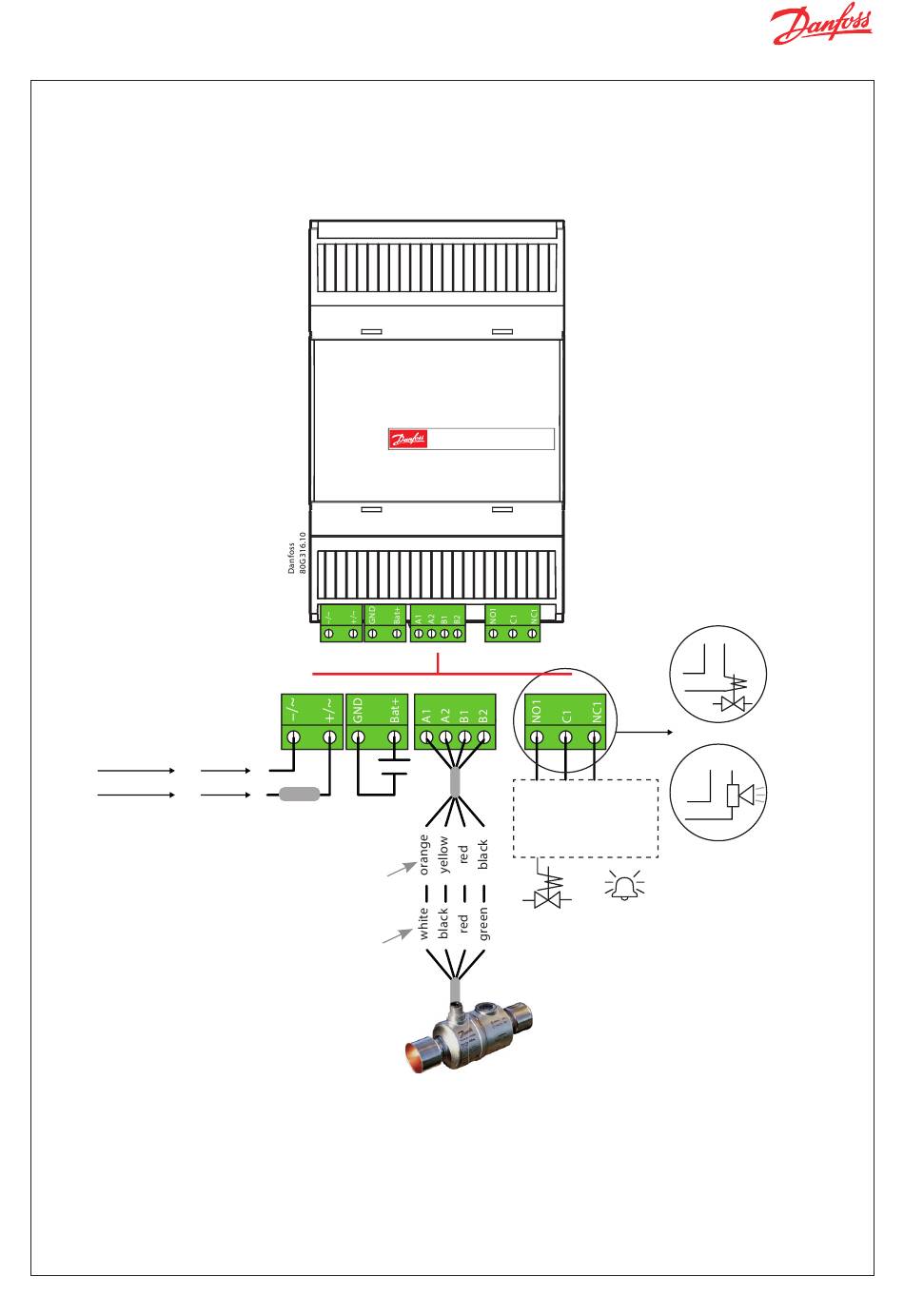

EKE 1C - Back board
connection overview
power supply
–
+
24 V AC 24 V DC
± 20% ± 20%
© Danfoss | Climate Solutions | 2023.10
Superheat controller
Superheat controller
EKE 1C - 080G5400
+
18 V
2.5 A batt
T fuse backup
(optional) (optional)
ETS 6 valves
ETS / KVS
Colibri® and
CCMT valves
Power
Alarm Relay
Power
Normally open or
normally closed
(optional)
Alarm
ON/OFF
solenoid
valve
AN269954243889en-000905 | 6
C1 NO1
C1 NC1
