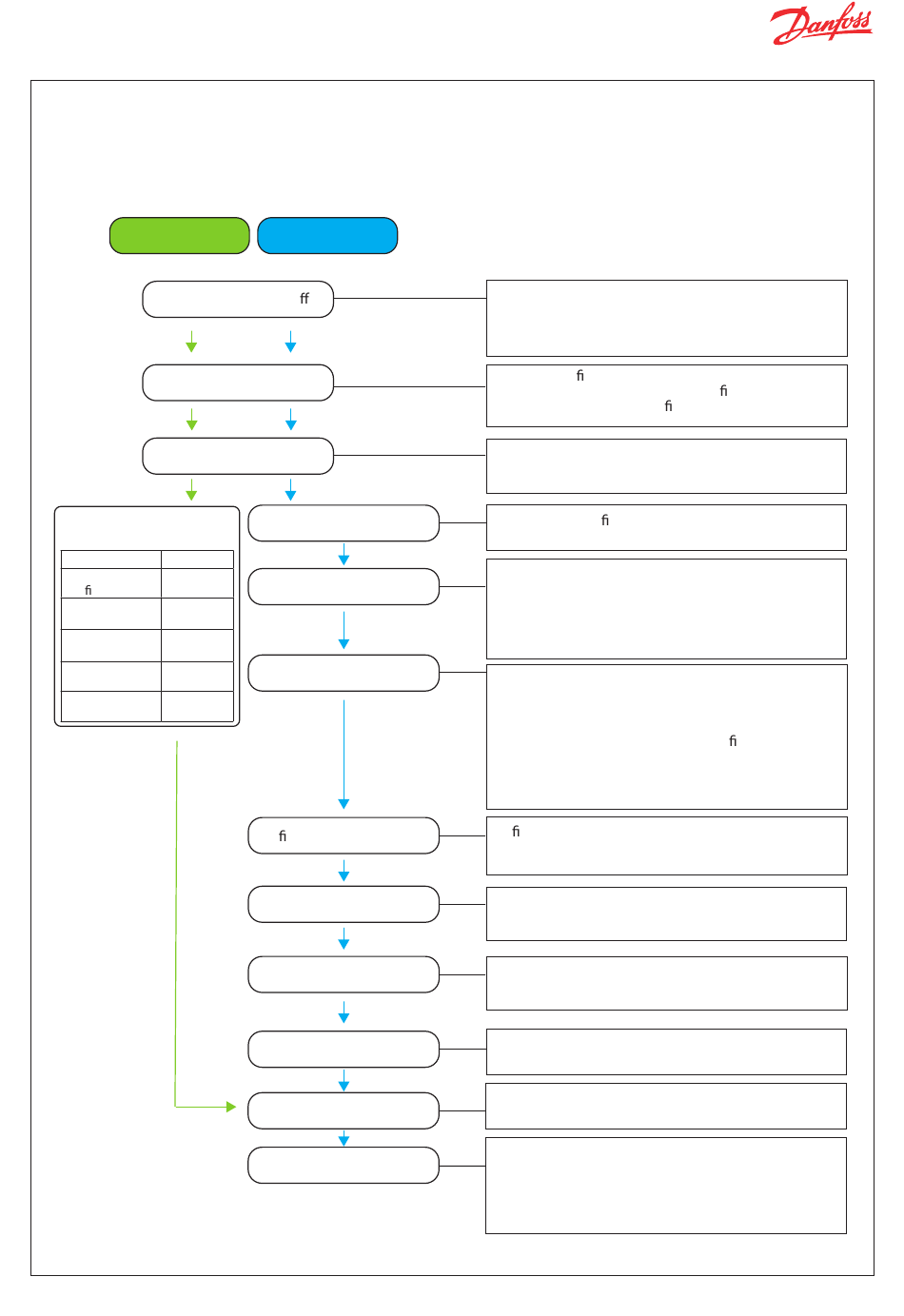

Quick guide for parameter selection
Apart from wizard setup, users can also use the following section which describes quick parameter
settings for general applications.
Driver
Start : Main switch= O
Select valve type
Application mode
Driver- Controller
Analog signal type e.g
1-5V / 0-20 mA
EKE 1C Parameters
Driver reference
I033
con guration
Ext.ref.volt-
I034
age,low
Ext.ref.volt-
I035
age,high
Ext.ref.cur-
I036
rent,low
Ext.ref.cur-
I037
rent,high
© Danfoss | Climate Solutions | 2023.10
Controller
Select Refrigerant
Select Temperature sensor
Select Pressure transmitter
De ne Min/Max Pressure
Select Superheat Control
Set Min/Max Ref value
Select Other features
Finish: main switch = ON
DI1 = ON
Make sure that main switch is OFF before changing
the settings. The setting will depend on the system
requirement.
Parameter: R012 Main Switch
Select prede ned Danfoss valve type ETS, ETS C, KVS,
KVS C, CCM, CCMT, CTR, or user de ned.
Parameter: I067 Valve con guration
Select how you want to use EKE: driver or superheat
controller.
Parameter: R102 Operation mode
Select the prede ned refrigerant
Parameter: O030 Refrigerant
Select Temperature sensor type: EKS, ACCPBT,
MBT,Sensata 112CP, Bus Shared, AKS
Parameter: I040 - S2 sensor.
Check parameter list for other sensors.
Select Pressure transmitter type –AKS 32R,
Sensata 112CP, OEM Ratio, NSK , AKS 32 1 - 5V,
OEM Voltage, Bus shared, AKS 32 1 - 6V, AKS 32 0 - 10V,
AKS 33, XSK, ACCPBP Current , OEM Current
Parameter: I043 - Pe transmitter con guration.
Check parameter list for other sensors.
De ne min and max Pressure transmitter in barg.
Parameter: O020 - Pe min., O021 Pe max., Check
parameter list for other sensors.
Select application control type SH control. 1: MSS,
2: LoadAp, 3: Fixed, 4: Delta SH.
Parameter: N021 SH reference mode.
Set the value for the selected control min./max.
superheat reference.
Parameter N009 SH max., N010 - SH min.
Optional – Force start up, MOP, LOP, Alarm,
Thermostat function.
Check parameter list for details.
Remember to turn on main switch to start 'ON' .
Parameter R012 Main switch.
'ON' = Regulation start
Parameter O002: 0 = Bus –> Start / Stop 1 = Main Switch
If DI1 is not used to make a short circuit with a wire
