Danfoss EKE 1C Installation Manual page 5

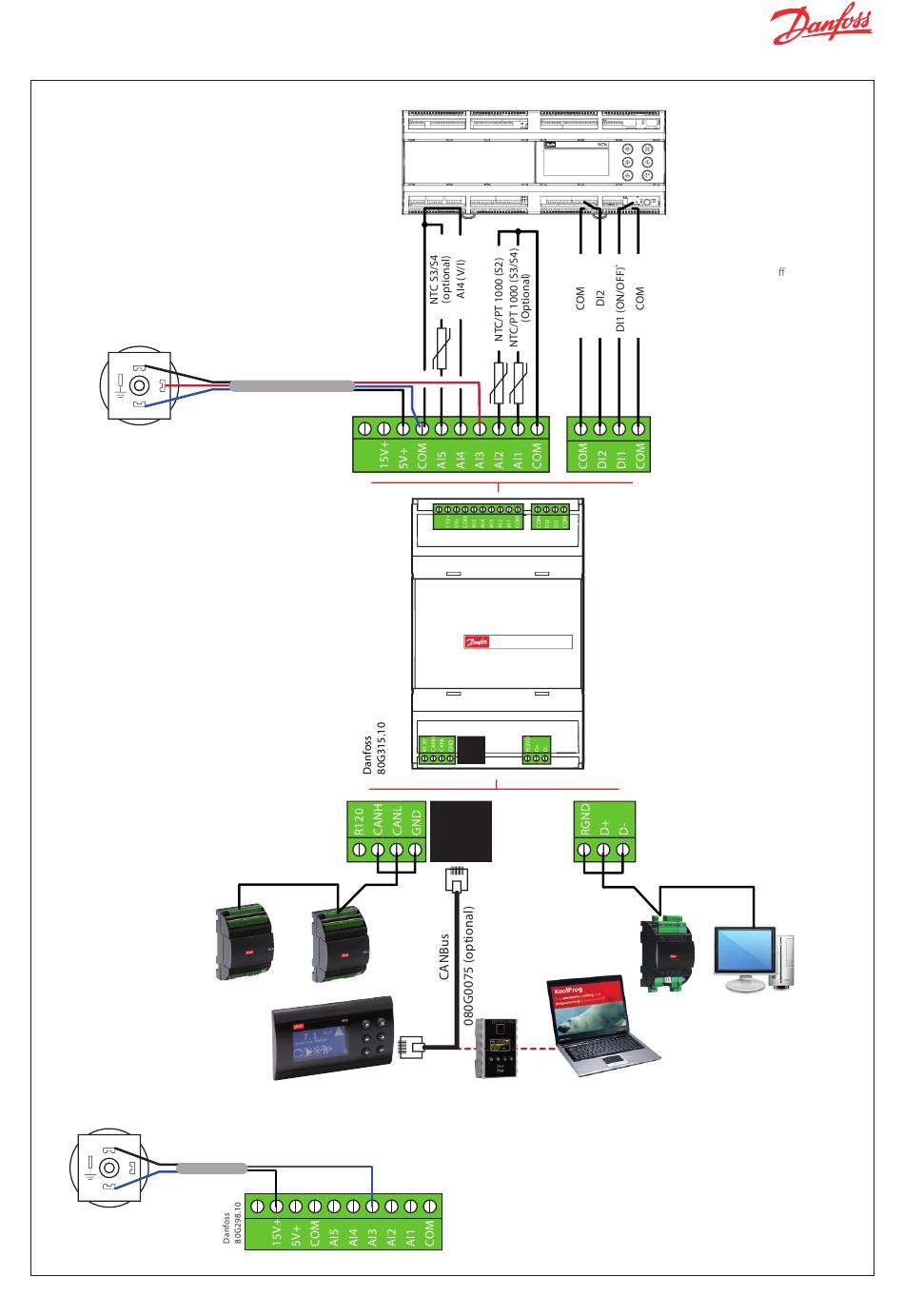

EKE 1C - Front board
connection overview
Pressure Transmitter
Ratiometric 0.5 – 4.5 V
1
3
2
e.g. AKS 32R
Connection for 4 – 20 mA
Pressure Transmitter
1
3
2
e.g. AKS 33
© Danfoss | Climate Solutions | 2023.10
AKS cable
connection
060G1034
CANBus Local network
MMIGRS display
080G0294 (optional)
Master controller
C C C
Superheat controller
Superheat controller
EKE 1C - 080G5400
CAN RJ
CAN RJ
CAN RJ
KoolProg
MMIMYK
Gateway
EKE 1C analog input at terminal 1 - 5
For other transmitter types, check
EKE data sheet.
* Note: If Dl1(On/O ) switch
is not used it must be short
circuited
RS485 RTU MODBus
supervisor
EKE /
network
master
controller
PC tool
AN269954243889en-000905 | 5
