Part 3. Usage
Direct reading of the measured values and configuration of the meter can be accessed via the controls on
the front panel of the display.

Measurements displayed on the LCD screen

The LE-01MW v.2 meter allows you to display many values measured and registered by the meter.
Switching to the next parameter is done by short pressing the button located on the front panel of the
meter. By default, the meter is also configured to cycle between measured values.
The list of measurements available from the LCD display is summarised in the table below.
No
1 Total active energy
2 Active energy imported
3 Active energy exported
4 Total reactive energy
5 Inductive reactive energy imported
6 Inductive reactive energy exported
LE-01MW v.2 – User manual v.1.0.1

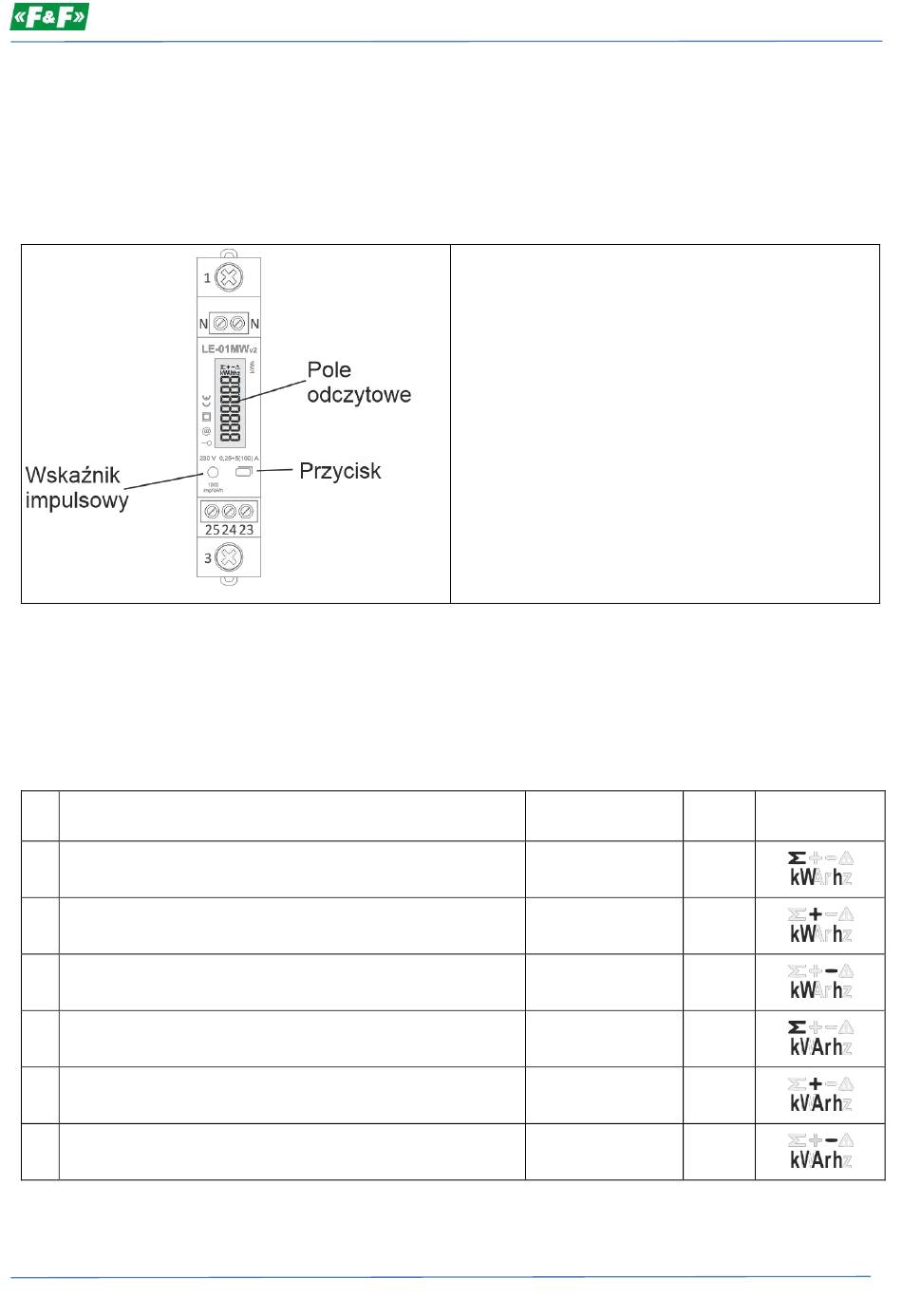

Feature
Reading field [Pole odczytowe] – LCD digital
indicator displaying the value of the measured
parameter.
Button [Przycisk]– touch button. A short press of
the button switches the view to the next displayed
parameter. Long press activates the meter
configuration mode.
Pulse indicator [Wskaźnik impulsowy] – the blinks
of this LED correspond to the registered increase in
active energy consumption. A single blink is
equivalent to the consumption of 1 Wh of energy
(1000 pulses = 1 kWh).
Format
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
00000.00 (5+2)
Unit
Symbol
kWh
kWh
kWh
kvarh
kvarh
kvarh
