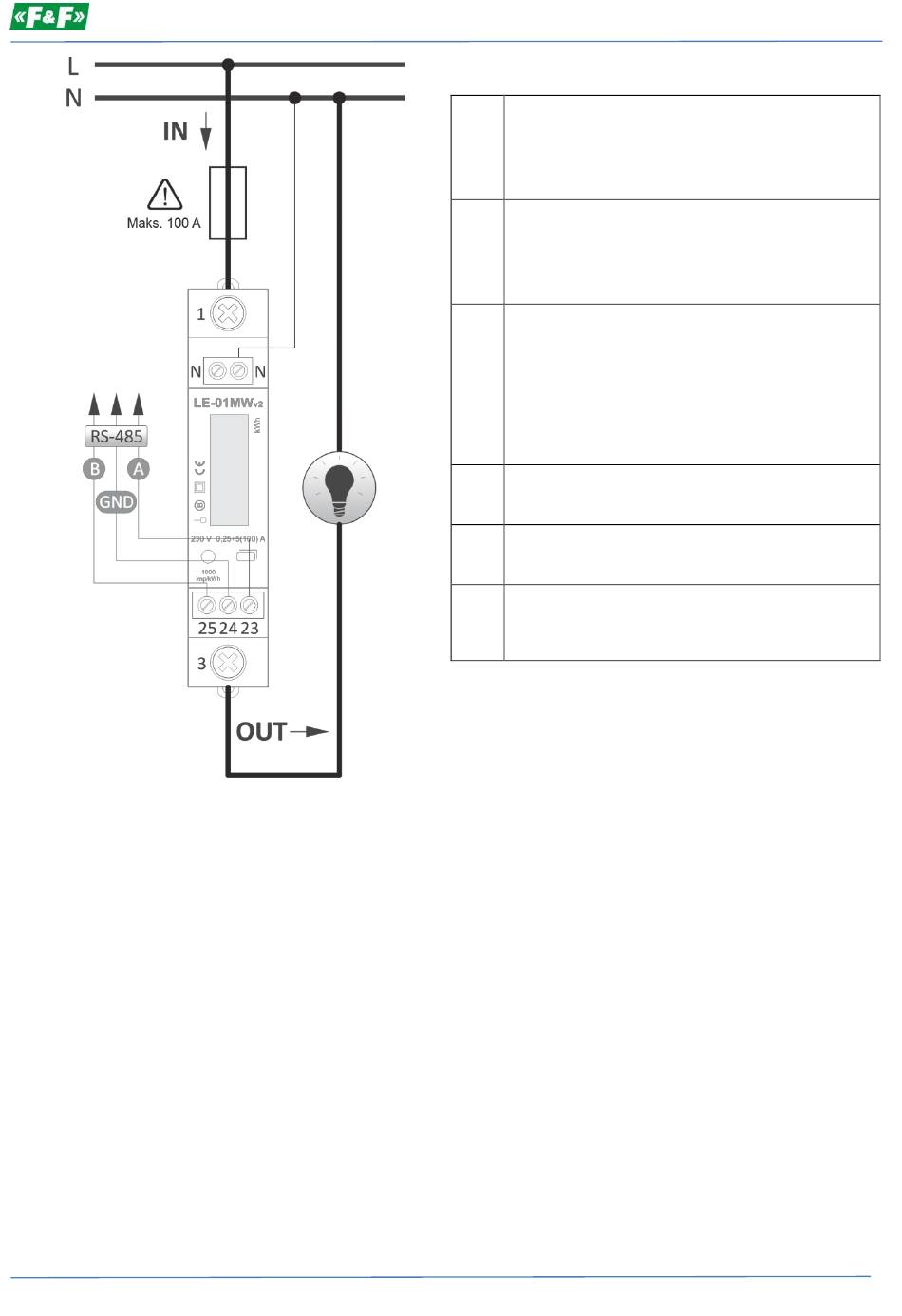

Functions of the meter terminals
Meter current input – connection of the
1
phase wire of the power supply line. High
current cable
Current output - phase wire output to
3
supply power to the receiver. High current
cable
Neutral wire input. This connection is only
used to supply the meter and to measure
N
the voltage, therefore a large diameter
cable is not required.
23 Modbus RS-485 communication output –
line A
25 Modbus RS-485 communication output –
line B
Ground (GND) of the RS485 communication
24
interface.
