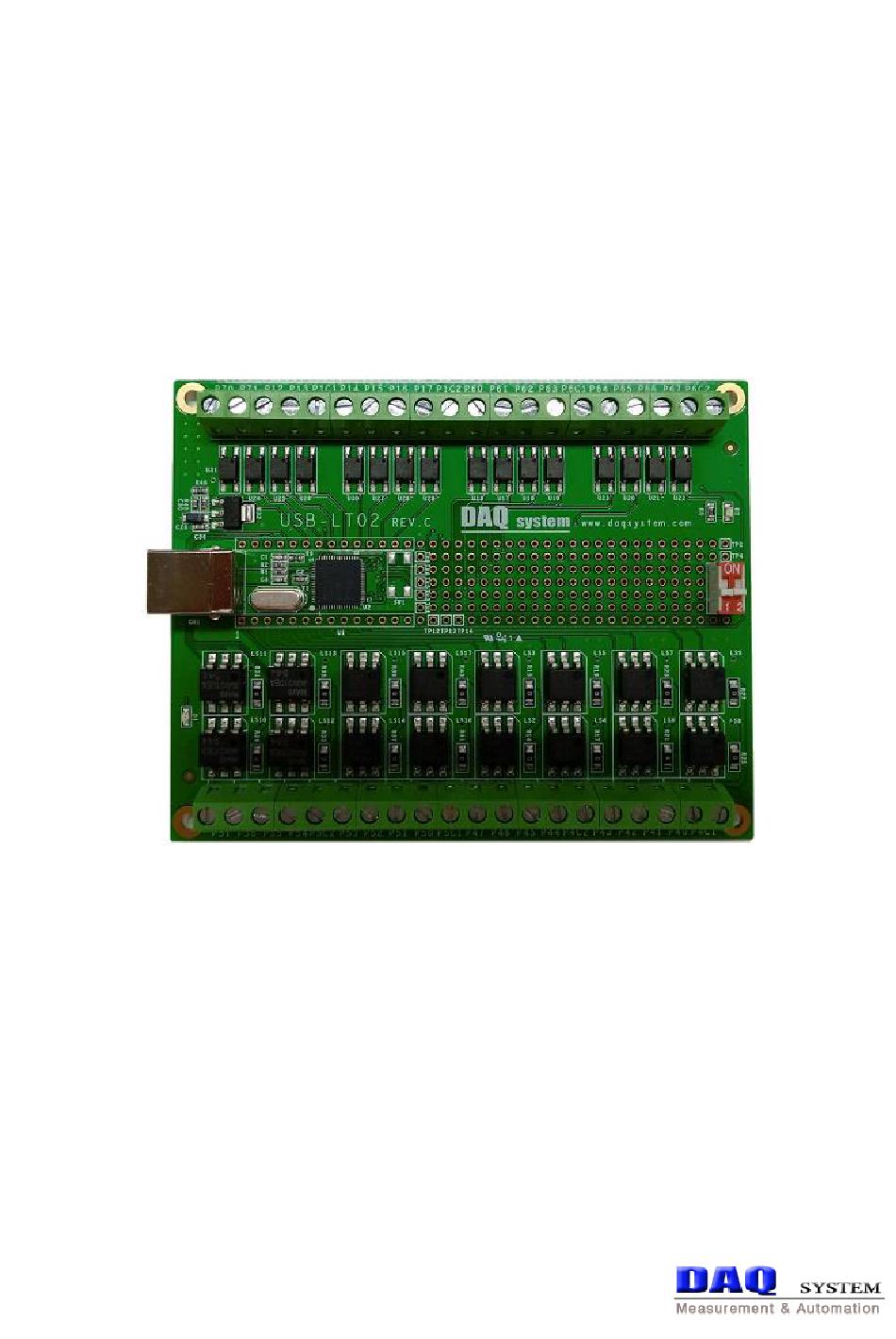

USB-LT02_B
User Manual
Version 1.4
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system USB-LT02 B
Summary of Contents for DAQ system USB-LT02 B
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
USB-LT02_B User’s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 1-2 Accessary ------------------------------------------------------------------------ 1-3 Product Applications ------------------------------------------------------------------------ 2. Installation 2-1 Product Contents ------------------------------------------------------------------------ 2-2 Installation Process ------------------------------------------------------------------------ 3. USB-LT02_B Board Description 3-1 Board Layout ------------------------------------------------------------------------ 3-2 Board Description ------------------------------------------------------------------------ 3-2-1 USB2.0 B-Type Connector ------------------------------------------------------- 3-2-2 J8 Switch ------------------------------------------------------------------... -
Page 3: Introduction
USB-LT02_B User’s Manual 1. Introduction 1-1 Product Features Item Description Remark Hardware PC Interface USB2.0 (HID I/F) B-Type Operating Power +5VDC/ 500mA USB Power Input/Output Terminal Terminal Block Input/Output Terminal 16 Isolated Photo Coupler Input 16 Isolated Photo MOS Relay Output Input Range 12~24V... -
Page 4: Accessary
USB-LT02_B User’s Manual 1-2 Accessary A to B USB2.0 Cable Case (Sold Separately) -
Page 5: Product Applications
USB-LT02_B User’s Manual 1-3 Product Applications -. Home Automation -. Factory Automation -. USB2.0 I/O Control and Remote Control -. USB2.0 Data Acquisition (Temperature, Humidity, Voltage, Current etc.) -. Industry Control Module -. Lighting Control [Application example] 220V lamp On/Off control... -
Page 6: Installation
USB-LT02_B User’s Manual 2. Installation Before installation, check whether the contents of the package are abnormal. 2-1 Package Contents -. USB-LT02_B Board -. USB2.0(A to B) Cable -. Storage device that stores manuals, sample programs, etc. -
Page 7: Installation Process
USB-LT02_B User’s Manual 2-2 Installation Process To install the USB-LT02_B board on the PC, follow the steps below. In the case of USB, since it is a Hot Plug and Plug & Play device, there is no special consideration for installing the USB-LT02_B board. - Page 8 USB-LT02_B User’s Manual (4) Check whether the connection is normally established in the following way. On the My Computer -> Properties -> Device Manager screen, check if 'HID Standard Supplier Defined Device' or 'HID Compliant Device' appears in 'Human Interface Device'. If it appears as shown in [Figure 2-4], the installation has been completed normally.
-
Page 9: Usb-Lt02_B Board Description

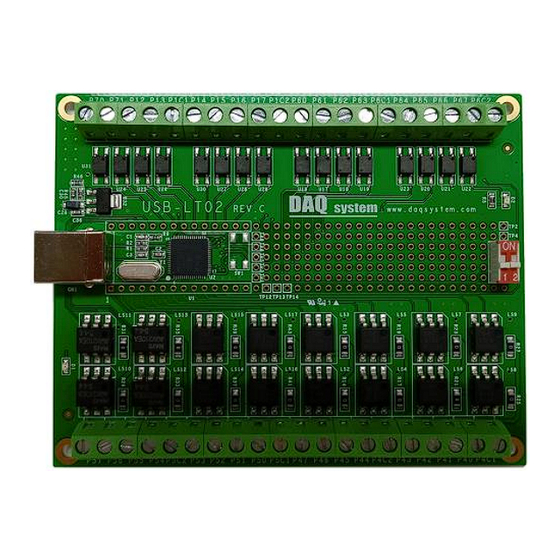

USB-LT02_B User’s Manual 3. USB-LT02_B Board Description 3-1 Board Layout [Figure 3-1. USB-LT02_B Layout]... -
Page 10: Board Description
USB-LT02_B User’s Manual 3-2 Board Description USB-LT02_B is an I/O board that allows developers who do not know USB at all to simply control external devices by using the provided API. External I/O connection can be easily connected using screw terminals, and a test point is provided on a separate universal board to test simple circuits on its own universal board. -
Page 11: Usb2.0 B-Type Connector
USB-LT02_B User’s Manual 3-2-1 USB2.0 B-Type Connector Insert the A to B USB2.0 cable into this connector and connect it to the PC. Through this, power is supplied and data is transmitted and received. For USB2.0 B type connector, refer to [Figure 3-3] and [Table 3-1] below. -
Page 12: D1 Led
USB-LT02_B User’s Manual [Table 2. Board ID setting Table] Board ID 3-2-3 D1 LED When USB2.0 Port of PC and USB-LT02_B are connected, USB Power(+5V) is supplied to USB-LT02_B and this LED is turned on. 3-2-4 D2 LED Lights up when all input/output terminals of the USB-LT-2_B board are set as output. Used in sample programs. - Page 13 USB-LT02_B User’s Manual The input terminal is a photo coupler, and the input voltage range is 12V ~ 24V. (For less than 12V, please contact us) It is designed so that there is no power polarity, and one common terminal is used per 4 input terminals.
-
Page 14: Output Terminal
USB-LT02_B User’s Manual For example, if GND is connected to P1C1 (common terminal) and the voltage level of the signal input to P70 is 12V, the input of USB-LT02_B is ON. (The polarity of the input voltage is irrelevant.) [Table 4. Input Terminal Operation] USB-LT02_B Operation 3-2-8 Output Terminal... - Page 15 USB-LT02_B User’s Manual The circuit between the common terminal and the output terminal is shown in [Figure 3-8]. [Figure 3-8. Photo MOS Relay Output Circuit] For example, MICOM gives a Logic Low signal (GND) to Port4.0 to make P4C1 and P40 conduct.
-
Page 16: In/Out Terminal Pin Map
USB-LT02_B User’s Manual 3-3 In/Out Terminal Pin Map For pin-out of Screw Terminal Connector for external input/output connection, refer to [Table 6] below. [Table 6. In Out Screw Terminal Connector Pin map] Name Description Remark P70, P71, P12, P13 Input Common P1C1 Terminal Photo Coupler Input... - Page 17 USB-LT02_B User’s Manual Photo MOS Relay Output Photo MOS Relay Output Photo MOS Relay Output P50, P51, P52, P53 Output Common P5C1 Terminal Maximum Output Control Range Photo MOS Relay Output : 60V/400mA Photo MOS Relay Output See paragraph 3-2-8. Photo MOS Relay Output Photo MOS Relay Output P54, P55, P56, P57 Output Common...
-
Page 18: Sample Program
USB-LT02_B User’s Manual 4. Sample Program A sample program is provided along with USB-LT02_B for easy use of USB-LT02_B. Since the USB HID Device uses the operating system's own driver, there is no need to install a separate driver program. The provided sample program is a program that can check the operation of each terminal simply by judging the presence or absence of a board abnormality, setting each terminal as an input or output. - Page 19 USB-LT02_B User’s Manual ③ Select Device When using more than one USB-LT02_B, select the ID of the USB-LT02_B board to check the status or change the setting in the sample program. Device 0 to Device 3 are possible. For example, if you want to select USB-LT02_B with board ID 2, you can select'Device 2'from the Combo Box list as shown in [Figure 4-2] below.
- Page 20 USB-LT02_B User’s Manual [Figure 4-4. Matching of Port Configure value and input/output terminals] The table below matches the output terminal with the Port Configure value, taking the output as an example for understanding. [Table 7. Example of Port Configure Value and I/O Terminal Matching] For the lighting and blinking status of LED lamps, refer to'⑨...
- Page 21 USB-LT02_B User’s Manual [Figure 4-5. Port Configure value when clicking All Input button] However, since USB-LT02_B uses only Port6, Port7 and 1 as input, the input setting of Port4 and Port5 is meaningless. Also, the values displayed in the Port Configure window are only valid for P4 and P5.
- Page 22 USB-LT02_B User’s Manual [Figure 4-7. LED lamp turns on when ON button is clicked] [Figure 4-8. LED lamp blinks when OFF button is clicked] For example, if you click ON button 0 of Port4, P4C1 Port and P40 Port are connected to each other, and if you click OFF button, P4C1 Port and P40 Port are in Open state with the connection turned off.
-
Page 23: Appendix
USB-LT02_B User’s Manual Appendix A-1 Board Size The external dimensions of the board are as follows. [Figure A-1. USB-LT02_B Plane View] [Figure A-2. USB-LT02_B Front View]... -
Page 24: Repair Regulations
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 25 -- Don Anderson, USB SIG(www.usb.org) 2. Universal Serial Bus Specification -- Compaq/Intel/Microsoft/NEC, MindShare Inc. (Addison Wesley) 3. USB-LT User’s manual -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5. AN342 USB-LT02_B API VER1.3 -- DAQ system...
- Page 26 USB-LT02_B User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
