USB-DIO6400
User Manual
Version 1.1
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system USB-DIO6400
Summary of Contents for DAQ system USB-DIO6400
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
USB-DIO6400 User’s Manual Contents Introduction --------------------------------------------------------------------- 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. USB-DIO6400 Block Diagram ------------------------------------------------------ 3. USB-DIO6400 Board Description Board Layout ------------------------------------------------------------------------ Connector Pin Map 3-2-1 USB Connector (JP4) ------------------------------------------------------------- 3-2-2 JP1 Connector -------------------------------------------------------- 3-2-3 D-Sub-37Pin Socket (J6) - Page 3 USB-DIO6400 User’s Manual 5. Sample Program 5-1 Program Interface ---------------------------------------------------------------------- 5-2 Function Description ---------------------------------------------------------------------- Appendix A-1 Repair Regulations ----------------------------------------------------------------------- Reference -----------------------------------------------------------------------...
-
Page 4: Introduction
USB-DIO6400 board is 32-bit isolated digital input / output boards to be fully compatible with industrial PC. It is a board that uses the USB interface Full Speed (12MB/s). USB-DIO6400 does not use a separate external power supply because the operation takes its power from the USB cable. All of the control functions are designed to FPGA (Field Programmable Gate Array) and it is possible to easily upgrade to the user's needs. -
Page 5: Product Features
USB-DIO6400 User’s Manual 1-1 Product Features Items Description Remark Hardware PC Interface USB1.1 Full Speed(12Mb/s) Operation Power +5VDC/ 500mA USB Power I/O Port D-Sub37 Plug/Socket Type Feature 32/32bit Digital I/O Isolated Digital Input Number of Channels : 32 Number of Common Input : 4... -
Page 6: Product Applications
USB-DIO6400 User’s Manual 1-2 Product Applications ♦ Data acquisition ♦ Laboratory instrumentation ♦ Process control systems ♦ Factory automation DAQ System Digital I/O Products Product No. In/Out Timer/Counter Specification cPCI-DIO6400 32/32 Isolated Input/Output 128 channels Software cPCI-DIO02 Read/Write in 8 Groups in 16-bit Units... -
Page 7: Usb-Dio6400 Block Diagram
These functions perform to use the API at PC through USB interface. The product gets from 5V power supply through USB connector. [Figure 2-1. USB-DIO6400 Internal Block Diagram] The USB-DIO6400 is a board having the function of external interface with the isolated 32-Ch input ports and output ports like figure 2-1. -
Page 8: Usb-Dio6400 Board Description

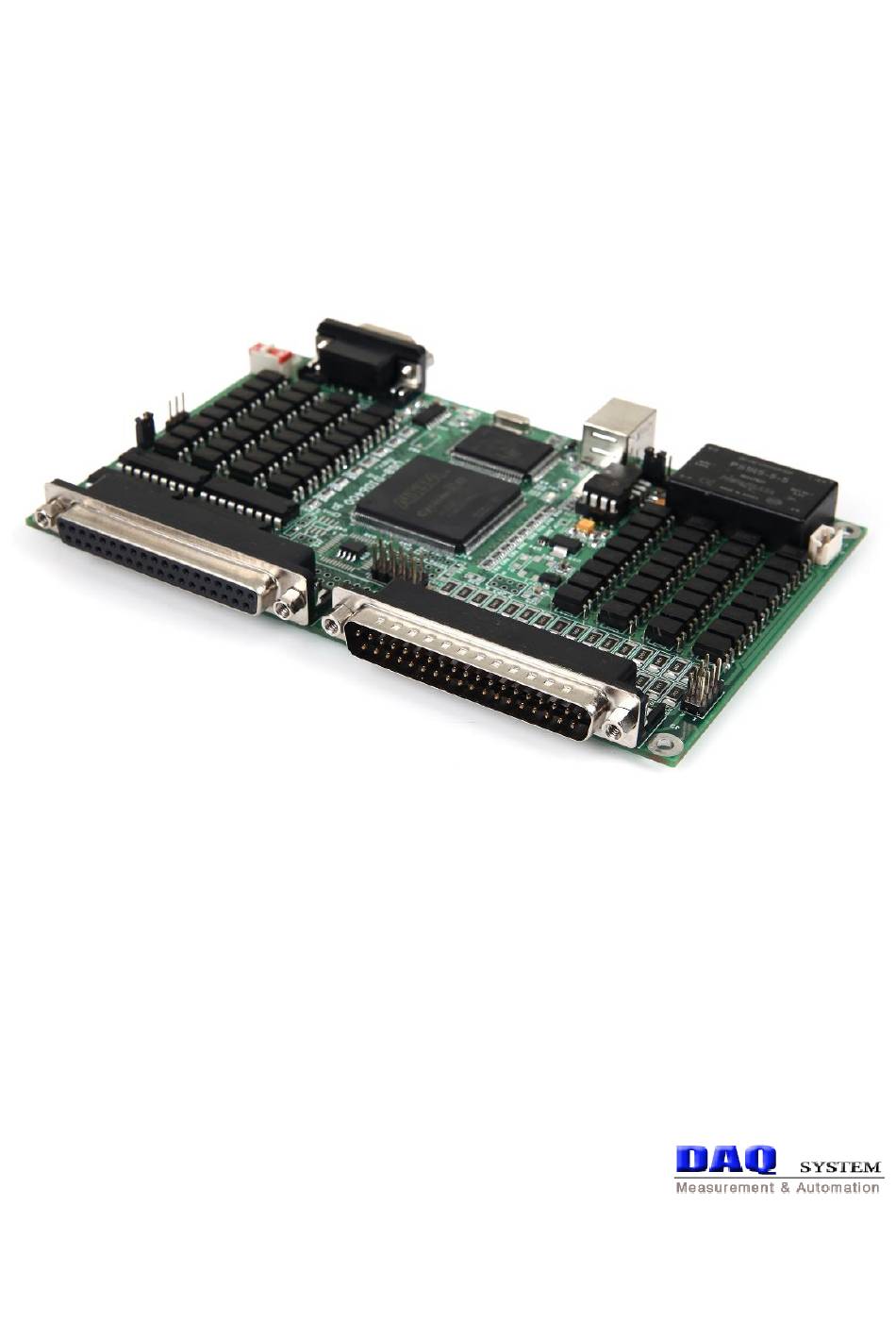

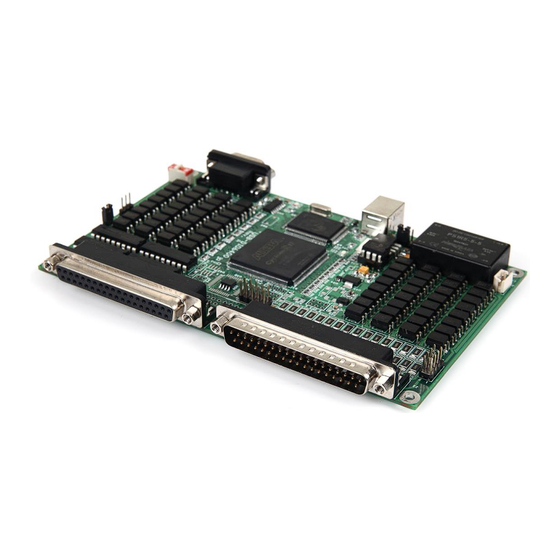

USB-DIO6400 User’s Manual 3. USB-DIO6400 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout LED2 LED3 12.00 [Figure 3-1. USB-DIO6400 Layout] There is a USB-B type connector at the bottom side to supply power and USB signals. It can be 32 channels Digital Input through 37PIN D-SUB (PLUG : J2) connector at the left top side. -
Page 9: Connector Pin Map
3-2 Connector Pin Map 3-2-1 USB Connector (JP4) This section describes the connectors used in USB-DIO6400. The main connectors include a USB-B type connector for USB connection, a D-sub 37pin ( j2, J6) for external I/O input/output, and a D-sub 9pin connector (P1) for RS232 communication. -
Page 10: D-Sub-37Pin Socket (J6)
USB-DIO6400 User’s Manual 3-2-3 D-SUB 37Pin Socket (J6) The digital output of USB-DIO6400 performs through 37Pin D-Sub connector (socket type), and it isolates from internal board. POWER DOUT31 DOUT30 DOUT29 DOUT28 DOUT27 DOUT26 DOUT25 DOUT24 DOUT23 DOUT22 DOUT21 DOUT20 DOUT19... - Page 11 USB-DIO6400 User’s Manual [Table 2. USB-DIO6400 Digital OUT Connector] Pin# Pin Name Description Remark DOUT0 Isolated Digital Output 0 DOUT2 Isolated Digital Output 2 DOUT4 Isolated Digital Output 4 DOUT6 Isolated Digital Output 6 DOUT8 Isolated Digital Output 8 DOUT10...
-
Page 12: D-Sub-37Pin Plug (J2)
USB-DIO6400 User’s Manual 3-2-4 D-SUB 37Pin Plug : J2 The digital output of USB-DIO6400 performs through 37Pin D-Sub connector (plug type), and it isolates from internal board. DIN31 DIN30 DIN29 DIN28 DIN27 DIN26 DIN25 DIN24 DIN23 DIN22 DIN21 DIN20 DIN19... - Page 13 USB-DIO6400 User’s Manual DIN2 Isolated Digital Input 2 DIN4 Isolated Digital Input 4 DIN6 Isolated Digital Input 6 DIN8 Isolated Digital Input 8 DIN10 Isolated Digital Input 10 DIN12 Isolated Digital Input 12 DIN14 Isolated Digital Input 14 IN_COM0 Isolated Digital Input common 0...
-
Page 14: Digital Input Circuit
USB-DIO6400 User’s Manual 3-3 Digital Input Circuit IN_COM0 2.4K DIN0 2.4K DIN1 2.4K DIN7 [Figure 3-4. Digital Input Circuit] In the figure above, the digital input circuit is insulated by a port coupler. If positive voltage is applied to “IN_COM0” and negative voltage is applied to the digital input (DIN0 ~ DIN7), which is an external signal through the J2 connector, current flows through the diode inside the photo coupler, and according to the current flowing, the output side The transistor is energized. -
Page 15: Digital Output Circuit
USB-DIO6400 User’s Manual 3-4 Digital Output Circuit OUT_POWER OUT_VDD +3.3V DOUT0 out0 DOUT1 out1 DOUT31 out31 [Figure 3-5. Digital Output Circuit] In the figure above, the digital output circuit is insulated by a port coupler. “OUT_POWER” and “OUT_VDD” are commonly connected to the output circuit. “OUT_POWER” becomes external power or internal 5V PCI or ISO 5V (DC-DC output power) according to the jumper setting of connector JP2. - Page 16 USB-DIO6400 User’s Manual USB-DIO6400 Board J7 Jumper External DC-DC Connection Power OUT_POWER External Power Load +3.3V DOUT 31 - 0 OUT31-0 External GROUND GROUND [Figure 3-6. Output Port External Connection] OUTPUT can be used by selecting external power or internal power. When using an external power source, the J1 jumper must not be connected to become a completely isolated input.
-
Page 17: Power Option Setup
USB-DIO6400 User’s Manual 3-5 Power Option Setup 3-5-1 JP2 Jumper Setup USB 5V can be used for the internal power of the board, or external power input through JP1 (Molex 2Pin Connector) can be used, which can be set with a jumper. -
Page 18: Installation
3. CD (Driver/Manual/API/Sample Source etc.) 4-2 Driver Installation For USB-DIO6400 board installation at PC is as follows. There isn’t a jumper especially to set up for board installation because USB board is a Hot Plug and Plug & Play device. - Page 19 USB-DIO6400 User’s Manual (4) If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the below figure.
- Page 20 USB-DIO6400 User’s Manual (5) If the installation is completely finished, you can use the USB-DIO6400 board. But, it confirm a driver normally installation in the following ways. Do the following steps to show up the “Device Manager” window. [My Computer -> Properties -> Hardware -> Device Manager -> Universal serial Bus controllers...
-
Page 21: Sample Program
USB-DIO6400 User’s Manual 5. Sample Program 5-1 Program Interface In the APP folder of the CDROM provided with the board, a sample program “DIO6400.exe” is provided for easy use of the board. In order to test the sample program, the driver of the board must be installed first. -
Page 22: Function Description
USB-DIO6400 User’s Manual 5-2 Function Description (1) Model No. Select the Model Name “USB-DIO6400” (2) Board No. Select the Board Number (Board #0 ~ #3) (3) „Open Device‟ button Open the selected Board. This button has to click after changed the board number. -
Page 23: Appendix
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 24 1. USB 2.0 System Architecture -- Don Anderson, USB SIG (www.usb.org). 2. Universal Serial Bus Specification -- Compaq/Intel/Microsoft/NEC/MindShare Inc. (Addison Wesley) 3. AN201 How to build application using APIs -- DAQ system 4. AN342 USB-DIO6400 API VER1.0 -- DAQ system...
- Page 25 USB-DIO6400 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
