USB-DIO12800
User Manual
Version 1.1
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB-DIO12800 and is the answer not in the manual?

Questions and answers

Related Manuals for DAQ system USB-DIO12800

Summary of Contents for DAQ system USB-DIO12800

  • Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.

  • Page 2: Table Of Contents

    USB-DIO12800 User‟s Manual Contents Introduction --------------------------------------------------------------------- 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. USB-DIO12800 Block Diagram ---------------------------------------------------- 3. USB-DIO12800 Board Description Board Layout ------------------------------------------------------------------------ Connector Pin Map 3-2-1 USB Connector (JP4) ------------------------------------------------------- 3-2-2 80Pin Connector (J1 & J4) ------------------------------------------------------------ 4.

  • Page 3: Introduction

    FPGA (Field Programmable Gate Array), augmenting or modifying the user's needs, freely to easily upgrade is possible. The USB-DIO12800 is designed for high speed digital logger with USB 2.0 interface. It composes of 128 bits programmable digital input/output for external interface.

  • Page 4: Product Features

    USB-DIO12800 User‟s Manual 1-1 Product Features Items Description Remark Hardware PC Interface USB1.1 Full Speed(12Mb/s) Operation Power +5VDC/ 500mA USB Power I/O Port D-Sub37 Plug/Socket Type Feature 128bit Digital I/O Direction control grouped by 16bit Digital Input/Output Number of Channels : 128...
  • Page 5 USB-DIO12800 User‟s Manual  DAQ System Digital I/O Products Product No. In/Out Timer/Counter Specification cPCI-DIO6400 32/32 Isolated Input/Output 128 channels Software cPCI-DIO02 Read/Write in 8 Groups in 16-bit Units Configurable PCI(e)-DIO6400 32/32 Isolated Input/Output PCI-DIO6401 64/None Isolated Input PCI-DIO6402 None/64...

  • Page 6: Usb-Dio12800 Block Diagram

    USB-DIO12800 User‟s Manual 2. USB-DIO12800 Block Diagram As shown in the figure below, in the case of USB-DIO12800, the Micro Controller is responsible for USB communication and control, and the FPGA executes data input/output according to input/output commands. These functions are performed through the API function call in the PC through the USB interface.

  • Page 7: Usb-Dio12800 Board Description

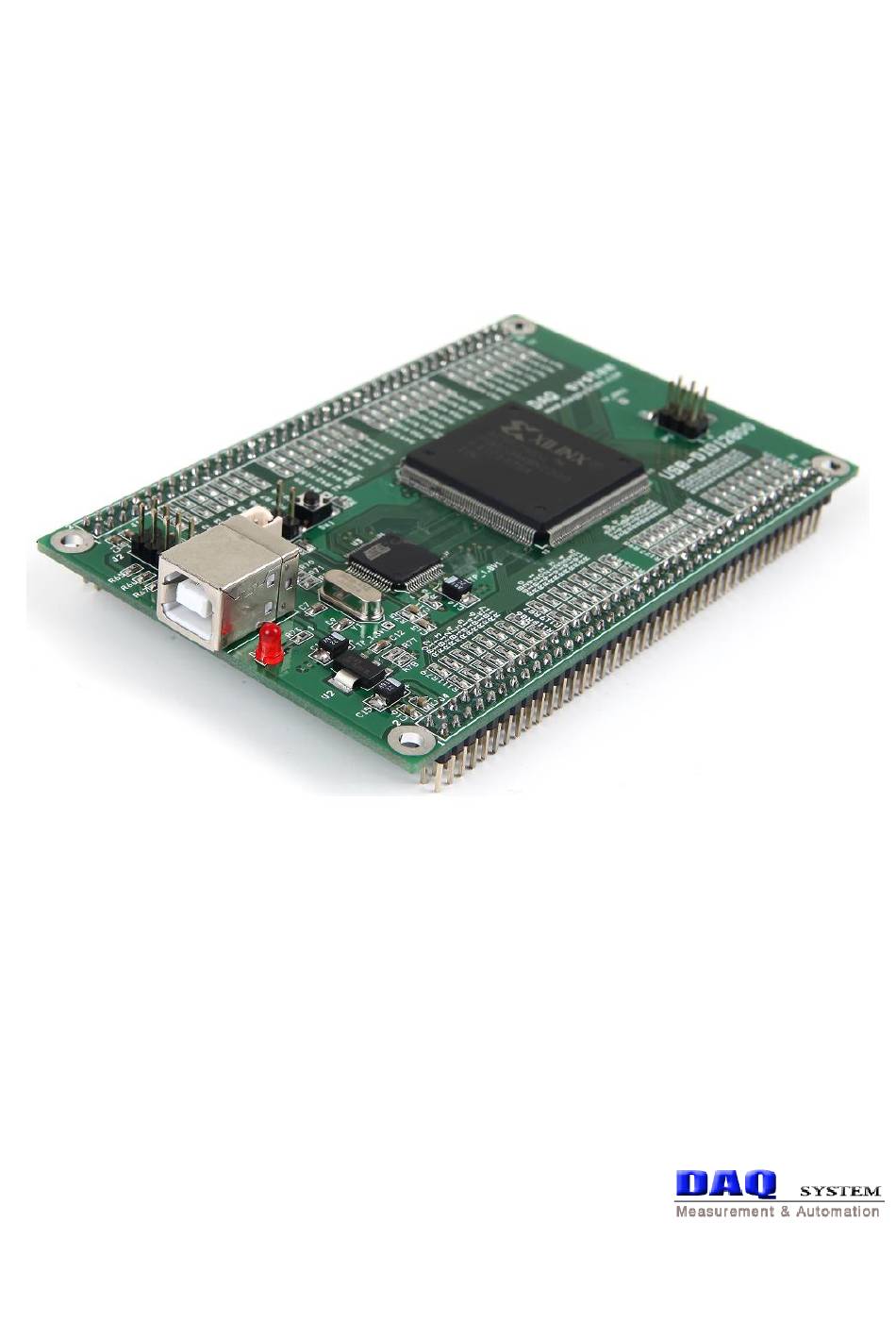

    3-1 Board Layout [Figure 3-1. USB-DIO12800 Layout] [Figure 3-1] shows the actual external appearance of USB-DIO12800. There is a USB-B type connector on the left side, and digital input/output can be used by dividing the lower 64 bits with the 80PIN 40x2 header on the upper side and the upper 64 bits with the 80PIN 40x2 header on the lower side.

  • Page 8: Connector Pin Map

    USB-DIO12800 User‟s Manual 3-2 Connector Pi Map 3-2-1 USB Connector (JP4) This section describes the connectors used in USB-DIO6400. The main connectors include a USB-B type connector for USB connection, a D-sub 37pin ( j2, J6) for external I/O input/output, and a D-sub 9pin connector (P1) for RS232 communication.

  • Page 9: 80Pin Connector (J1 & J4)

    USB-DIO12800 User‟s Manual 3-2-2 80Pin Connector (J1 & J4) External connection of USB-DIO12800 is made through 80Pin 40x2 connector. The 128- bit IO pins of LD[127.0] and the 5V and 3.3V power output pins are used. The pin-type connector is not inserted at the factory so that the user can consider the external board to be connected and the mating direction (up or down of USB-12800)..
  • Page 10 USB-DIO12800 User‟s Manual [Table 2. USB-DIO12800 80Pin(40x2, 2.54mm 피치) J1 Header Connector] Pin# Pin Name Description Pin# Pin Name Description +5VUSB 5Vdc Power +5VUSB 5Vdc Power +3.3V 3.3Vdc Power +3.3V 3.3Vdc Power No Connection No Connection No Connection No Connection...
  • Page 11 USB-DIO12800 User‟s Manual LD_62 Digital IO Signal 62 LD_63 Digital IO Signal 63 Ground Ground [Table 3. USB-DIO12800 80Pin(40x2, 2.54mm 피치) J4 Header Connector] Pin# Pin Name Description Pin# Pin Name Description +5VUSB 5Vdc Power +5VUSB 5Vdc Power +3.3V 3.3Vdc Power +3.3V...
  • Page 12 USB-DIO12800 User‟s Manual LD_72 Digital IO Signal 72 LD_73 Digital IO Signal 73 LD_70 Digital IO Signal 70 LD_71 Digital IO Signal 71 LD_68 Digital IO Signal 68 LD_69 Digital IO Signal 69 LD_66 Digital IO Signal 66 LD_67 Digital IO Signal 67...

  • Page 13: Installation

    USB-DIO12800 User‟s Manual 4. Installation You confirm whether or not the packing contents are in good order before installation. 4-1 Product Contents Product Contents 1. USB-DIO12800 Board 2. Pin type Header Connector(2x40, 2.54-pitch, x2) 3. USB(A-B) Cable 4. CD (Driver/Manual/API/Sample Source etc.)

  • Page 14: Driver Installation

    USB-DIO12800 User‟s Manual 4-2 Driver Installation For USB-DIO12800 board installation at PC is as follows. There isn‟t a jumper especially to set up for board installation because USB board is a Hot Plug and Plug & Play device. User Environments : Windows XP/7/8/10 (1) First, open the box and put the USB-DIO12800 product on safe table.
  • Page 15 USB-DIO12800 User‟s Manual (4) If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the below figure.
  • Page 16 USB-DIO12800 User‟s Manual (5) A warning message appears during installation here, press “Continue Anyway” button. (6) If the installation is completely finished, you can show below message window.
  • Page 17 -> “USB-DIO12800”] [Figure 4-1. “Device Manager” Window] If you can see the “DAQ system USB-DIO12800 Digital Input Output Board” at the Multi- functions Adaptors, the driver installation is to have been over. (Check the blue cursor) Important Notice : After installation, you should re-boot the system for the proper operation.

  • Page 18: Sample Program

    5. Sample Program 5-1 Program Interface DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board. One of the execution file is “USB_DIO12800.exe”.

  • Page 19: Function Description

    USB-DIO12800 User‟s Manual the Windows system folder or the folder specified by the Path environment variable. 5-2 Function Description (1) „String Loop-back‟ button It print out a character within 63 bytes at TX String window through USB interface and it display a character string from board.

  • Page 20: Appendix

    (3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty.
  • Page 21 1. USB 2.0 System Architecture -- Don Anderson, USB SIG (www.usb.org). 2. Universal Serial Bus Specification -- Compaq/Intel/Microsoft/NEC/MindShare Inc. (Addison Wesley) 3. AN201 How to build application using APIs -- DAQ system 4. AN342 USB-DIO12800 API VER1.0 -- DAQ system...
  • Page 22 USB-DIO12800 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
