DAQ system USB-LT02 User Manual

Hide thumbs Also See for USB-LT02:
Table of Contents

Advertisement

Quick Links

Download this manual
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the trademarks or
service names of all other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or
reproduced without the prior written consent.

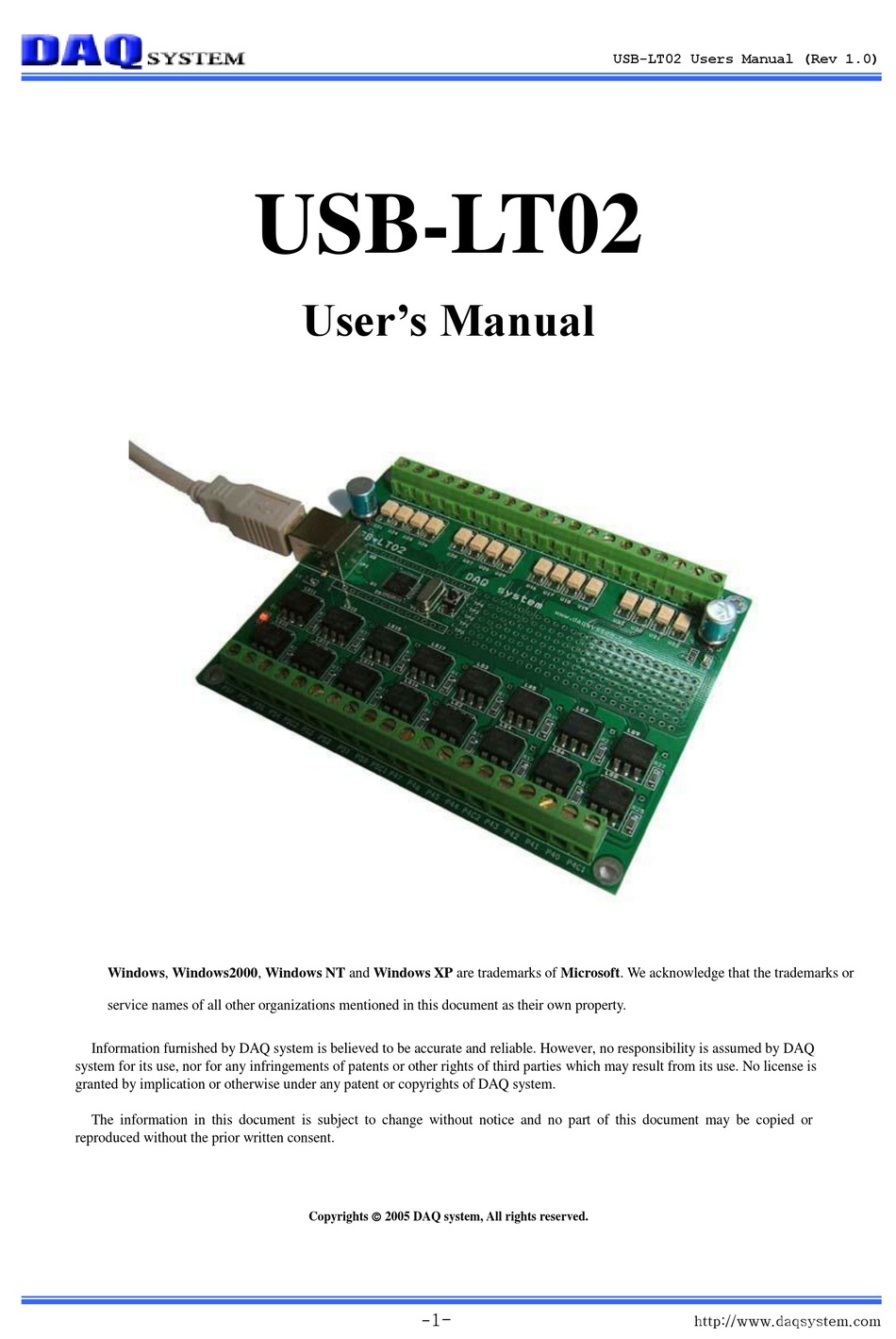

USB-LT02
User's Manual
Copyrights  2005 DAQ system, All rights reserved.
-
1-
USB-LT02 Users Manual (Rev 1.0)
http://www.daqsystem.com
