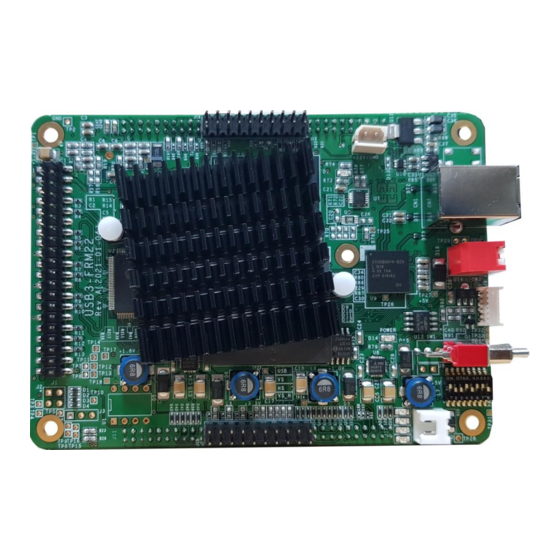

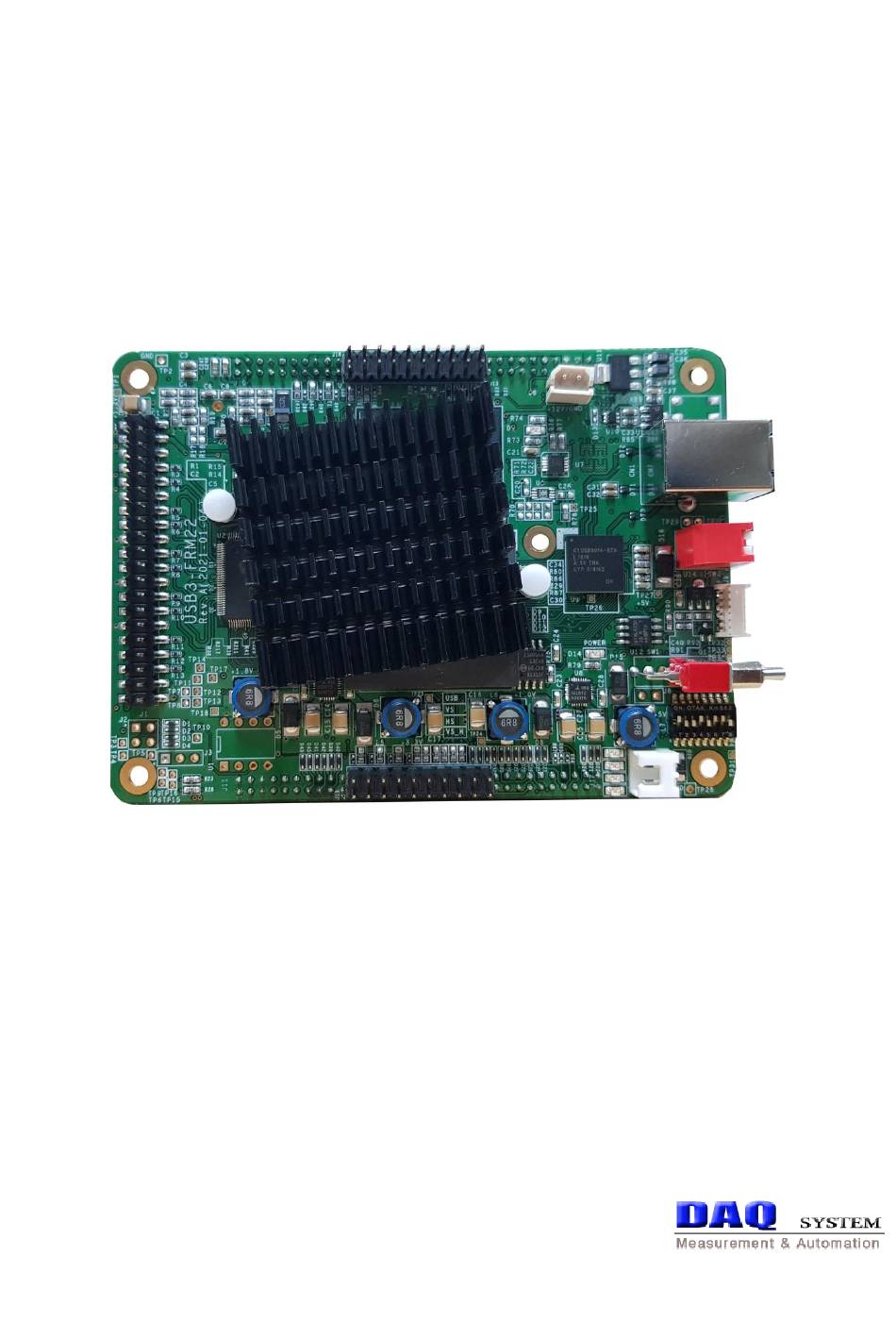

USB3-FRM22
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may e copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system USB3-FRM22
Summary of Contents for DAQ system USB3-FRM22
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
USB3-FRM22 User’s Manual Contents 1. Introduction 1-1. Product Specification ------------------------------------------------------------------------ 1-2. Product Application ------------------------------------------------------------------------ 2. USB3-FRM22 Description 2-1. Layout ------------------------------------------------------------------------ 2-2. Board Description ------------------------------------------------------------------------ 2-3. I/O Terminal Pin Map ------------------------------------------------------------------------ (1) CN1 Connector ------------------------------------------------------------------------ (2) J1 Connector ------------------------------------------------------------------------ (3) J2 Connector... -
Page 3: Introduction
USB3-FRM22 User’s Manual 1. Introduction 1-1. Product Specification Item Description Remark Hardware PC Interface USB3.0 B-Type Operation Power +12VDC/650mA External 12V DC Power (A6-Type : 5.5x2.1mm) Video Interface MIPI CSI C-PHY 3 Lane 2.2 ~ 2.3 Gsym / 1 Lane MIPI CSI D-PHY 4 Lane 2.5Gbps / 1 Lane... -
Page 4: Product Application
- Frame Grabber - Test for Variable MIPI Sensor The USB3-FRM22 board transmits the C-PHY or D-PHY MIPI (Mobile Industry Processor Interface) signal of the sensor board to the PC in the USB3.0 Super Speed (5Gbps) method. Two signals of C-PHY or D-PHY can be selected and used. The received signal is processed by the software (application) provided by the DAC system in the PC and displayed as an image. -
Page 5: Usb3-Frm22 Description
123 789 REF1 REF2 [Figure 2-1. USB3-FRM22 Components Layout] There are 6 important LEDs on the board, and the description of each is as follows. : Lights up when the board is configured and ready for operation. : Lights up when connected via USB3.0 (blinks). -
Page 6: Board Description
USB3-FRM22 User’s Manual 2-2. Board Description As shown in the figure below, in the case of USB3-FRM22, the overall control is in charge of FPGA Core Logic. Its main function is to transmit C-PHY or D-PHY MIPI Image Frame Data signals through the External I/O connector. -
Page 7: I/O Terminal Pin Map
USB3-FRM22 User’s Manual 2-3. I/O Terminal Pin Map (1) CN1 Connector When the PIN of the USB3.0 Standard Powered-B type connector of the board is viewed from the front where the cable is connected, it is as shown in [Figure 2-3]. -
Page 8: J1 Connector
USB3-FRM22 User’s Manual (2) J1 Connector It is connected to the MIPI SENSOR board and the signals are as follows. 25 27 [Figure 2-4. J1 Connector (Top View)] [Table 2. J1 Connector Description] Name Description Remark SENSOR Power SENSOR Power... -
Page 9: J2 Connector
USB3-FRM22 User’s Manual CNT3 Sensor General Purpose IO3 Using SDIO_xxx function C_L2_RXD or D_L3_RXN C_lane2_RX_D or D_lane3_RX_N C : C-Phy, D : D-Phy Ground Ground Ground C_L1_RXA or D_CLK_RXP C_lane1_RX_A or D_CLK_RX_P C : C-Phy, D : D-Phy Ground C_L1_RXB or D_CLK_RXN... -
Page 10: J10 Connector
USB3-FRM22 User’s Manual (5) J10 Connector It is connected to the MIPI power board and is a connector related to sensor power and some communication. [Figure 2-5. J10 Connector (Top View)] [Table 4. J10 Connector Description] Name Description Remark Ground... -
Page 11: J11 Connector
USB3-FRM22 User’s Manual (6) J11 Connector It is connected to the MIPI power board, and is a connector related to sensor power, SPI communication, and some GPIO (General Purpose In/Out). [Figure 2-6. J11 Connector (Top View)] [Table 5. J11 Connector Description]... -
Page 12: J12 Connector
USB3-FRM22 User’s Manual (7) J12 Connector It is connected to the MIPI power board and is a connector related to GPIO (General Purpose In/Out). [Figure 2-7. J12 Connector (Top View)] [Table 6. J12 Connector Description] Name Description Remark Ground Ground... -
Page 13: J13 Connector
USB3-FRM22 User’s Manual (8) J13 Connector This connector is connected to the MIPI power board. [Figure 2-8. J13 Connector (Top View)] [Table 7. J13 Connector Description] Name Description Remark Ground Ground GPIO8 General Purpose IO8 Using PWR_DIO_xxx function GPIO9 General Purpose IO9... -
Page 14: J14 Connector
USB3-FRM22 User’s Manual (9) J14 Connector It is a connector used for Power/AD Convertor/OpenShort communication line and some GPIOs. [Figure 2-9. J14 Connector (Top View)] [Table 8. J14 Connector Description] Name Description Remark Name Description Remark Ground Serial Clock 3.3V Serial Data 3.3V... -
Page 15: J15 Connector
USB3-FRM22 User’s Manual (10) J15 Connector This connector is used for SPI (Serial Peripheral Interface) and some GPIOs. [Figure 2-10. J15 Connector (Top View)] [Table 9. J15 Connector Description] Name Description Remark Ground Ground SPI_CLK_CON Serial Clock 3.3V SPI_MOSI_CON Master Output, Slave Input 3.3V... -
Page 16: Sw3 Switch
USB3-FRM22 User’s Manual (12) SW3 Switch The USB3-FRM20 board is designed to use up to 4 USB3-FRM20 boards simultaneously in one system (PC). Classification of each board can be set through a 2-pin DIP switch in the board. [Figure 2-12. SW3 Switch (Top View)] [표... -
Page 17: Board Size
USB3-FRM22 User’s Manual 2-4. Board Size The external dimensions of the board are as follows. (For detailed dimensions, please ask the person in charge.) < Top View > 15.5 10.7 < Right Side View >... -
Page 18: Sample Program
USB3-FRM22 User’s Manual 3. Sample Program A sample program is provided on the CDROM provided with the board so that the board can be used easily. In order to test the sample program, the driver of the board must be installed first. The sample program is provided in the form of a source so that the API provided to use the board can be briefly tested, so the user can modify and use it. -
Page 19: Description Of Image Frame Functions
USB3-FRM22 User’s Manual All files specified above are included on the supplied CDROM. In order to run the sample program normally, API DLL (USB-FRM22.DLL) must be in the folder of the executable file, or in the Windows system folder or the folder designated by the Path environment variable. - Page 20 USB3-FRM22 User’s Manual (7) “S-Read” button The sensor initialization file is read from the program. Depending on the address_data size (8_8, 16_8, 16_16) of the above command, it is possible to send commands to the INI file at a time or use the command line by line by I2C read/write. The structure and description of the ini file are as follows.
- Page 21 USB3-FRM22 User’s Manual 0x5405 80 0x540c 05 0x5b00 00 0x5b01 00 0x5b02 01 0x5b03 ff 0x5b04 02 [END] (8) “Init” button Initialize the sensor by selecting “INI, T1, T2, SPI” below. (To be added) (9) “Go/Stop” toggle button Initialize the sensor and read INI at once.
- Page 22 USB3-FRM22 User’s Manual (15) “Data” button The image frame saved on the board is read into PC (Hexa value). If the image frame is not saved on the board, you have to wait until the saving is complete. Use after freeze the screen.
-
Page 23: Description Of Clock Functions
USB3-FRM22 User’s Manual (19) “YUV; RGB; RAW; USER” : User setting or image input format selection “No Skip” : No Skip “5’th Skip” : When selected, the 5th byte is skipped. For example, if the input data is Bayer with 10 bits, 8 bits each is stored in the 5th byte each of the remaining 1 bit excluding RGB and 3 bytes and 1 byte. -
Page 24: Description Of Power/Digital I/O Functions
USB3-FRM22 User’s Manual (4) “Set 16M” button Set MCLK(Master Clock) to 16MHz. (5) “A/CHG” toggle If checked, the interval of the frequency set by Min. and Max. can be periodically set and tested according to the Step. Example) In the above case, the frequency increases between 5 and 30 MHz in units of 0. -
Page 25: Description Of I2C Read/Write Functions
USB3-FRM22 User’s Manual 3.4 Description of I2C Read/Write Functions (1) “Init” button Initialize the I2C registers. (2) “Write” Button Send data through I2C. (3) “Read” Button Reads the data of the address of the selected mode among SYS, PWR, ADC, and OS modes below. -
Page 26: Description Of Misc. Functions
USB3-FRM22 User’s Manual 3.5 Description of Misc. Functions Various types of conditions can be selected and used. “+5V Power” : Outputs VIO power. ”I/O Power” : Turns on/off the power of external signals used for MIPI. “Sensor I2C Off” : Sensor I2C operation On/Off. -
Page 27: Description Of Status Functions
USB3-FRM22 User’s Manual 3.6 Description of Status Functions “SP0..5 Setup” : SP0..3 (Sensor Power) voltage (0.9 ~ 4.1V) can be controlled. “Log Enable” : Log On/Off “Data Check” : If checked, the previous image data (saved image) and the current image data are compared and the value of the wrong part is displayed on the left log screen at the bottom. -
Page 28: Appendix
Thank you for purchasing a DAQ SYSTEM product. Please refer to the following regarding Customer Service regulated by DAQ SYSTEM. (1) Read the user manual before using the DAQ SYSTEM product and follow the instructions.. (2) When returning the product to be repaired, please write down the symptoms of the failure and send it to the head office. - Page 29 USB3-FRM22 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
