- Page 1 DPA Quick Installation Guide Shenzhen Dinstar Co.,Ltd. Tel: +86 755 2645 6664 Fax: +86 755 2645 6659 Email: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
-
Page 2: Table Of Contents
目录 1 Packing List ................3 2 Physical Specifications ..............3 3 Installation ..................5 4 Obtaining the device IP address ..........6 5 DPA Configuration ............... 6... -
Page 3: Packing List
DPA Quick Installation Guide 1 Packing List Installation Accessories 2 Physical Specifications DPA Device Dimension(L*W*H) 130.6*30*85mm 2.1 Front Panel... - Page 4 Number Description Ethernet interface: Standard RJ45 interface, 10/100M adaptive, it is recommended to use category five or super category five network cable Camera network interface: external webcam can be connected to realize video call Network status indication. No flash: no network connection. Slow flash: the network connection is normal.
-
Page 5: Installation

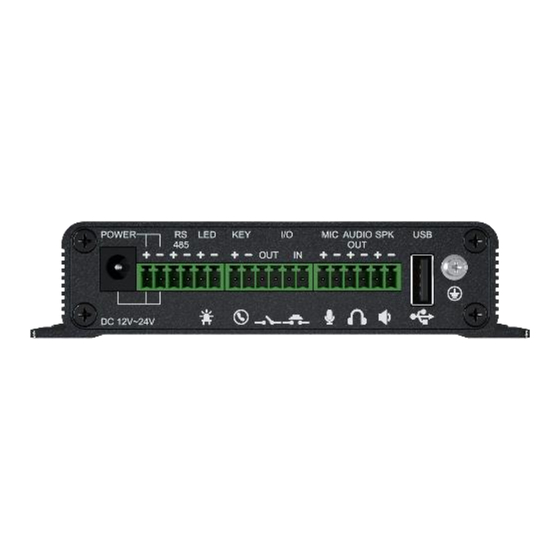

Microphone input port Short circuit switch output interface (normal open) External LED indication interface RS485 for PTZ/camera control Power socket, DC12V-24V DC12V/24V output interface Speed dial key interface The external switch can be used to directly control the short-circuit output interface or the input interface of other security equipment Audio output port, can also be externally connected to the power amplifier The external passive speaker interface can be externally connected to... -
Page 6: Obtaining The Device Ip Address
4 Obtaining the device IP address After the device is powered on. By default, the device will get the IP address through DHCP. Press the speed dial key for ten seconds, the DPA will voice broadcast the IP address obtained by default DHCP mode. - Page 7 SIP server IP and port by assigning the SIP account on the server side respectively, and finally click the submit button. 5.3 Set DPA Parameters （1）Set up speed dial Click "Door Phone->Call Feature", users can set up to three numbers for the daytime call button.
- Page 8 time is night. （2）Configure the short circuit output switch Click "Door Phone->Door Lock" to set the switch mode, there are two operating modes, monostable and bistable, and the switch closing time in monostable mode can be set.
- Page 9 （3）Control the short circuit output switch through DTMF Click "Door Phone->Access" to set the open door by DTMF code, it can be controlled by the short circuit output switch through DTMF signal.
