DAG1000/2000 Series FXSFXO Voice Gateway
User Manual V2.0
Dinstar Technologies Co., Ltd.



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG1000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinstar DAG1000 Series

  • Page 1   DAG1000/2000 Series FXSFXO Voice Gateway User Manual V2.0 Dinstar Technologies Co., Ltd.    ...
  • Page 2   Revision Records File Name DAG1000/2000 Series FXS/FXO Voice Gateway User Manual Document Version Firmware Version 2.11.05.03 Date 2012/03/16 Revised by Technical Support Department    ...
  • Page 3: Table Of Contents

      Table of Contents Equipment Introduction  ..................  1     1.1 Overview ......................  1   1.2 Equipment appearance ................  1   1.3 Power supply ....................  2   1.4 Network Applications  ..................  2   1.5 Functions and Features  ................  3   1.5.1 Protocol standard supported ............ ...
  • Page 4   4.1 WEB Login  ......................  9   4.1.1 Login  ....................  9   4.1.2 Login WEB ..................  1 0   4.2 Navigation Tree ...................  1 1   4.3 State and Statistics ..................  1 2   4.3.1 System Information  .................  1 2  ...
  • Page 5   4.9 Call & Routing  ....................  4 0   4.9.1 Port Group ..................  4 0   4.9.2 IP Trunk.....................  4 2   4.9.3 Routing Configuration ..............  4 3   4.9.4 IP-Tel Routing  ...................  4 4   4.9.5 Tel-IP/Tel Routing ................  4 5  ...
  • Page 6: Equipment Introduction

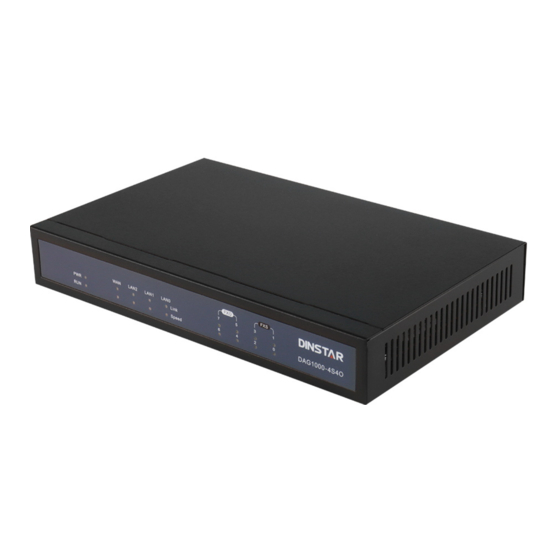

    DAG series FXS/FXO hybrid gateway includes following model: DAG1000-4S4O DAG1000-8S8O This manual mainly to DAG1000-4S4O as examples, introduce the function of devices and parameter configuration. 1.2 Equipment appearance Figure 1-1DAG1000-4S4O Figure 1-2 DAG1000-8S8O 1  Dinstar Technologies Co., Ltd.  ...
  • Page 7: Power Supply

                            DAG1 1000/2000 Se eries FXS/FXO O Voice Gatew way User Man nual   3 Power s supply G1000-4S4O O is Cassette e equipmen nt with place ed on desk , and adopt ts AC 110-2 240V wer supply, w with the pow...
  • Page 8: Functions And Features

    • One stage dialing • Two stage dialing • PSTN exterior ports polling • Polarity Reversal • FAS( Fake billing correction ) • DC/AC impedance config • Calls detection (Bellcore Type 1&2, ETSI,DTMF) • 3  Dinstar Technologies Co., Ltd.  ...
  • Page 9: Basic Operations

    IP addresses (with necessary port forwarding or DMZ). Operation Process: 1)Pick up the analog phone then dial “*47” 2)Enter the target IP address. 【Note】 :No dial tone will be played between step 1 and step 2 Examples: 4  Dinstar Technologies Co., Ltd.  ...
  • Page 10: Call Hold

    3)Caller A will hear the confirm tone. Then, A can hang up. Note: Call features enable “ ” must be set to “Yes” in web configuration page. Caller A can place a call on hold and wait for one of three situations: 5  Dinstar Technologies Co., Ltd.  ...
  • Page 11: Attended Transfer

    Table 2.5-1 Feature Codec Feature Codec Operation Instructions *158# View the LAN port IP address *159# View the WAN port IP address *114# Inquire port account *150* Set the way of obtain IP address 6  Dinstar Technologies Co., Ltd.  ...
  • Page 12 *93# Disable No Answer Call Forward *78# Enable DND *79# Disable DND *200# Access Voice mail flash/hook will switch a Switch between incoming calls, If not in session, Flash/Hook new channel for new call. 7  Dinstar Technologies Co., Ltd.  ...
  • Page 13: Sending And Receiving Fax

    *158# to inquire LAN port IP address and dialing *159# to inquire WAN port IP address. 3.2 Factory Reset After picking up, dial *166*000000#, then onhook and restart after “Setting successful”. 3.3 Configure LAN Port’s IP Address Before configuration, please ensure:(1)The device is power on; (2)devices connecting 8  Dinstar Technologies Co., Ltd.  ...
  • Page 14: Web Configuration

    IP address. 4.1.1 Login Device LAN port default IP address is 192.168.11.1, WAN port default obtain IP address by DHCP. Advice to modify the IP address of the local computer equipment and ensure that 9  Dinstar Technologies Co., Ltd.  ...
  • Page 15: Login Web

    192.168.11.10 –t order to check the connectivity between them . 4.1.2 Login WEB Open web browser, then input IP address of device, Press “Enter”, it pop up logging on identity authentication interface. Figure 4.1-1 DAG FXS Login Interface 10  Dinstar Technologies Co., Ltd.  ...
  • Page 16: Navigation Tree

    DAG series voice gateway web configuration interface mainly includes navigation tree and the right configuration interface. Choose navigation tree in order to entry into the configuration interface. Figure 4.2-1 Navigation Tree When device is in bridge mode, navigation tree won’t display "routing configuration" items 11  Dinstar Technologies Co., Ltd.  ...
  • Page 17: State And Statistics

    "DHCP service", "DMZ host", "forward rules" and "static routing" and "ARP" etc. 4.3 State and Statistics 4.3.1 System Information System information interface shows the run information as following figure 4.3.1 below: Figure 4.3-1(1) System Information (Bridge mode) Figure 4.3-1(2) System Information (Router mode) 12  Dinstar Technologies Co., Ltd.  ...
  • Page 18: Registration Information

    Network Traffic Statics Total bytes of message received and sent by network port. Version Includes: product mode, software version, hardware version and built time etc. 4.3.2 Registration Information Figure 4.3-2 Port and Port group registration information 13  Dinstar Technologies Co., Ltd.  ...
  • Page 19: Tcp/Udp Statistics

    4.5.1 Local Network DAG FXS/FXO hybrid gateway has two kinds of work mode: route and bridge. When DAG is set route mode, the DAG will work as small router and NAT function has enabled. In this 14  Dinstar Technologies Co., Ltd.  ...
  • Page 20 When it set to bridge mode, only need to configure WAN port IP address and DNS. If set to route mode, default LAN port IP will display and it can be change by users. Network configure interface as below: Figure 4.5-1Route Mode 15  Dinstar Technologies Co., Ltd.  ...
  • Page 21 When select “PPPoE”, please fill in account and password offered by ISP in internet • account and password. 【Notes】 : 1) If select automatically obtain IP address, please ensure DHCP server in network and work normally. 16  Dinstar Technologies Co., Ltd.  ...
  • Page 22: Vlan Parameter

    IEEE 802.1p standard, Traffic class expediting and dynamic multicast filtering. It describes important methods for providing QoS at MAC level. IEEE 802.1p is in fact quite good. Lower priority level packets are not sent, if there is packets in queued in higher level 17  Dinstar Technologies Co., Ltd.  ...
  • Page 23 Fill out an ID to describe a data VLAN group, ID 0 Data 802.1Q VLAN ID(0-4095) used to management VLAN, can’t used to service configure. Data VLAN 802.1 protocol to control network traffic priority, Data 802.1p Priority(0-7) Priority from 0-7. 18  Dinstar Technologies Co., Ltd.  ...
  • Page 24: Mac Clone (Routing Mode)

    MAC address of bound computer to the ISP server and let the ISP server think that used only a single piece of computer, in fact many computers in sharing the Internet. This function used to prevent ISP limiting to share the Internet. 19  Dinstar Technologies Co., Ltd.  ...
  • Page 25: Dhcp Server (Routing Mode)

    DMZ (Demilitarized Zone) connect web, e-mail etc. server allowed external to access to this area. Make the internal network located the back of the zone of confidence and not allow any access, separation of inside and outside the network, protect user 20  Dinstar Technologies Co., Ltd.  ...
  • Page 26: Forward Rule (Routing Mode)

    Port (0-1024) and all the foreign communication agreement; while the forward rule offers a single or a few port foreign communication on some protocol. When the conflicts exist between forward rule and DMZ host, the configuration of forwarding rules is preferred. Forward rule configuration interface as follows: 21  Dinstar Technologies Co., Ltd.  ...
  • Page 27: Static Route Table

    When there are many segments in LAN network and need to complete some specific application among these segments, the static route need to be configured. Static Route configuration interface as follows: Figure 4.5-8 Static route configuration Interface 22  Dinstar Technologies Co., Ltd.  ...
  • Page 28: Arp

    Presence, Find-me, Music On Hold. 3)SIP server based on Linux platform, such as: OpenSER, sipXecx, VoS, Mera etc. 4) SIP server based on windows platform, such as :miniSipServer, Brekeke, VoIPswitch etc. 23  Dinstar Technologies Co., Ltd.  ...
  • Page 29 1800s. Secondary SIP heartbeat Heartbeat message detect the connection status between device and SIP server. Use Random Port Random SIP service ports for DAG Set Local SIP port Default SIP service port is 5060. 24  Dinstar Technologies Co., Ltd.  ...
  • Page 30: Port Configuration

    User account information, provided by VoIP service provider (ITSP). Usually in User ID the form of digit similar to phone number or actually a phone number. Primary/Secondary SIP SIP service subscriber’s Authenticate ID used for authentication. Can be 25  Dinstar Technologies Co., Ltd.  ...
  • Page 31: Advanced

    FXO is a telephone. So just lead a inside to FXO port from company’s internal, or directly line a straight up in FXO from the telecom. FXO parameters include: Call progress Tone, Timeout for Dialing, Send Polarity Reversal 26  Dinstar Technologies Co., Ltd.  ...
  • Page 32                         DAG1000/2000 Series FXS/FXO Voice Gateway User Manual   etc. Configuration interface as follow: Figure 4.8-1 FXS/FXO Parameters Configuration Interface 27  Dinstar Technologies Co., Ltd.  ...
  • Page 33 Otherwise, the call display will show FXO port number. FXO Keep Onhook until Enable this function, when call from PSTN to FXO port, FXO port set Callee Answered auto-dial, and pick up after the extension number connection. This function 28  Dinstar Technologies Co., Ltd.  ...
  • Page 34: Media Parameter

    How long time no RTP packet allowed. Adjust impedance, used to impedance matching when FXO and PBX AC/DC Impedance docking. 4.8.2 Media Parameter Media parameter mainly include: RTP start port, DTMF parameter, Prefered Vocoder. Configuration Interface as follow: 29  Dinstar Technologies Co., Ltd.  ...
  • Page 35 Default is disable, if enable, according to the current noise environment dynamically adjust mute inhibit threshold, thus in the user in Slience Suppression silent state stop transmission background noise bag and save about VoIP bandwidth. In 30  Dinstar Technologies Co., Ltd.  ...
  • Page 36: Sip Parameter

    RTP Mode in SDP when Call Holding not receive and not send packet, then doesn’t play call waiting tone. Enable this function, users may use the * business call IP IP-to-IP Call address on the phone. 31  Dinstar Technologies Co., Ltd.  ...
  • Page 37 Voice mail instructions : Here DAG work with Elastixes the example, introduces how voicemail work in DAG. 1) DAG register to Elastix server. Corresponding extension number enable voice mail function in Elastix and set password. As below: 32  Dinstar Technologies Co., Ltd.  ...
  • Page 38                         DAG1 1000/2000 Se eries FXS/FXO O Voice Gatew way User Man nual   Figure e 4.8-4 Elastix Voicemail Con nfiguration Int terface 2)C Check feature e code in Elas stix and chan nge it as nece essary.
  • Page 39                         DAG1 1000/2000 Se eries FXS/FXO O Voice Gatew way User Man nual   Figu ure 4.8-7 Voice email Setting 4) D DAG dial *200 0#, then dial voicemail ac ccount and th hen ask passw word for Vali idation.
  • Page 40: Digit Map

    1. Supported objects Digit: A digit from "0" to "9". Timer: The symbol "T" matching a timer expiry. DTMF: A digit, a timer, or one of the symbols "A", "B", "C", "D", "#", or "*". 35  Dinstar Technologies Co., Ltd.  ...
  • Page 41 "411". We have a partial match with "xxxxxxx", but a complete match with "x11", and hence we send "411" to the Call Agent. 2. [2-8] xxxxxx | 13xxxxxxxxx Means that first is "2","3","4","5","6","7" or "8", followed by 6 digits; 36  Dinstar Technologies Co., Ltd.  ...
  • Page 42: Feature Codec

    Means that first is "1","2","3" or "5" or "7","8","9", followed by 2 digits. 4.8.6 Feature Codec Feature codec includes device function and call function. Feature codec as follow: Figure 4.8-10 Feature Code Configuration Interface 37  Dinstar Technologies Co., Ltd.  ...
  • Page 43 *92*+ forward no reply number# Call Forward No Reply Deactivate *93#, close this function Do Not Disturb Activate *78#, enable DND function Do Not Disturb Deactivate *79#, close DND function Dial Voicemail *200#, visit voice mail box 38  Dinstar Technologies Co., Ltd.  ...
  • Page 44: System Parameter

    NAT for a local port. Two back of NAT router devices established UDP communication through this information. STUN doesn’t support TCP connection and H.323. 2)NTP:Network Time Protocol(NTP)is a computer time synchronization protocol. System parameter configuration interface as follow: Figure 4.8-11System Configuration Interface 39  Dinstar Technologies Co., Ltd.  ...
  • Page 45: Call & Routing

    Enable or disable accessing web by WAN Telnet Port Telnet service port, default is 23. 4.9 Call & Routing 4.9.1 Port Group Port group parameter include: Index, description etc. Port group configure interface as follow: 40  Dinstar Technologies Co., Ltd.  ...
  • Page 46 (ITSP). Usually in the form of digit similar to phone number or actually a phone number. SIP service subscriber’s Authenticate ID used for Primary/Secondary Authenticate ID authentication. Can be identical to or different from SIP User 41  Dinstar Technologies Co., Ltd.  ...
  • Page 47: Ip Trunk

    DAGs and also receiving incoming calls from other peer to peer gateway. IP trunk is help to DAGs establish peer-to-peer call between DAGs and other VoIP phones. IP trunk will be used in routing configuration. 42  Dinstar Technologies Co., Ltd.  ...
  • Page 48: Routing Configuration

    Default is disable, if enable, DAG will send “OPTION” to peer device 4.9.3 Routing Configuration Figure 4.9-3 Routing Parameter Configuration Interface This option determines the following routing of call take effect before or after manipulation. 43  Dinstar Technologies Co., Ltd.  ...
  • Page 49: Ip-Tel Routing

    Callee Prefix 008675526456659, the called prefix can be 0086755 or 00.,“any” means match any called number Calls to This call routing is routing to port or port group 44  Dinstar Technologies Co., Ltd.  ...
  • Page 50: Tel-Ip/Tel Routing

    Callee Prefix 008675526456659, the called prefix can be 0086755 or 00., “any” means match any called number Calls to This call routing is routing to port, port group, IP trunk and SIP server. 45  Dinstar Technologies Co., Ltd.  ...
  • Page 51: Manipulation Configuration

    This call routing is routing to port, port group Stripped Digits from Left Remove the called number digits from the left Stripped Digits from Right Remove the called number digits from the right Prefix to Add Add a number prefix 46  Dinstar Technologies Co., Ltd.  ...
  • Page 52: Tel-Ip Caller

    Add a number suffix Number of Digits to Leave from Starting from the right to retain the called number digits Right 4.10.2 Tel-IP Caller Figure 4.10-2 Tel-IP Caller Configuration parameters are the same with “IP->Tel Callee”. 47  Dinstar Technologies Co., Ltd.  ...
  • Page 53: Tel-Ip Callee

    Syslog agreement belongs to a kind of master slave agreement: Syslog sender will sent a small text information (less than 1024 bytes) to syslog the receiver. The receiver are: “syslogd”、 “syslog daemon” or syslog server. Syslog message can be transferred by TCP/UDP. 48  Dinstar Technologies Co., Ltd.  ...
  • Page 54: Firmware Upload

    2) Browse files and choose the loading program (Name the file extension. ldf) 3) Click “Upload”, the upload process will last about 60s and device can automatically restart after uploading.(The firmware update process don't shut off the power) Figure 4.11-2 Firmware upload Configuration 49  Dinstar Technologies Co., Ltd.  ...
  • Page 55: Data Backup

    It is ping. Used to test internet and analyzed network fault. Application format:Ping IP address. It is used to check the network connectivity or network connection speed command. Pinginstructions: 1) Click “ping test” 50  Dinstar Technologies Co., Ltd.  ...
  • Page 56: Tracert Test

    The next set have a hop limit value of 2, so that the second router will send the error reply. This continues until the destination host receives the packets and returns an ICMP Echo Reply message. Trace route uses the returned ICMP messages to produce a list of hops (which usually consists 51  Dinstar Technologies Co., Ltd.  ...
  • Page 57: Password Modification

    2) Fill IP address or domain connected, click start. Figure 4.11-6 Tracert Test Interface 4.11.7 Password Modification Includes WEB username and password, Telnet username and password modify. Note:Default web and telnet username and password is: admin, admin. 52  Dinstar Technologies Co., Ltd.  ...
  • Page 58: Factory Reset

    Click the “Save” button in the Configuration page to save the changes to the equipment configuration. The following screen confirms that the changes are saved. If the changes need restart, reboot or power cycle the equipment to make the changes take effect. Figure 4.11-9 Device Restart 53  Dinstar Technologies Co., Ltd.  ...
  • Page 59: Glossary

    ARP:Address Resolution Protocol • CID:Caller Identity • DND:Do NOT Disturb • DTMF:Dual Tone Multi Frequency • NTP:Network Time Protocol • DMZ:Demilitarized Zone • STUN:Simple Traversal of UDP over NAT • PSTN:Public Switched Telephone Network • 54  Dinstar Technologies Co., Ltd.  ...
