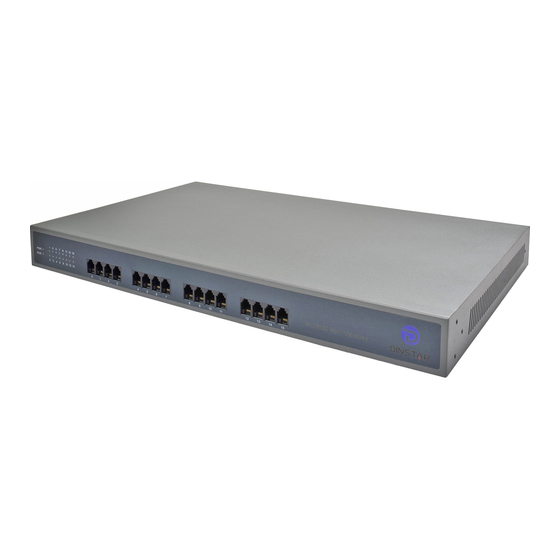

Dinstar DAG2000-16S Quick Installation Manual
  1. Manuals
  2. Brands
  3. Dinstar Manuals
  4. Gateway
  5. DAG2000-16S
  6. Quick installation manual

Dinstar DAG2000-16S Quick Installation Manual

Hide thumbs Also See for DAG2000-16S:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

欢迎您选购鼎信通达旗下产品！
THANKS FOR CHOOSING DINSTAR'S VOIP GATEWAY!
安装设备之前请仔细阅读本安装指导。鼎信通达为客户提供全方位的技术支持，需要更多在线
Please read this guide carefully before installing the gateway. If you need any technical
技术支持，请拨打技术支持热线电话：0755-61919966。
support,
please contact us
网址：www.dinstar.cn
Tel: +86 755 61919966
Email: support@dinstar.com
Web: www.dinstar.com
Quick Installation Guide
DAG2000-16S
DAG2000-24S
DAG2000-32S
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAG2000-16S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dinstar DAG2000-16S

Summary of Contents for Dinstar DAG2000-16S

  • Page 1 Quick Installation Guide DAG2000-16S DAG2000-24S DAG2000-32S 欢迎您选购鼎信通达旗下产品！ THANKS FOR CHOOSING DINSTAR’S VOIP GATEWAY! 安装设备之前请仔细阅读本安装指导。鼎信通达为客户提供全方位的技术支持，需要更多在线 Please read this guide carefully before installing the gateway. If you need any technical 技术支持，请拨打技术支持热线电话：0755-61919966。 support, please contact us 网址：www.dinstar.cn Tel: +86 755 61919966 Email: support@dinstar.com...

  • Page 2: Description Of Indicators

    Port Type Network Port RJ11 RJ21 Model DAG2000-16S DAG2000-24S DAG2000-32S For the DAG 2000 series product, FXS Ports support two types, RJ11 or RJ21. Please check the table above for the number of ports on specific product models; Please confirm your product model before installation and follow the installation guideline for the model.

  • Page 3: Installation Attentions

    Installation Attentions When installing the device, please confirm the type of telephone interface of the device: DAG2000-16S is equipped with RJ11 ports; DAG2000-24S/32S is equipped with both RJ11 and RJ21 ports; Please go to Wire Sequence of this guideline to get more information about wire sequence.

  • Page 4: Installation Instructions

    Installation Instructions Connection Diagram for DAG2000-16S Connect gateway with network via a switch Connect gateway with power input and grounding lug Grounding Network Cable Cable Grounding Lug Network Cable AC 100-240V Switch Connect FXS ports with analog phones RJ11 telephone line...

  • Page 5: Wire Sequence

    Connect FXS ports(RJ11) with analog phones RJ11 Cable Telephone Wire Sequence ·Rj21 Wire Sequence DAG2000-24S/32S support RJ21 Interfaces for FXS connections. One RJ21 cable has 25 pairs of wires, but the 25 pair of wires never used. It means that RJ21 interface only support 24 pairs of RJ11 interfaces.
  • Page 6 Modify PC’s IP Address To log in the Web Management System of the gateway, you need to modify the IP address of PC first to make it at the same network segment with the gateway. On the PC, click ‘Network (or Ethernet) → Properties’. Double-click ‘Internet Protocol Version 4 (TCP/IPv4)’.
  • Page 7 Modify Gateway’s IP Address If you want to modify the IP address of DAG1000-1S/2S/4S, please click 'Network → Local Network' in the navigation tree on the left of the Web Management System, and then input new IP address and DNS server address on the displayed interface.
  • Page 8 Dial *111# to restart the gateway. More Details This document only provides instructions for quick installation and basic configuration, For detailed configuration and parameter explanation, please refer to user manual or ask for online technical support. IP COMMUNICATION SOLUTIONS Shenzhen Dinstar Co., Ltd. Web: www.dinstar.com...

This manual is also suitable for:

Dag2000-24sDag2000-32s
