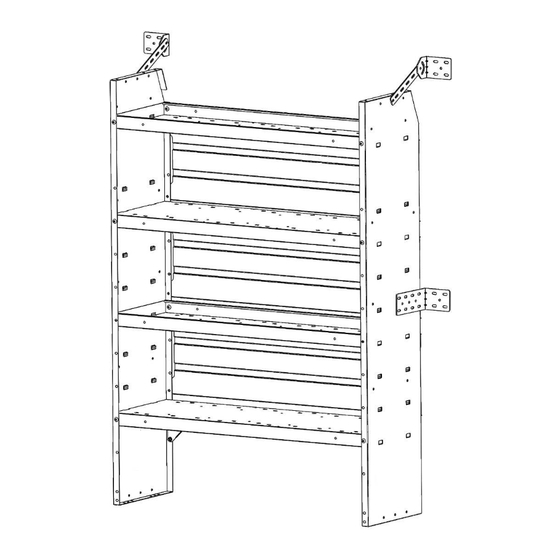

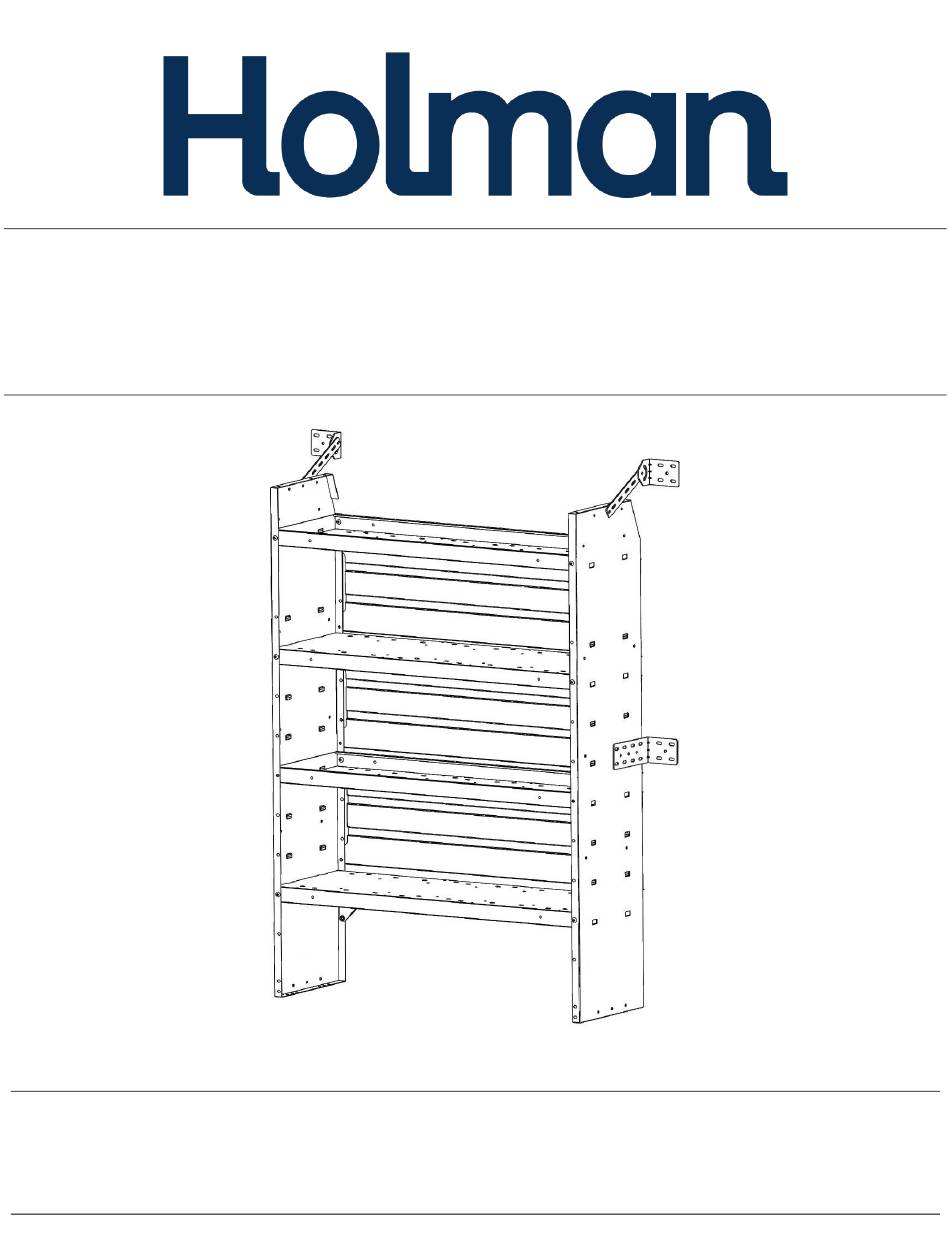

- Page 1 Installation Guide 4863 *Shelf not included. Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20220729R8 DATE: ________________...
-
Page 2: Table Of Contents
Step 6 – Mount to Shelf ........................6 Before You Begin Read all instructions prior to assembling or installing any Holman product. Ensure it is safe to drill before drilling anywhere on vehicle. Instructions shown using a 60” high x 42” wide shelf. Instructions are the same for both 32” wide and 52”... -
Page 3: Parts
Instructions – 4863 Parts Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Plus Nuts Installation Instructions
Instructions – 4863 Plus Nuts Installation Instructions DO NOT drill beyond depth of floor or upper installation surface. Always check for wires, fuel tanks and lines, brake lines and other important vehicle functionality items prior to drilling and installing all products. -
Page 5: Step 1 - Insert Shelf Into Van
Instructions – 4863 Step 1 – Insert Shelf into Van Set shelf in vehicle in desired location. If using factory threaded bosses be sure to line mounting brackets up first. Floor spacers are provided if desired location does not have a solid platform. -
Page 6: Step 3 - Install Top Mount
Instructions – 4863 Step 3 – Install Top Mount Place upper mount bracket firm against a structural member of van. Mark two locations for installing plus nuts. The locations of these holes will vary based on your vans application. We recommend installing at least two plus nuts per upper mounting bracket. -
Page 7: Step 5 - Mount To Floor
Instructions – 4863 Step 5 – Mount to Floor Mark the location of the best-fit holes onto the floor. Be sure to mark both front and rear. Remove shelf. Install plus nuts per the above Plus Nut Installation Instructions.
