- Page 1 Installation Guide 48220 Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20230517R1 DATE: ________________...
- Page 2 7/16” Socket and Wrench #2 Phillips Screwdriver Before You Begin Read all instructions prior to assembling or installing any Holman product. Have shelf unit ready to install floor angle. ENSURE SAFETY WHILE INSTALLING OR DRILLING INTO VEHICLE.

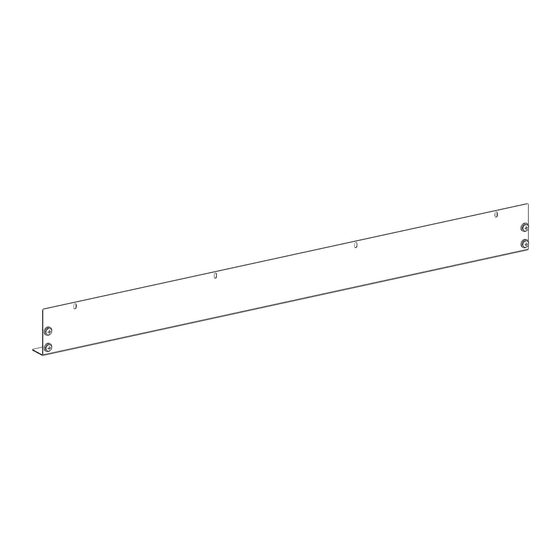

- Page 3 Instructions – 48220 Hardware Step 1 – Place Floor Angle in Position Place floor angle in orientation shown with the small flange parallel to the floor and large flange against inside of front shelf flanges. Using four 1/4” x 1/2” pan head screws, four 1/4" flat washers, and four 1/4” flanged lock nuts, bolt floor angle to the shelf.
- Page 4 Instructions – 48220 Step 2 – Install Door Kit (optional) Previously installed floor angle can be used to mount door kit. Follow instructions included in the door kit (40010) to install. GO BACK AND TIGHTEN ALL HARDWARE. INSTALLATION IS COMPLETE.
