Summary of Contents for Holman 48161

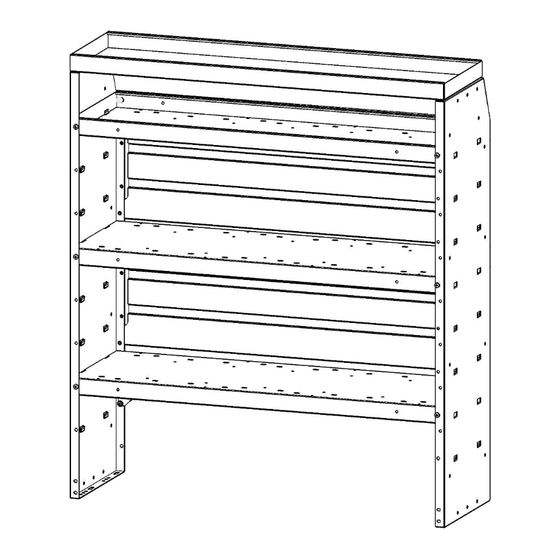

- Page 1 Installation Guide 48161 *Shelf sold separately. Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20221108R1 DATE: ________________...
-
Page 2: Table Of Contents
Step 4 – Align and Square ........................4 Before You Begin Read all instructions prior to assembling or installing any Holman product. Have 42” shelf assembled prior to install. For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) -
Page 3: Parts List
Instructions – 48161 Parts List Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Step 1 - Prepare Shelf Unit
Instructions – 48161 Step 1 – Prepare Shelf Unit Remove both top-rear bolts from assembled shelf unit where the top shelf is installed. Step 2 – Mount Top Back Panel Place Top Back Panel flush against the backside of shelf unit. Bolt through the pemnut where previous bolt was removed. -
Page 5: Step 3 - Mount Top Shelf
Instructions – 48161 Step 3 – Mount Top Shelf Place Top Shelf on top of assembled shelf unit with the Top Back Panel. Bolt Top Shelf through Top Back Panel and through the top of the shelf assembly using three #10 x 5/8”...
