7380F Multi-Point Lock
Installation Instructions

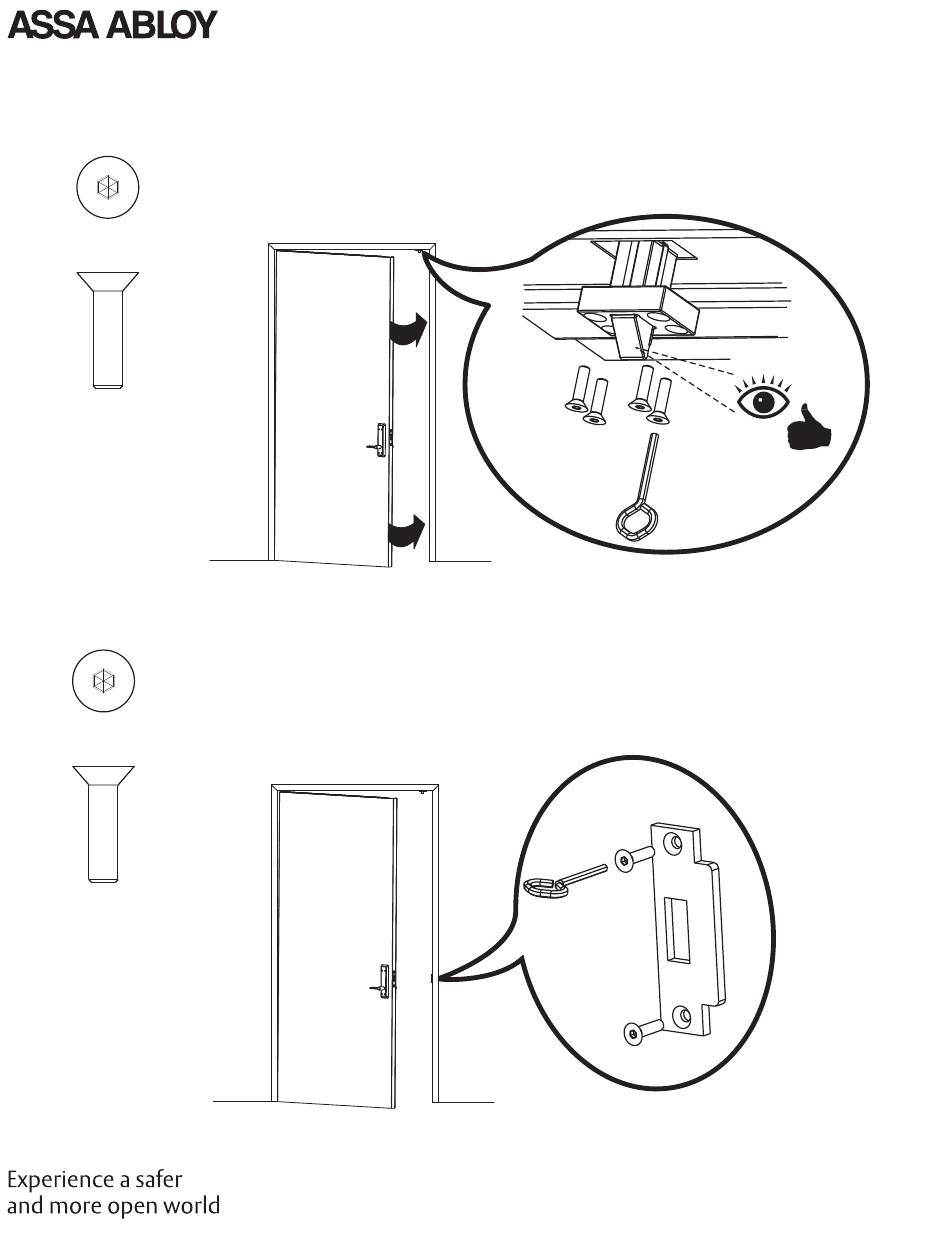

14. Install Top Latch into Door Frame
(4)
Flat Head Hex Socket
1/4-20x1"
15. Attach Deadbolt Strike Plate to Frame
(2)
Flat Head Hex Socket
1/4-20x1"
80-8470-7380-000 10/23
1-800-438-1951 • www.assaabloy.com
Copyright © 2016, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
