QuickShifter easy
Supplementary Manual
Honda CB1000R ABS 2008- (iQSE-W1 + QSH-P2T)

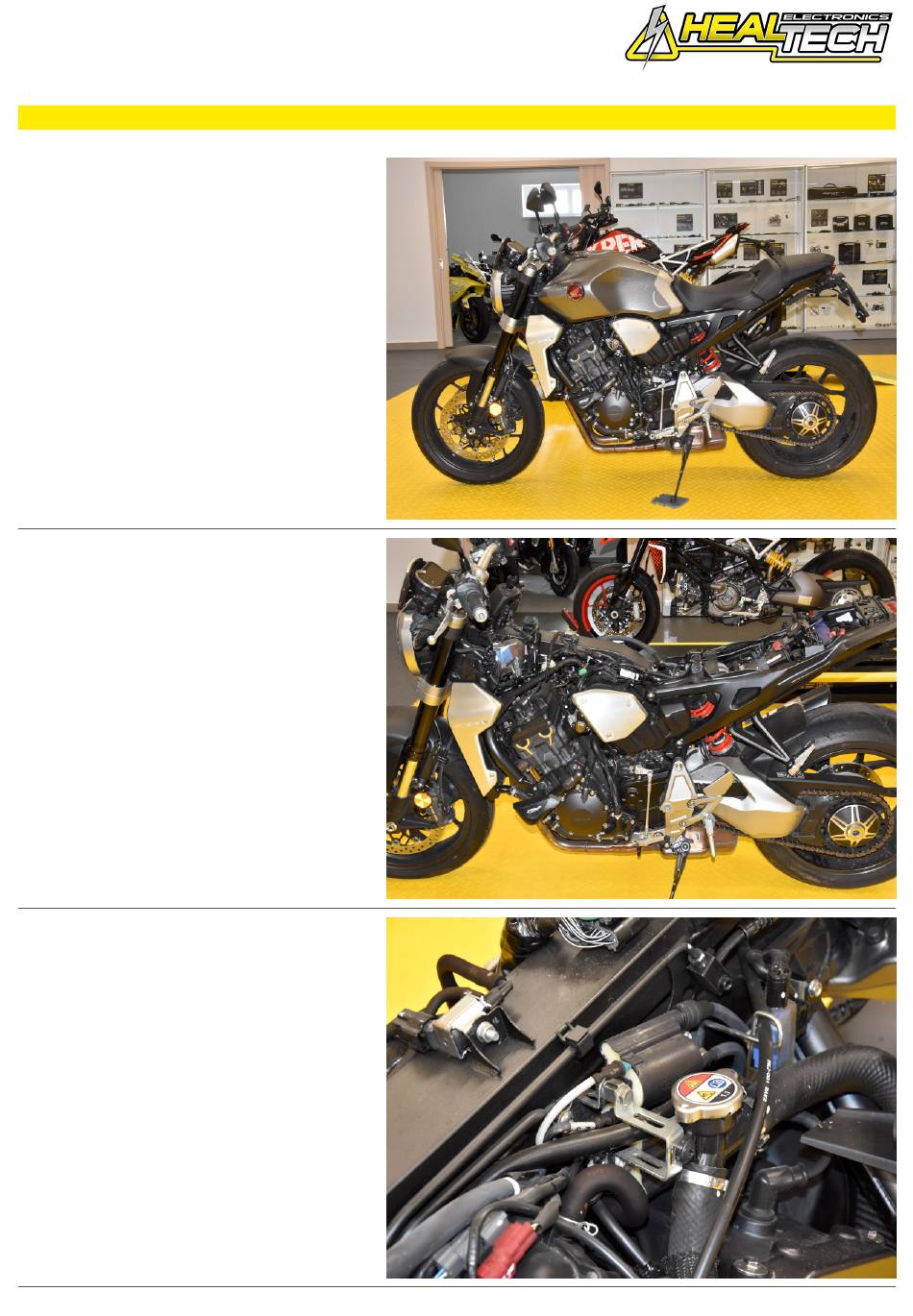

Secure the bike on a stand.
Remove the seats.
Remove the black plastic cover from the
fuel tank.
Remove the fuel tank.
Locate the ignition coil connectors under
the fuel tank.
w w w . h e a l t e c h - e l e c t r o n i c s . c o m
1/3
