Healtech iLogger easy iLE-1-KIT Supplementary Manual

Yamaha yzf-r7 abs 2022

Table of Contents

Download this manual

iLogger easy

Supplementary Manual

Yamaha YZF-R7 ABS 2022- (iLE-1-KIT)

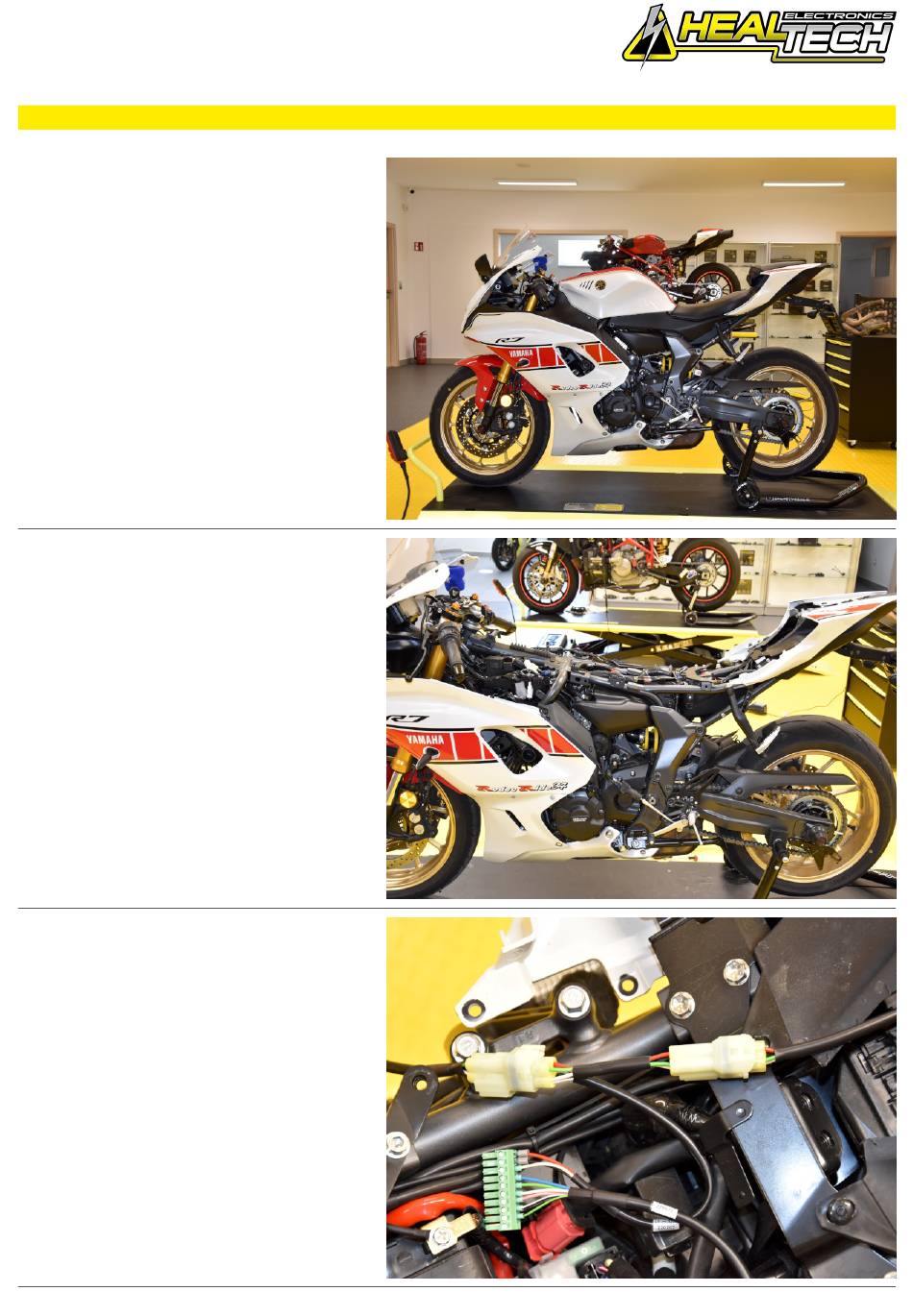

Secure the bike on a stand.

Remove the plastic covers from the fuel

tank.

If the iLE is used together with the iQSE

quickshifter, plug the iLE-H-iQSE

connectors in-line with the 4-pole iQSE

connectors, then connect the Red, Black

and White wires to the green terminal

block as show on the photo.

(Without the iQSE connect the iLE-H-PWR

Red and White wire to the ignition coil

connectors and the iLE Black wire terminal

to the battery negative terminal.)
