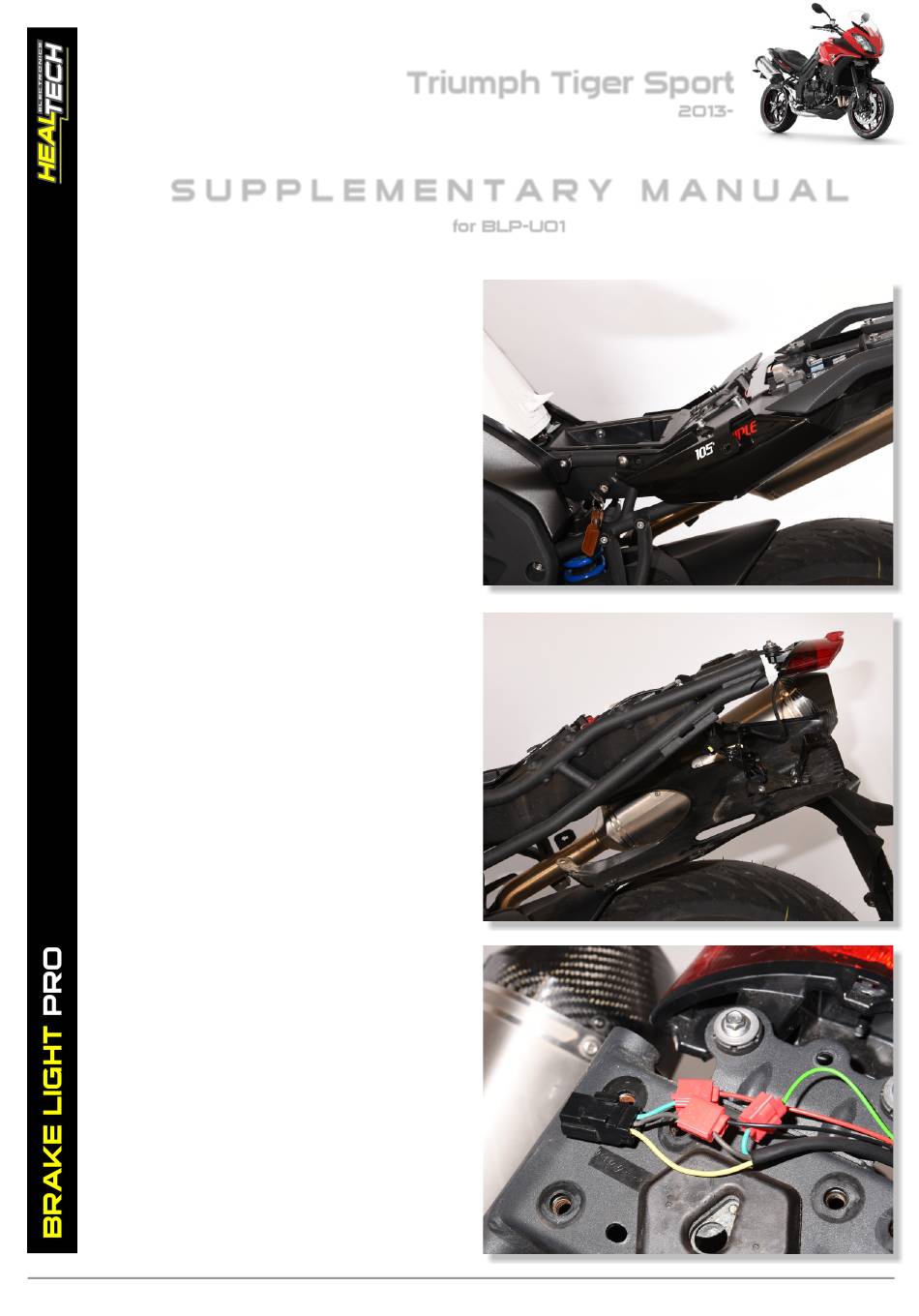

Healtech BRAKE LIGHT PRO Supplementary Manual

Triumph Tiger Sport
2013-
S U P P L E M E N T A R Y M A N U A L
for BLP-U01

Remove the seat.

Remove the rear fairings.

Locate the rear light assembly
connector.
(Black, 3-pole connector)
Connect the BLP black wire
to the black wire.

Cut the light green wire.

Connect the BLP red wire to
the light green wire end, which
goes to the bike's main wiring
harness.
Connect the BLP green wire to
the light green wire end,
which goes to the rear light
assembly.
www.healtech-electronics.com
PAGE 1/2
