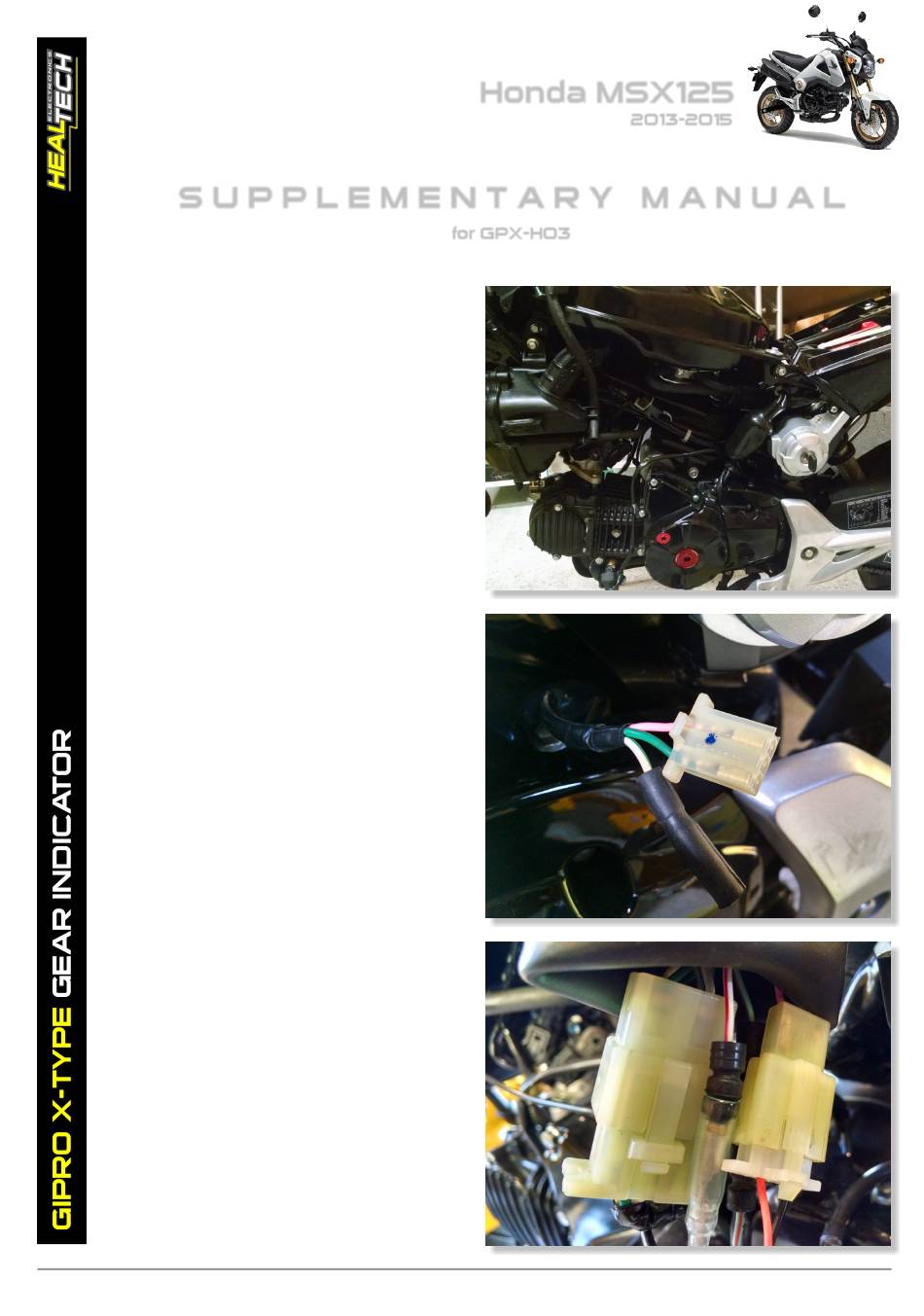

Honda MSX125
2013-2015
S U P P L E M E N T A R Y M A N U A L
for GPX-H03
Remove the left side fairing.
Remove frame cover
under seat at left side.
Route the GPX cable through
the top opening of the
dust boot.
Locate the speed sensor
connectors in dust boot.
(transparent, 3-pole connectors
and white/red-white/green, 1-pole connectors)
Plug GPX connectors in-line
with the speed sensor
connectors.
(transparent, 3-pole connectors
and white/red-white/green, 1-pole connectors
in dust boot at the left side)
www.healtech-electronics.com
PAGE 1/2
