SpeedoHealer CAN

Supplementary Manual

MV Agusta Turismo Veloce 800 ABS TC 2015-2020 (SH-CAN)

Secure the bike on a stand.

Remove the seats.

Remove the side fairings from the fuel

tank.

Remove the upper cowl.

Locate the the ABS connector under the

headlight.

w w w . h e a l t e c h - e l e c t r o n i c s . c o m

1/4

Need help?

Do you have a question about the SpeedoHealer CAN and is the answer not in the manual?

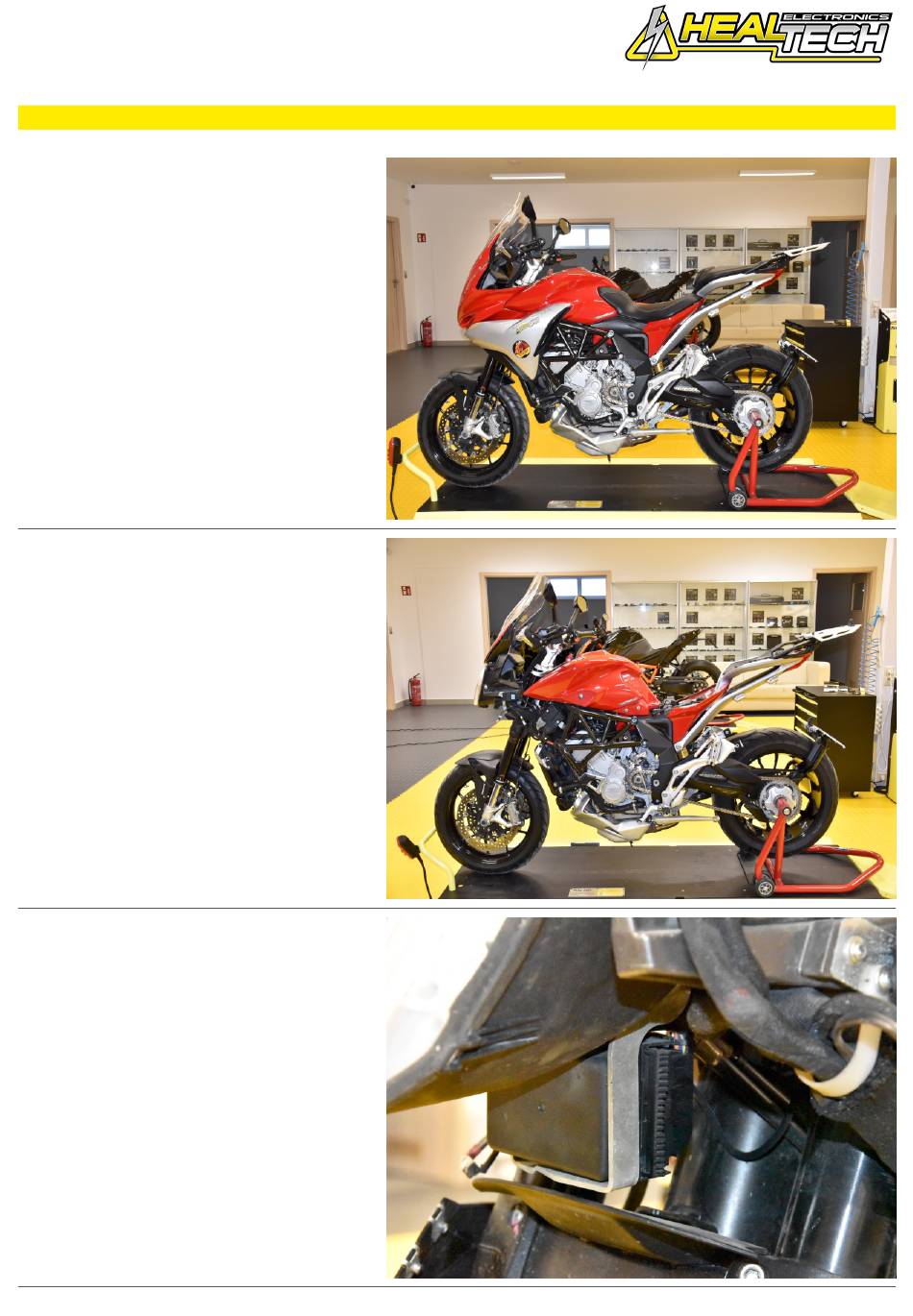

Page 1 SpeedoHealer CAN Supplementary Manual MV Agusta Turismo Veloce 800 ABS TC 2015-2020 (SH-CAN) Secure the bike on a stand. Remove the seats. Remove the side fairings from the fuel tank. Remove the upper cowl. Locate the the ABS connector under the headlight.
Page 2 SpeedoHealer CAN Supplementary Manual MV Agusta Turismo Veloce 800 ABS TC 2015-2020 (SH-CAN) Cut the White wire about 2,5cm (1") of the connector. Connect the SH Green wire to the White wire end, which goes to the ABS module. Use a yellow butt connector.
Page 3 SpeedoHealer CAN Supplementary Manual MV Agusta Turismo Veloce 800 ABS TC 2015-2020 (SH-CAN) Connect the SH Yellow wire to the Green wire end, which is at the wiring harness side. Use a yellow butt connector. Splice the SH Red wire to the Orange/Blue wire of the ABS module.
Page 4 SpeedoHealer CAN Supplementary Manual MV Agusta Turismo Veloce 800 ABS TC 2015-2020 (SH-CAN) Typical position for the SpeedoHealer CAN. Secure the unit properly. w w w . h e a l t e c h - e l e c t r o n i c s . c o m...
