Healtech iLogger easy Supplementary Manual

For ktm 690 duke abs tc

Table of Contents

Download this manual

iLogger easy

Supplementary Manual

KTM 690 Duke ABS TC 2008-2020 (iLE-1-KIT)

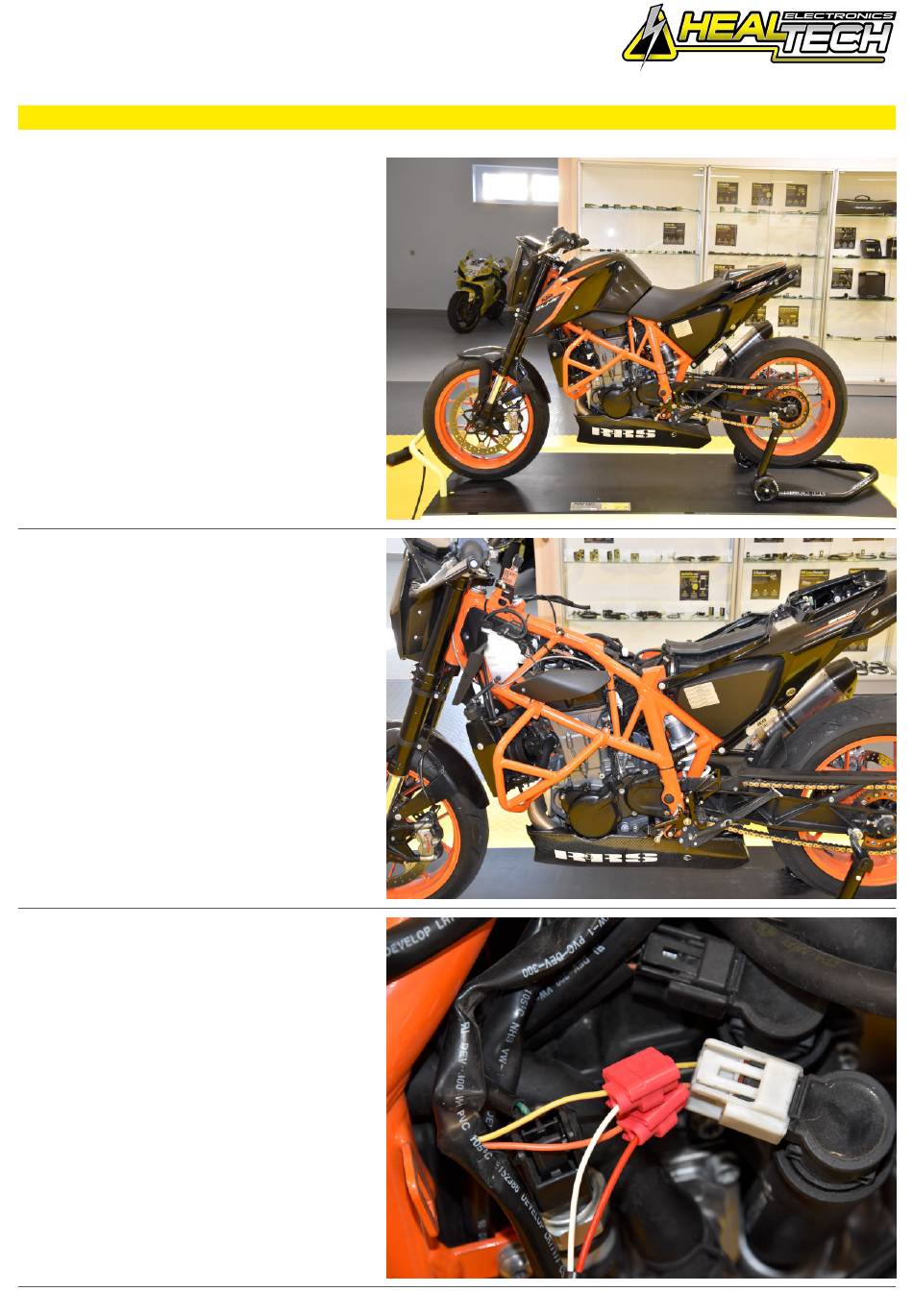

Secure the bike on a stand.

Remove the plastic covers from the fuel

tank.

Connect the iLE-H-PWR Red wire to the

Orange wire of the ignition coil

connector. (Switched +12V)

Connect the iLE-H-PWR White wire to

the Yellow/Violet wire of the ignition coil

connector.(RPM)
