DentalEZ RAMVAC User Manual

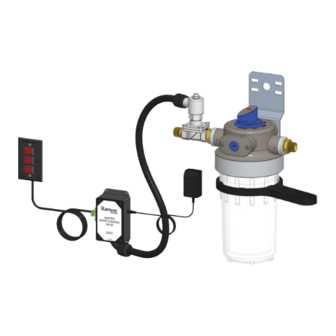

Master water control valve
Hide thumbs Also See for RAMVAC:
Table of Contents

Advertisement

Quick Links

Download this manual
USER
MANUAL
MA S TE R WATER CON TR OL VALV E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAMVAC and is the answer not in the manual?

Questions and answers

Related Manuals for DentalEZ RAMVAC

Summary of Contents for DentalEZ RAMVAC

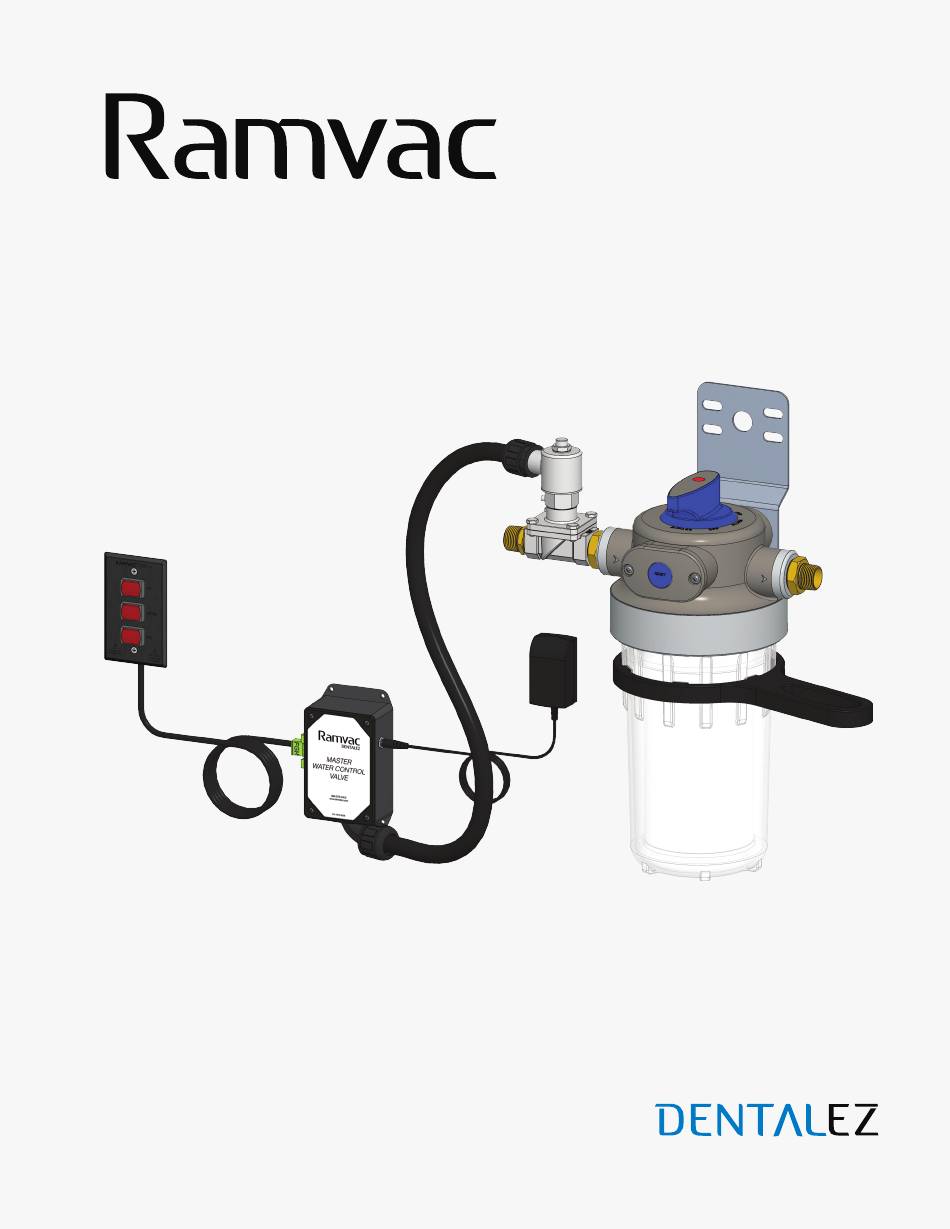

  • Page 1 USER MANUAL MA S TE R WATER CON TR OL VALV E...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION I - INTRODUCTION Product Overview ..........................1 Product Features..........................2 Dimensions ............................3 Recommended Environmental Conditions ..................4 Classifications ............................. 4 Explanation of Symbols & Signs ......................5 Packaging ............................5 Safety Precautions ..........................7 SECTION II - INSTALLATION Master Water Control Valve .........................
  • Page 3 MASTER WATER CONTROL VALVE NOTES: 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 4: Section I - Introduction

    LEAVE THIS MANUAL IN THE DOCTOR’S OFFICE. The master water control system is not designed for use in water with high mineral content. If high NOTICE mineral content is present, DENTALEZ recommends a water softening treatment to prolong life of product. BYPASS VALVE...

  • Page 5: Product Features

    MASTER WATER CONTROL VALVE SECTION I - INTRODUCTION PRODUCT FEATURES Reduce the complexity of installation with the Ramvac ® Master Water Control Valve. Make controlling your water supply and safeguarding against leaks simple and easy! STANDARD FEATURES  No resealing is needed with the easy left/right installation.

  • Page 6: Dimensions

    SECTION I - INTRODUCTION DIMENSIONS MODEL MWC075 MODEL MWC075R 13¾" (1/2" PLUMBING) 8½" 5¼" (3/4" PLUMBING) 20⅜" FRONT VIEW) (FRONT VIEW) 11⅞" 8½" 6⅞" 30" HARNESS 30" HARNESS 18⅝" " 18⅝" 3¼" 3¼" 72" POWER 5¾" 72" CORD POWER 5¾" CORD MODEL MWC075 ALL MODELS...

  • Page 7: Recommended Environmental Conditions

    All other components in the assembly are certified and/or  Temperature Range: 40°F to 100°F compliant with NSF 61 Annex G and/or NSF/ANSI 372, (94.4°C to 37.7°C) as required by the Safe Drinking Water Act, section 1417. 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 8: Explanation Of Symbols & Signs

    Do not discard any hardware = Caution or components until installation is complete. = Warning For any questions about an order, please contact a Ramvac customer service = Biohazard representative at 866-DTE-INFO. = Warning - Dangerous Voltage PACKAGE MEASUREMENTS = General Mandatory Action ...
  • Page 9 WATER PRESSURE NIPPLE REMOTE FORMER REGULATOR & 6-FOOT TRANSFORMER FITTINGS STRAIGHT NIPPLE SWITCH REMOTE FITTING CORD SWITCH (MWC075R ONLY) CORD FIGURE 3. PARTS INCLUDED IN PACKAGE FOR FIGURE 4. PARTS INCLUDED IN PACKAGE FOR MWC075/MWC075R MWC001 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 10: Safety Precautions

    SECTION I - INTRODUCTION SAFETY PRECAUTIONS Do not use with water that is microbiologically unsafe or of unknown source/quality without WARNING adequate disinfection before or after the filtration. Filter housing must be protected against freezing temperatures, frost, snow, sleet and ice. Exposure CAUTION to these elements can produce cracks and product failures.

  • Page 11: Master Water Control Valve

    SECTION II - INSTALLATION MASTER WATER CONTROL VALVE MASTER WATER CONTROL VALVE All Ramvac water control products CAUTION must be installed by a certified plumber. Installation must be in accordance with local plumbing codes.The rubber O-Ring provides the water-tight seal between the filter head and the bowl.

  • Page 12: Installing The Master Water Control Valve

    SECTION II - INSTALLATION INSTALLING THE MASTER WATER CONTROL VALVE  Remove bowl, O-ring and filter and set aside.Turn off 1/2" PLUMBING water supply and open nearest faucet to drain pipes Model MWC075 master water control valve will ® before installation. Apply about 6" of Teflon tape in need 3/4"...
  • Page 13 Repeat process for outlet fittings (FIGURE 11). FILTER HEAD ASSEMBLY OUTLET NIPPLE FIGURE 9. MEASURE CONFIGURED SYSTEM FITTING INLET NIPPLE FITTING FITTINGS (COMPRESSION, SOLDER, ETC.) FIGURE 11. INSTALL FILTER HEAD ASSEMBLY (Continued on the next page). 866-DTE-INFO dentalez.com PN: 7717-003C...
  • Page 14 SECTION II - INSTALLATION INSTALLING THE MASTER WATER CONTROL VALVE (CONTINUED) (Continued from the previous page). JUMPER WIRE 8. Attach the filter head assembly to the wall using four (4) screws (not supplied). Attach the control box to the wall using four (4) screws (not supplied). Connect remote switch wires to “FGH”...
  • Page 15 13. Use bowl/valve wrench to tighten. DO NOT OVER- FIGURE 17. TURN BYPASS VALVE TO "FILTER" TIGHTEN (FIGURE 16). POSITION; PRESS RED PRESSURE RELIEF BUTTON FILTER HEAD BOWL BOWL/VALVE WRENCH FIGURE 16. TIGHTEN BOWL USING BOWL/VALVE WRENCH 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 16: Electrical Connections

    SECTION II - INSTALLATION ELECTRICAL CONNECTIONS CONNECTING TO RAMVAC® MASTER CONTROL PANEL "FGH" CONNECTOR POWER JACK TO PLUG-IN TRANSFORMER ILLUMINATED ROCKER SWITCH (BACK SIDE OF SWITCH SHOWN) TO SOLENOID VALVE CONNECTING TO REMOTE PANEL SWITCH "FGH" CONNECTOR POWER JACK ROCKER SWITCH...

  • Page 17: Section Iii - Operation

    (refer to CARE & MAINTENANCE section). RIGHT TO LEFT WATER FLOW INSTALLATION BYPASS VALVE WATER FLOW WRENCH BYPASS VALVE “FILTER” POSITION SOLENOID “OFF” VALVE POSITION “BYPASS” POSITION FIGURE 19. "FILTER" , "OFF" AND "BYPASS" MODES OF OPERATION 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 18: Solenoid Valve Manual Override

    SECTION III - OPERATION SOLENOID VALVE MANUAL OVERRIDE The solenoid valve is a normally closed valve (needs power to open valve). When power is lost, the water supply to the suite will be shut off automatically. In order to restore water to suite temporarily, the solenoid valve can be manually overridden (FIGURE 20).

  • Page 19: Section Iv - Care & Maintenance

    Discard used filter cartridge. Rinse out bowl and fill VALVE WRENCH one-third with water. Add two tablespoons of bleach and scrub with nonabrasive brush or sponge. Rinse FIGURE 22. LOOSEN BOWL thoroughly. (Continued on the next page). 866-DTE-INFO dentalez.com PN: 7717-003C...
  • Page 20 SECTION IV - CARE & MAINTENANCE WATER FILTER CARTRIDGE REPLACEMENT (CONTINUED) (Continued from the previous page). 6. Use bowl/valve wrench to tighten bowl. DO NOT OVER-TIGHTEN (FIGURE 24). 4. Lubricate O-Ring with a coating of clean, food-grade silicone grease. Insert O-Ring back into bowl groove and smooth into place with finger.

  • Page 21: Filter Life Indicator Battery Replacement

    Reset filter life indicator to start timer by holding SCREWDRIVER reset button for 2 seconds until green light flashes. FIGURE 27. SEPARATE TIMER BASE FROM CAP NOTE: It is recommended that you change the battery every year to ensure your indicator works properly. 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 22: Time Application

    SECTION IV - CARE & MAINTENANCE TIMER APPLICATION After new battery is installed or filter cartridge is changed, push and hold the filter life reset button for approximately 2 seconds until green light flashes (FIGURE 31). The light will flash red in 90 days, indicating that it is time to change the filter cartridge.

  • Page 23: Section V - User Service Information

    SERVICE INSTRUCTION The chart below should be referenced when If the area of concern is not addressed in this manual, troubleshooting problems. If the suggested procedures contact Ramvac technical support at 866-DTE-INFO. do not resolve the problem, see the SERVICE INSTRUCTION that follows.

  • Page 24: Section Vi - Parts

    SECTION VI - PARTS REPLACEMENT PARTS LIST PART/KIT NAME PART/KIT NO. Filter Cartridge Kit (2-pack) 8801-040 Solenoid Valve Kit, 1/2" or 3/4" Plumbing 8801-041 Solenoid Valve Kit, 1" Plumbing 8801-042 Transformer Kit 8801-043 O-Ring Replacement Kit 8801-044 Water Filter Assembly 7699-005...
  • Page 25 MASTER WATER CONTROL VALVE NOTES: 866-DTE-INFO dentalez.com PN: 7717-003C...

  • Page 26: Limited Warranty

    We are not responsible for shipping damages. We will, however, help you file a claim with the freight carrier. Written repair estimates are available. DENTALEZ warrants all equipment and parts to be free of defects in material and workmanship, under normal usage under the following terms:...

  • Page 27: Privacy Policy

    Effective Date: November 1, 2023. Introduction and Overview. This Privacy Policy describes how DentalEZ, Inc. its subsidiaries and affiliates (collectively “DentalEZ,” “we,” “our,” or “us”) collects, uses, and shares information about you as well as your rights and choices. This Privacy Policy applies to your use of the DentalEZ equipment containing the Aeras platform, or similar “smart technology”...
