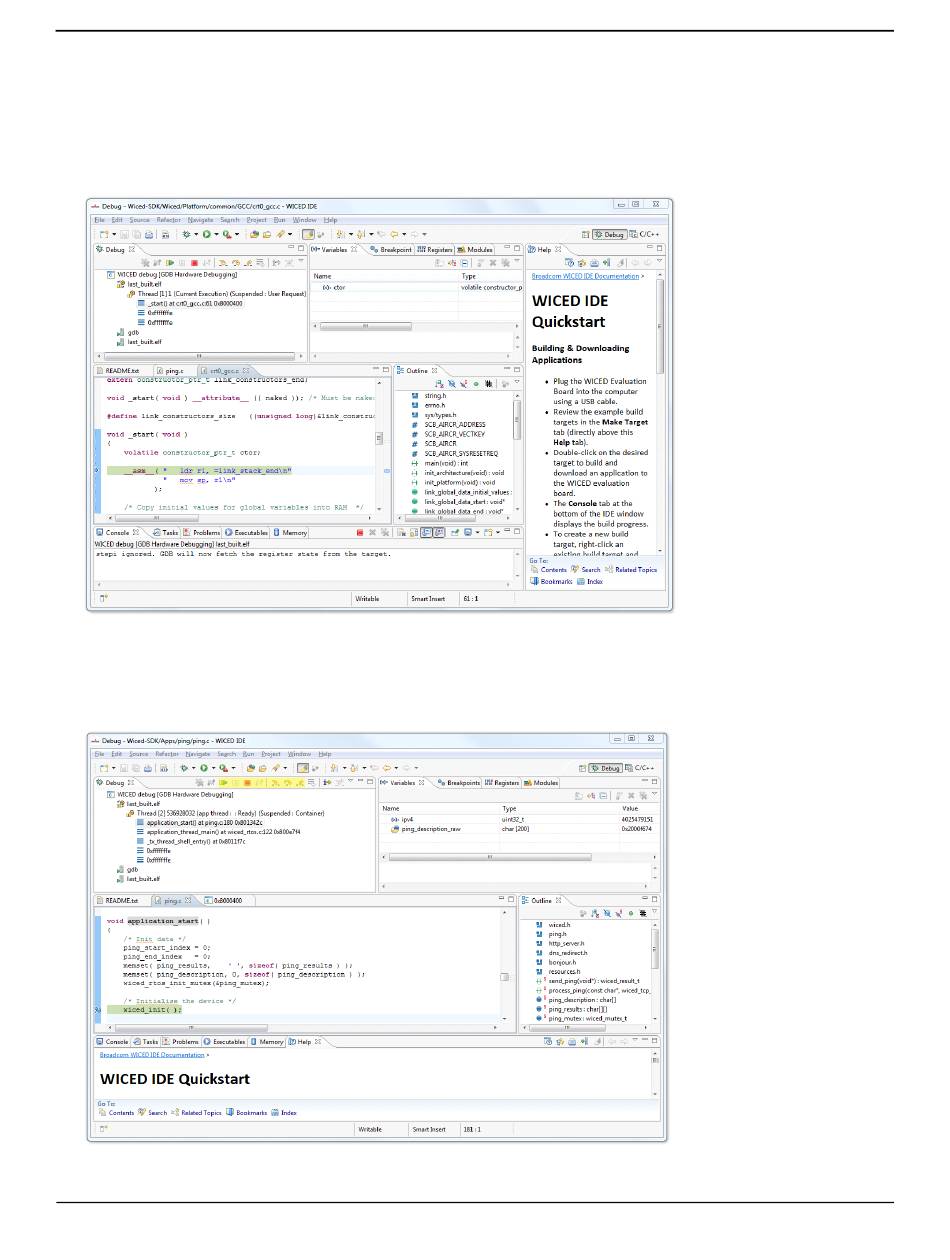

4. Launch the debugger: Click the green bug icon on the WICED IDE toolbar (or press F11 on Windows®
systems). The debugger starts. If the WICED IDE displays a Confirm Perspective Switch dialogue box, click
Yes to show the debug view.
To confirm the debugger is running, verify the blue JTAG LED on the WICED evaluation board is flashing,
and that the WICED IDE looks similar to the following screen capture.
5. Run to a breakpoint: To run the application to the 'wiced_init' breakpoint configured in Step 1, click the yellow/
green pause/play button in the Debug tab. The Debug tab control buttons are highlighted in yellow in the
following screen capture.
