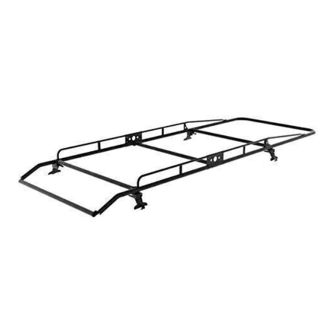

- Page 1 Instruction Guide 4089C Holman Rancho Cordova, CA 95742 800-343-7486 InstallationSupport@Holman.com 20221109R1 DATE: ________________...
-
Page 2: Table Of Contents
Tape Measure Before You Begin Read all instructions prior to assembling or installing any Holman product. Follow assembly instructions found with the rack to assemble and install rack. The 3/8” hardware will be used when installing the rack to the feet. -
Page 3: Parts List
Instructions – 4089C Parts List Hardware For Technical Support Call: 800-343-7486, Monday-Friday, 7AM - 4 PM (PST) Page 2... -
Page 4: Step 1 - Find Mount Locations On Roof Of Van
Instructions – 4089C DO NOT EXCEED MANUFACTURERS WEIGHT CAPACITY FOR ROOF! Step 1 – Find Mount Locations on Roof of Van Locate the mounting locations on each side of van. There will be a rain gutter along the edge of the roof. -
Page 5: Step 2 - Attach Feet To Rack
Instructions – 4089C Step 2 – Attach Feet to Rack Use the cross member from the rack box and attach foot in the orientation shown using 3/8” x 4” hex head bolt, two 3/8” flat washers, 3/8” spacer and a 3/8” lock nut. -
Page 6: Step 3 - Install Rack With Feet
Instructions – 4089C Step 3 – Install Rack with Feet Place rack onto roof of van. Be sure the feet installed in previous step goes onto the rain gutter flange. Adjust and center rack to your liking. Slide foot mount bracket through the foot. Pinch the rain gutter in between the mount bracket and the foot.
