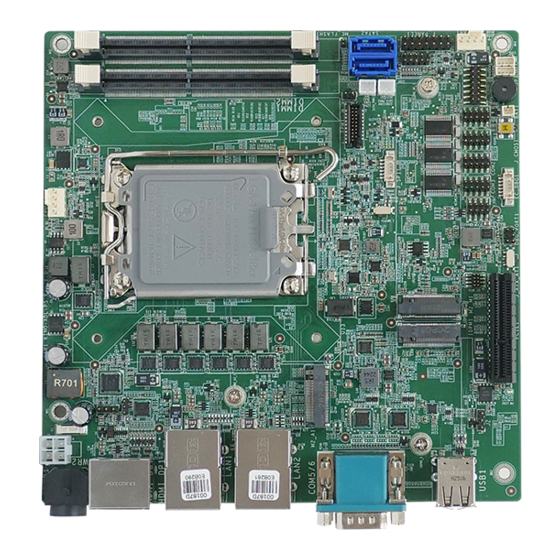

KINO-ADLPS
Mini-ITX Single Board Computer
Quick Installation Guide
Version 1.00
Features
12th Gen Intel® Core™ i7/i5/i3 and Celeron® processor (Alder Lake PS)
Two 3200 MHz DDR4 SO-DIMM slots
Support DisplayPort 1.4a, HDMI 2.0b & iDPM module
Support two 2.5GbE ports via Intel® I225V
PCIe Gen3 x4, M.2 M key, and M.2 A key slots for expansions
Packing List
1 x KINO-ADLPS single board computer
1 x SATA with power cable
1 x I/O shielding
1 x QIG (Quick Installation Guide)
November 1, 2023
Advertisement
Related Manuals for IEI Technology KINO-ADLPS
Summary of Contents for IEI Technology KINO-ADLPS
- Page 1 Support two 2.5GbE ports via Intel® I225V PCIe Gen3 x4, M.2 M key, and M.2 A key slots for expansions Packing List 1 x KINO-ADLPS single board computer 1 x SATA with power cable 1 x I/O shielding ...
- Page 2 ME_FLASH1: Flash descriptor security override jumper Status Description Open Disable (default) Short Enable F_PANEL1: Front panel connector Description Description PWR_LED+ SPKR+ SPKR PWR_LED- PWR_BTN+ SPKR- PWR_BTN- HDD_LED+ Reset+ RESET HDD_LED- Reset- Get more information: KINO-ADLPS IEI Resource Download Center 1 ...
- Page 3 Dimensions (Unit: mm) 2 ...
- Page 4 Headquarters America China IEI Integration Corp. IEI Technology USA Corp. IEI Integration (Shanghai) Corp. No. 29, ZhongXing Rd., Xizhi Dist., 138 University Parkway, Pomona, No. 515, Shen Fu Rd., Xin Zhuang Industrial Develop Zone,...
