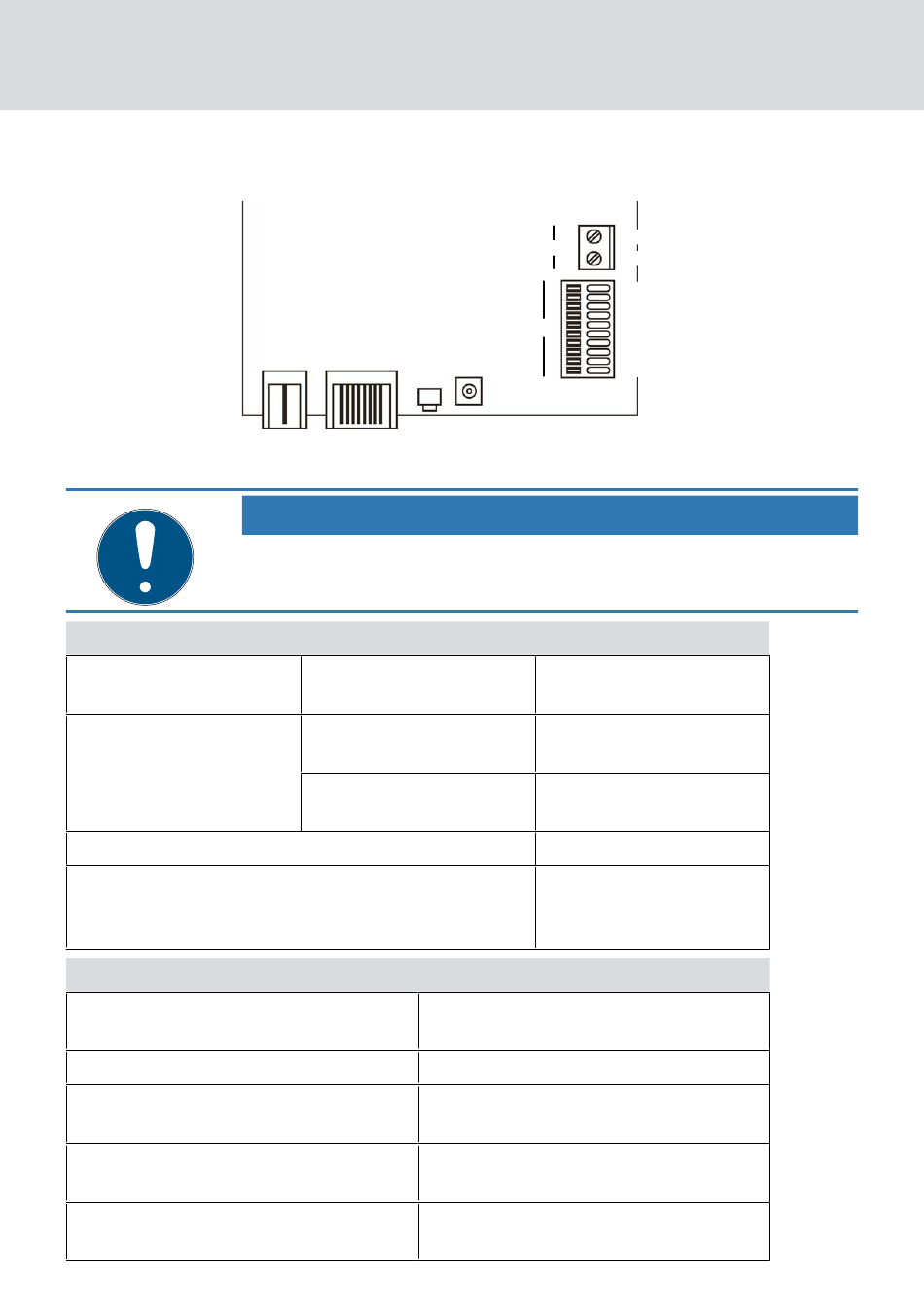

6. Connections
Connection
DC In
IO-V
out
RJ45
ANT
Connection
Analogue input
Unused
DI 3
DI 2
DI 1
DC In
RJ45
NOTE
IO connector only for RouterNode 2
You can only use the connectors of the IO connector at RouterNode 2.
Pin connector
Terminal block: GND
Terminal block: +3.3 V
IO-Vout
IO
ANT
Meaning
Power supply with round
plug connector
Auxiliary voltage output -
Earth connection
Auxiliary voltage output -
Positive pole
Network connection
Connector for external an-
tenna (see
[
15]
)
}
Meaning
Connection of an analogue signal from 0
V
to 2.5 V
.
DC
DC
Unused.
The connection of a digital signal from 0
V
to 3.3 V
.
DC
DC
The connection of a digital signal from 0
V
to 3.3 V
.
DC
DC
The connection of a digital signal from 0
V
to 3.3 V
.
DC
DC
6. Connections
GND
+ 3.3 V
Analog Input
Unused
DI 3
DI 2
DI 1
O 3
O 2
O 1.NC
O 1.NO
O 1.COM
Antenna
9 / 34
