RouterNode 2 (Manual)
Blocking/enable change to the IP address using the OAM tool
If you do not enable the ▼ OAM-Tool allow, you will not be able to use the
OAM tool to perform updates.
ü Browser interface opened.

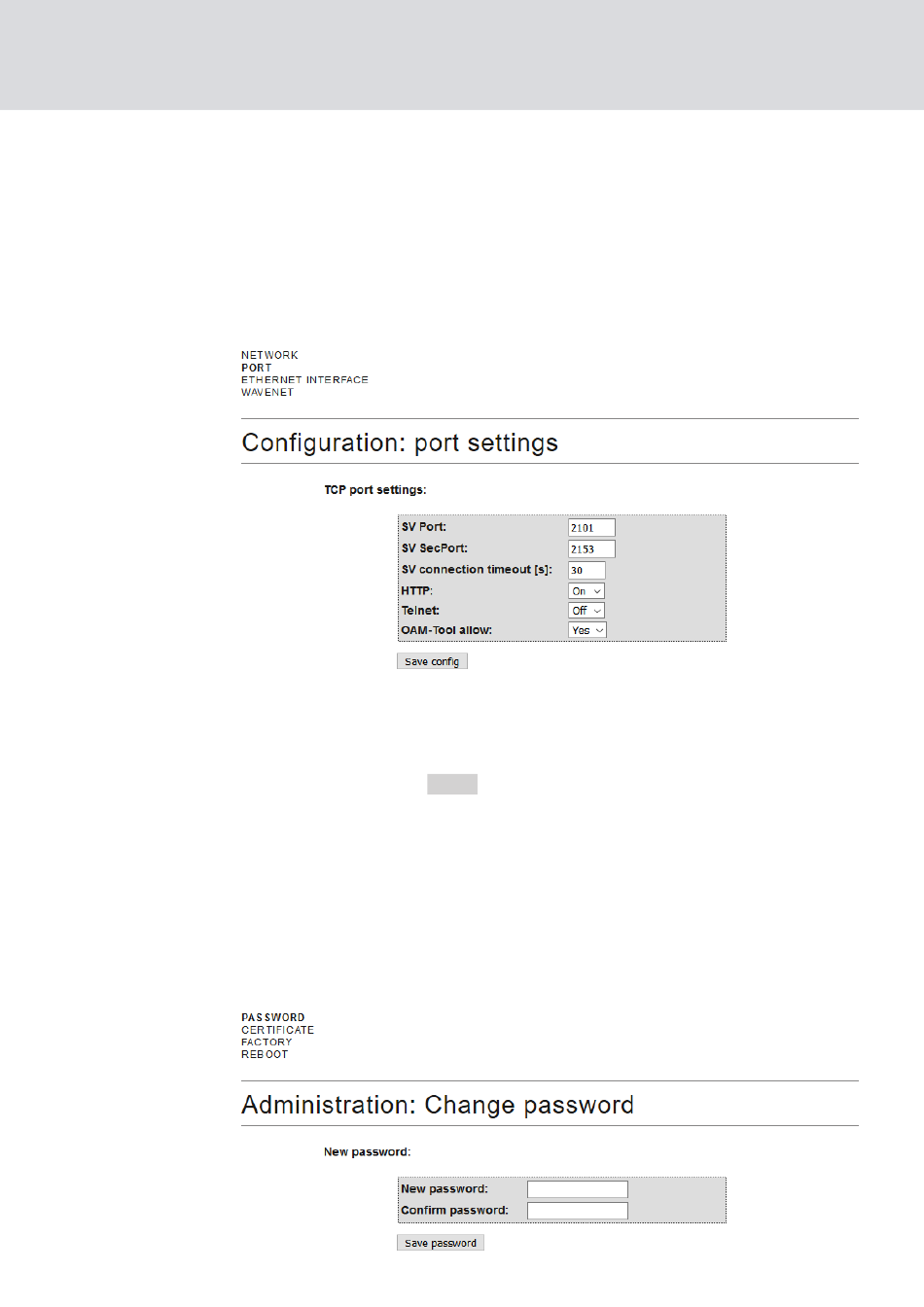

1. Open the [PORT] tab using | CONFIGURATION |.
9 You will see an overview of the TCP port settings for RouterNode 2.
2. Select the option "Yes" (enable the OAM tool to change the IP) or the
option "No" (block change to the IP by the OAM tool) from the ▼ OAM-
Tool allow drop-down menu.
3. Click on the button Save .
9 Changing the IP address using the OAM tool is locked/allowed.
Change password
Some browsers do not register any spaces included at the start of a
password, so do not begin your password with spaces.
Browser interface opened.
ü
1. Open the [PASSWORD] tab using | ADMINISTRATION |.
9. Browser interface
